NGP SLAL-250-PDKIT Aluminum Pocket Door Frame Kit, 3/0 x 7/0, 73 inch, BHMA Grade 1

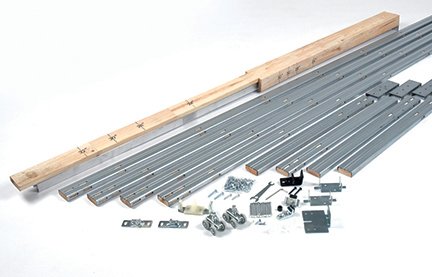

The National Guard Products SLAL-250-PDKIT is a complete aluminum pocket-door frame kit for openings up to 3/0 x 7/0 (73 inch track). NGP lists it for 4 inch wood or metal stud, doors 1-3/8 to 1-3/4 inch, up to 250 lb, ANSI/BHMA A156.14 Grade 1. Order two kits for bi-parting. NGP marks the kit patent pending.
The 4/0 x 7/0 (96 inch) pocket kit is not listed. 9/0 extensions and 2x6 wood/metal kits are later listings. SL-WG, SL-BCG, and soft-close (SC / SCBY) are separate.
Institutional Grade Features & Benefits
- Commercial Grade for 1-3/8" To 1-3/4" Doors
- For Sliding Doors up to 250 lbs. Each
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy-Duty Ball Bearing Wheels
- Meets ADA Push Force Requirements
- 5-year Warranty
- Patent Pending
- 4" Wood or Metal Stud Application
- For up to 3/0 x 7/0 Doors
- Order Two Sets for Bi-Parting Applications
- Note: For Door Sizing Refer to Installation Instruction
Standards
- ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.
Technical Details
| Model | SLAL-250-PDKIT |
| Type | Pocket door frame kit |
| Opening | Up to 3/0 x 7/0 |
| Track length | 73 inch |
| Stud | 4 inch wood or metal (NGP factory) |
| Manufacturer | National Guard Products |
| Description | Aluminum Pocket Door Frame Kit, Top Mount Track System |
| Capacity | 250 lb per door (NGP factory) |
| Lengths on this listing | 73 inch track for up to 3/0 x 7/0 |
| Finish | Mill finish aluminum track |
| Door thickness | 1-3/8 inch to 1-3/4 inch |
| Certification | ANSI/BHMA A156.14 Grade 1, 100,000 cycles (NGP factory) |
| Warranty | 5-year (NGP factory) |
Ordering and Lead Time
This listing is the 3/0 x 7/0 (73 inch) kit. Made to order. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Length | 73 Inch |
| Trackset Type | Pocket Door |
| Maximum Weight of Door | 250 Lbs |
