NGP SLAL-250-PD Aluminum Pocket Door Track Set, 250 lb, BHMA Grade 1
The National Guard Products SLAL-250-PD is a commercial aluminum pocket-door, top-mount track set for doors up to 250 lb, 1-3/8 to 1-3/4 inch thick, certified ANSI/BHMA A156.14 Grade 1. NGP says to order two sets for bi-parting. Each kit includes one mill-finish track and one universal hardware pack.
This listing is the track-and-hardware set. Complete The 3/0 x 7/0 pocket frame kit (SLAL-250-PDKIT) is a separate listing. Lengths: 48, 60, and 72 inch. 96 inch and 144 inch are not listed.
Institutional Grade Features & Benefits
- Commercial Grade for 1-3/8" To 1-3/4" Doors
- For Sliding Doors up to 250 lbs. Each
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy-Duty Ball Bearing Wheels
- Meets ADA Push Force Requirements
- 5-Year Warranty
- Track lengths on this listing: 48, 60, and 72 inch (96 and 144 inch not listed)

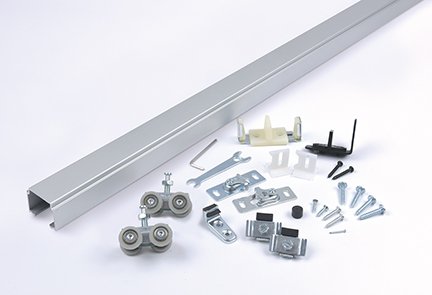

- Complete Kits Include: (1) Track - Mill Finish, (1) Universal Hardware Packs. Each Consist Of: (2) Ball Bearing Heavy Duty Hangers, (2) Snap-In Door Brackets, (2) In-Track Stops, (1) Angle Stop, (1) Bumper Stop, (1) Door Guide, Heavy Duty Floor Guides
- Order two sets for Bi-Parting applications
- Note: For Door Sizing Refer to Installation Instruction
Standards
- ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.
Technical Details
| Model | SLAL-250-PD |
| Type | Pocket door track set |
| Bi-parting | Order two sets (NGP factory) |
| Manufacturer | National Guard Products |
| Description | Aluminum Pocket Door, Top Mount Track System |
| Capacity | 250 lb per door (NGP factory) |
| Lengths on this listing | 48, 60, and 72 inch |
| Finish | Mill finish aluminum track |
| Door thickness | 1-3/8 inch to 1-3/4 inch |
| Certification | ANSI/BHMA A156.14 Grade 1, 100,000 cycles (NGP factory) |
| Warranty | 5-year (NGP factory) |
Ordering and Lead Time
Order by track length. Pocket frame kits are separate listings. Made to order. Lead time: 10-15 business days.
| Length | 48 Inch or 60 Inch or 72 Inch |
| Brand | National Guard Products |
| Trackset Type | Pocket Door |
| Maximum Weight of Door | 250 Lbs |
