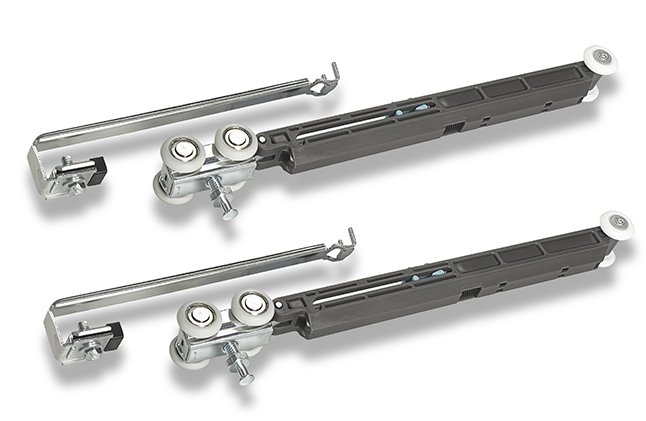

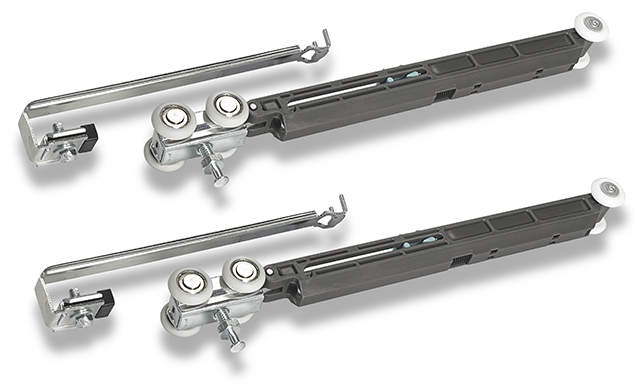

NGP SCBY Soft-Close By-Pass Set, 120 to 150 lb Doors
The National Guard Products SCBY is the soft-close / soft-open set for by-pass SLAL aluminum hardware. NGP rates it for doors 120 to 150 lb each. Minimum door width is 16 inch with one device, 31 inch with two devices for both directions on a single door. For both directions on a by-pass opening, NGP says to order two SCBY sets.
SC (single) is a separate listing. SCBY-LITE covers 65-115 lb. List is the June 2026 set price, not the factory page $/ST figure.
Institutional Grade Features & Benefits
- Designed for Doors 120 lbs. - 150 lbs.
- Minimum Door Width When Using One Soft Close Device on a Single Door is 16"
- Minimum Door Width When Using Two Soft Close Devices for Soft Close Both Directions on a Single Door is 31"
- Slows Travel of the Door to Softly Close
- For By-Pass and Bi-Parting Sliding Aluminum Hardware Sets. For Both Directions Order (2) Sets SCBY
- For Soft Close Both Directions on Sidewall and Pocket Door Applications
Standards
- ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.
Technical Details
| Model | SCBY |
| Type | Soft-close set, by-pass |
| Door weight | 120 to 150 lb each |
| Min width one device | 16 inch |
| Min width both directions | 31 inch |
| Manufacturer | National Guard Products |
| Description | Set of Two Soft-Close Aluminum Sliding Door Hardware Sets with Doors 120 lbs. - 150 lbs. Each |
| Capacity | 120 to 150 lb per door (NGP factory) |
| Lengths on this listing | n/a (hardware set) |
Ordering and Lead Time
Order SCBY as a set. Two sets for both directions on by-pass. Made to order. Lead time: 10-15 business days.
| Brand | National Guard Products |
