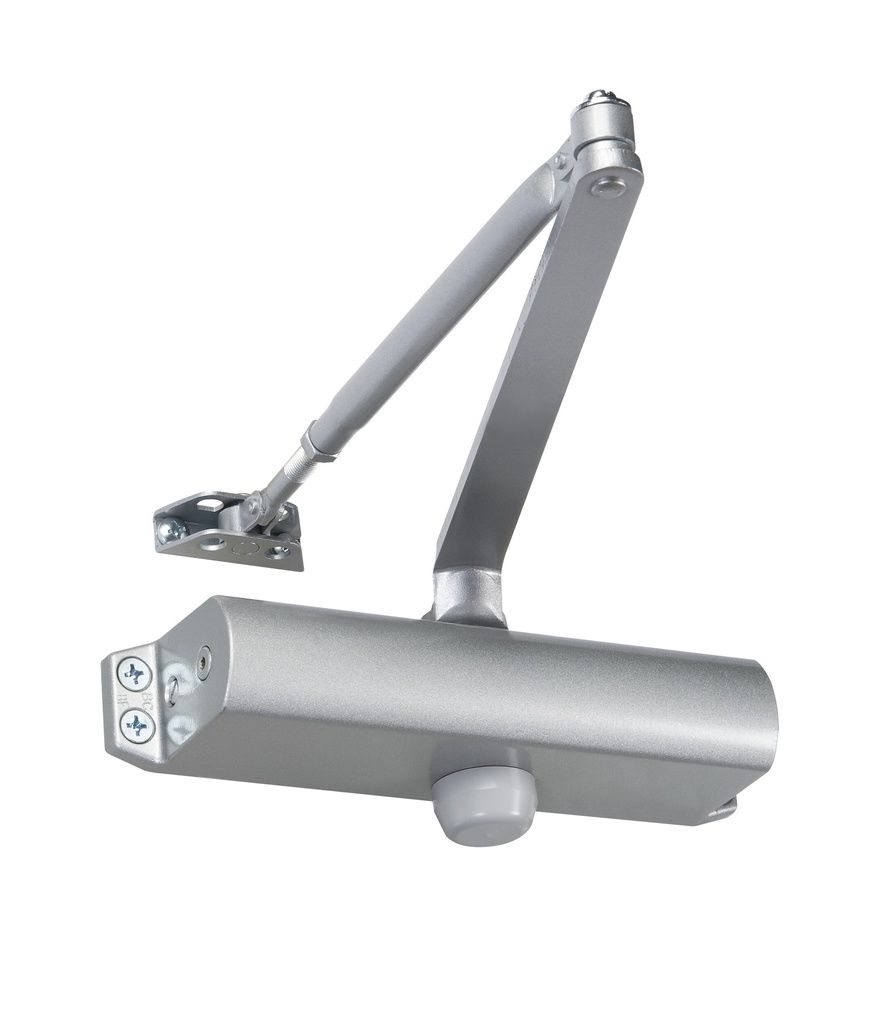

Accentra YDC204 Economy Commercial Door Closer with Backcheck — YDC200 Series, Non-Hold Open

The Accentra YDC204 (formerly Yale Security) is a surface-mounted, hydraulic commercial door closer from the YDC200 Series — an economy-grade unit built for light to medium commercial applications where reliable, consistent door control is needed without the cost of a premium closer. The YDC204 is the backcheck-equipped model in the YDC200 line, making it the right choice for openings exposed to wind, heavy-handed users, or forced-open conditions that can damage the door, frame, or adjacent wall. It ships as a convenient tri-pack with Regular Arm, Parallel Arm, and Top Jamb mounting hardware included, so installers can adapt to virtually any door configuration without sourcing additional brackets.

Key Features & Benefits

• Backcheck Valve: Cushions the door as it approaches full open, protecting the door, frame, and surrounding walls from impact damage caused by wind or forced opening — a critical feature in exterior and high-traffic openings.
• Adjustable Spring Power (Sizes 1–4): Field-adjustable closing force accommodates a range of door widths and weights without requiring a separate closer model — ideal for installers stocking one SKU across multiple openings.
• Non-Hold Open Configuration: Door returns to the closed and latched position on every cycle — suitable for fire-corridor doors, secured areas, and applications requiring positive latching.
• Tri-Pack Arm Mounting: Ships with Regular Arm, Parallel Arm, and Top Jamb arm hardware in the box, providing full mounting flexibility for standard frames, narrow frames, and push-side applications without additional accessory orders.
• Surface-Mounted Installation: Mounts on the door face or frame face (depending on arm type) — no mortising or special door prep required, keeping labor time low and retrofit installations straightforward.
• Two Standard Finishes: Available in 689 Aluminum and 690 Dark Bronze to coordinate with common commercial door and frame finishes.
• Formerly Yale Security: The Accentra brand (now part of ASSA ABLOY) carries forward the Yale commercial door closer legacy — buyers searching for a Yale commercial door closer in the YDC200 family will find the YDC204 is the current equivalent product.

Typical Applications

• Light commercial office and retail interior doors
• Exterior doors subject to wind load or forced-open conditions
• Retrofit replacements for economy-class surface closers
• Schools, multi-family, and light institutional openings where budget and reliable door control are both priorities
• Push-side and pull-side installations requiring a single adaptable closer package
