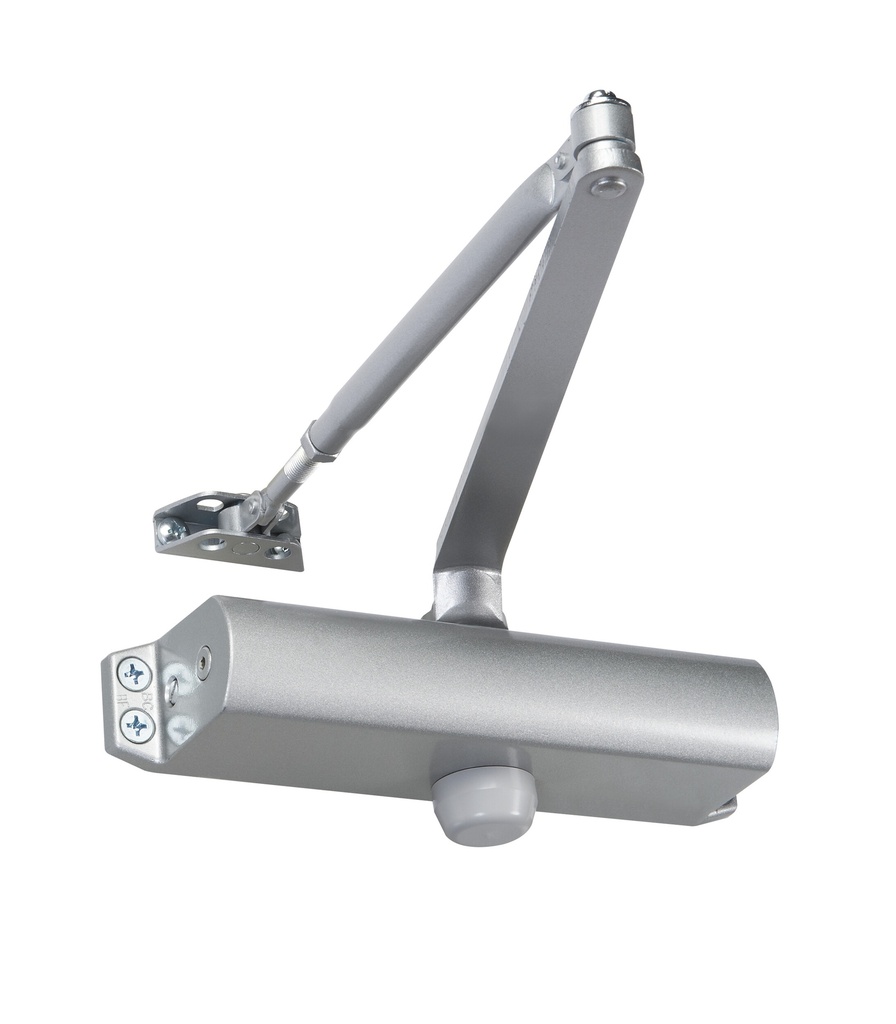

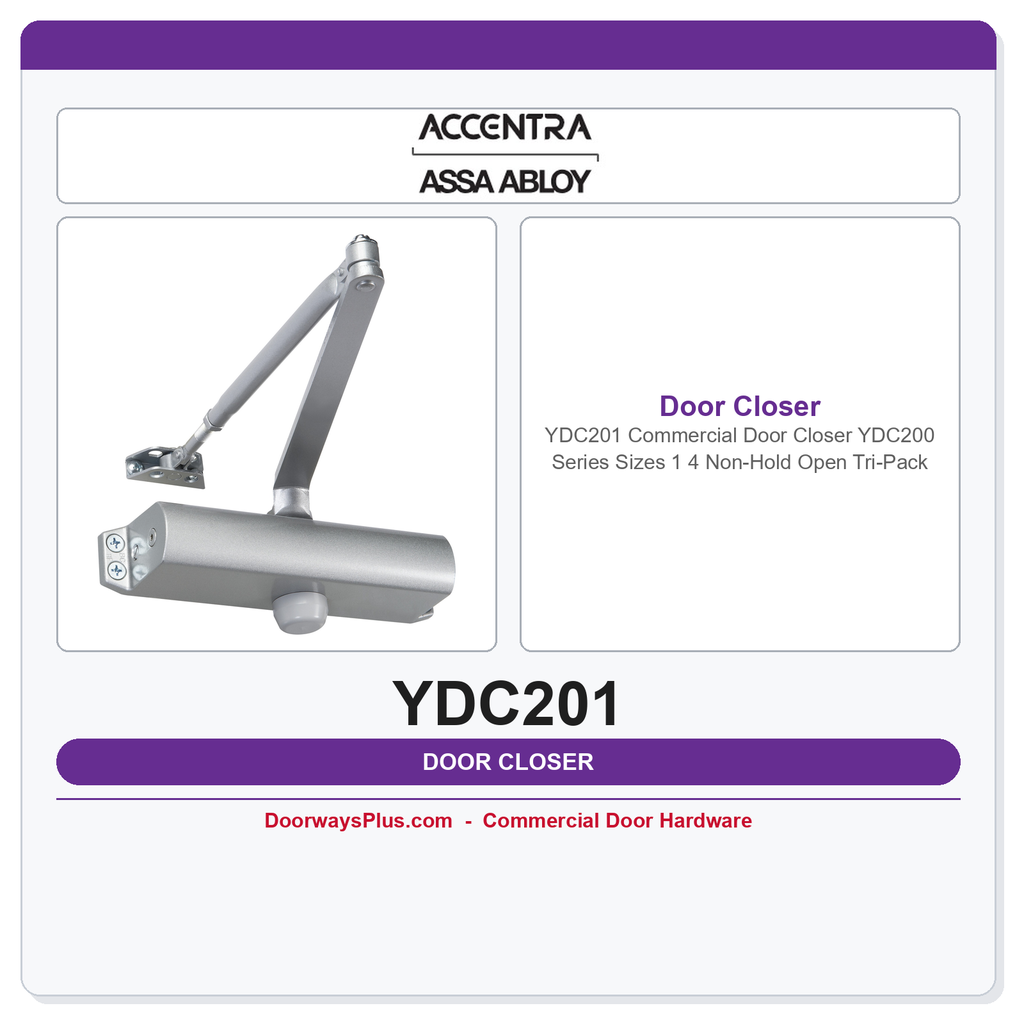

Accentra YDC201 Economy Commercial Door Closer — YDC200 Series, Sizes 1–4, Non-Hold Open
The Accentra YDC201 (formerly Yale Security) is the economy-grade surface-mount commercial door closer in the YDC200 Series. Designed for light-to-medium commercial traffic, this rack-and-pinion hydraulic closer delivers reliable, code-compliant door control at a budget-conscious price point. The YDC201 ships as a tri-pack — including Regular Arm, Parallel Arm, and Top Jamb mounting hardware in a single box — giving installers and facility managers maximum mounting flexibility right out of the package without ordering separate brackets.
Accentra is the current brand name for what was formerly marketed under the Yale Security label. Buyers searching for the Yale commercial door closer in the YDC200 line will find the YDC201 is the direct continuation of that product under ASSA ABLOY's Accentra brand.
Key Features & Benefits
- Tri-Pack Mounting Versatility: Includes Regular Arm (pull-side), Parallel Arm (push-side), and Top Jamb arm hardware — all three configurations in one package, eliminating the need for separate bracket orders on mixed projects.
- Adjustable Spring Power Sizes 1–4: Field-adjustable closing force covers a wide range of door weights and widths, making the YDC201 suitable for interior office, corridor, and light-duty commercial openings.
- Rack-and-Pinion Hydraulic Operation: Proven hydraulic mechanism provides smooth, controlled sweep and positive latching action with adjustable sweep and latch speed valves.
- Non-Hold Open Configuration: Doors return to the closed and latched position on every cycle — appropriate for fire-rated corridor doors and openings where code requires positive latching.
- Standard Finish Availability: Offered in 689 Aluminum and 690 Dark Bronze — two of the most specified architectural finishes for commercial and institutional projects.
- Economy Price Point: Engineered as the value option in the YDC200 family, making it well-suited for high-volume projects, tenant improvement work, and budget-driven specifications.
Typical Applications
- Interior commercial corridor and office doors
- Light-duty institutional doors (schools, clinics, retail) li>Replacement closer upgrades on hollow metal and wood commercial doors
- Multi-door projects where budget and versatility are primary drivers
Technical Details
| Feature | Details |
|---|---|
| Model Number | YDC201 |
| Series | YDC200 |
| Brand | Accentra (formerly Yale Security) |
| Part Type | Surface-Mount Door Closer |
| Operation | Rack-and-Pinion Hydraulic |
| Spring Power Sizes | Adjustable Sizes 1 through 4 |
| Hold Open | Non-Hold Open |
| Mounting Arms Included | Regular Arm, Parallel Arm, Top Jamb (tri-pack) |
| Standard Finishes | 689 Aluminum, 690 Dark Bronze |
| Door Application | Light-to-Medium Commercial |
| Installation Reference | ASSA ABLOY Accentra Doc No. AADSS1089519 |
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - YDC200 Series |
| Hold Open | Non-Hold Open |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
