NGP GAP90-ME GapGuard Fire Door Meeting Edge and Perimeter Gap Solution | Gray Primer

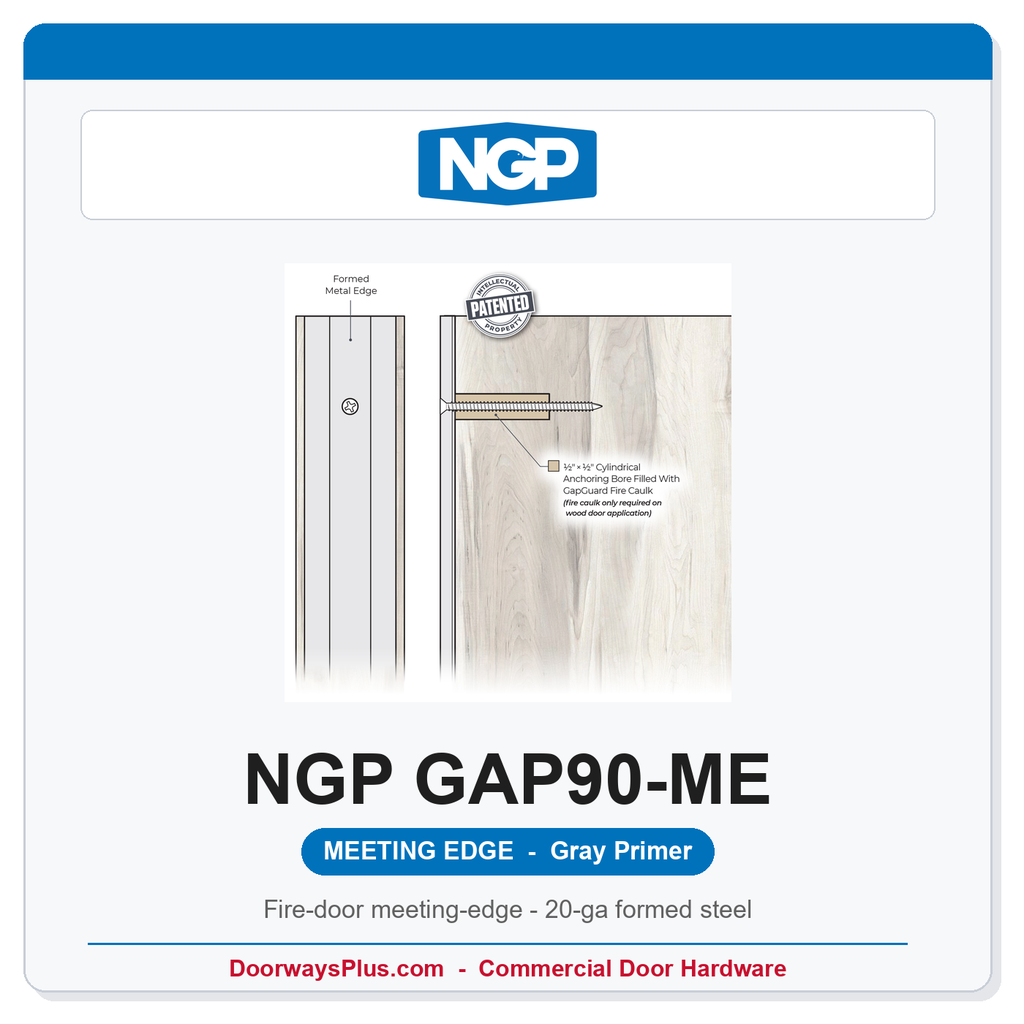

The National Guard Products GAP90-ME is the GapGuard meeting-edge and perimeter gap solution for wood and hollow metal fire doors. NGP lists it as Meeting Edge and Perimeter Gap Solution - Wood & Hollow Metal. Catalog GAP8 kit is a 20-gauge formed metal edge (powder-coated primer gray, embossed UL mark), #10 TEK and #10 x 2-1/2 inch SMS, and GapGuard Fire Caulk for wood-door applications. It closes excessive clearance up to 3/8 inch. Door removal is not required. Vertical-rod exit devices and flush bolts are a certified application as printed by NGP.
Sold as an 84 inch stick on this listing. Head-and-jamb GAP90 and top-gap 9990 are separate listings. Fire caulk is required on wood to retain the UL listing as printed on GAP8.
Product Features
- Application Certified for Fire Doors and Frames with Excessive Clearance up to 3/8"
- Application Certified for Fire-Rated Hollow Metal Doors, Frames and Wood Doors with Excessive Clearances up to 3/8"
- Non-Handed
- Certified for Use on Doors with Surface/Concealed Vertical Rod Exit Devices or Manual/Automatic Flush Bolts (see Installation Instructions)
- Door Removal Not Required
- Can be Field-Modified to Match-Fit Varying Gaps Along Height or Width of the Door (see installation instructions)
- Patented: US Patent US 11,885,175 B2
- Standard stick on this listing: 84 inch
- Certified for use in US and Canada
- Product consists of: Formed Metal Edge, 20-Gauge Steel, Embossed With UL Mark
- Hardware pack: #10 TEK and #10 x 2-1/2" SMS; GapGuard Fire Caulk required on wood (catalog GAP8)
- Finish: Primer Gray, Powder Coat
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive gap at meeting edge of pairs of doors, measuring up to 3/8".
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/10C, complies with IBC, NFPA 80 and NFPA 252 for applications to Hollow Metal and Wood fire doors rated up to 90 minute with excessive gap at meeting edge of pairs of doors, measuring up to 3/8".
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP GAP90-ME |
| Type | GapGuard meeting-edge and perimeter formed metal edge |
| Manufacturer | National Guard Products |
| Factory subtitle | Meeting Edge and Perimeter Gap Solution - Wood & Hollow Metal |
| Kit includes | 20-gauge formed metal edge, TEK and SMS pack, GapGuard Fire Caulk (wood) |
| Finish on this listing | Primer gray, powder coat |
| Gap range | Up to 3/8 inch |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed); 90-minute as printed on GAP8 |
| Fasteners | #10 TEK and #10 x 2-1/2" SMS |
| NGP kit lengths on this listing | 84 Inch |
| Patent | US 11,885,175 B2 (printed by NGP) |
| Related | Strike shims 9275 or 9225 may be required for latchbolt engagement. |
Ordering and Lead Time
Order the 84 inch stick. This listing is GAP90-ME primer gray. Made to order. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Housing Finish | Gray Primer |
| Housing Size | 20-gauge formed metal edge |
| Fasteners | #10 TEK and #10 x 2-1/2" SMS |
| Kit Includes | formed edge + hardware pack + fire caulk (wood) |
| Fire Rated | Fire Rated |
| Gasketing Set Size | 84 Inch |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
