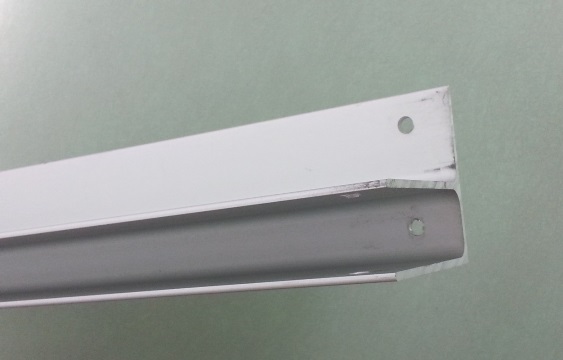

Hadrian 520357 Continuous Aluminum F-Channel | 55" Partition Wall-Mount Bracket

The Hadrian 520357 Continuous Aluminum F-Channel is a heavy-duty architectural mounting component designed to provide maximum vertical stability for commercial restroom systems. With a net length of 54-1/2", this specialized F-bracket is engineered to secure 1-inch thick panels or pilasters directly to a wall or pilaster face. It is most commonly utilized as a high-strength mounting solution for solid plastic toilet partitions (HDPE), where the weight and expansion of the material require a continuous, rigid anchor point.

Unlike standard U-channels, the "F" configuration features an extended mounting flange, providing an overall width of 2-3/4" for superior leverage and anchoring surface area. This makes it an ideal solution for door security and partition rigidity in high-traffic restrooms. It serves as a permanent solution for door edge reinforcement by distributing the stress of swinging doors along the entire length of the panel.

Key Features & Performance

• Full-Height Structural Support: The 55-inch vertical span eliminates "panel sway" and prevents warping, serving as a superior solution for door restoration when repairing sagging or loose partition walls.
• Precision 1" Channel: Features a specific inside width of 1", providing a secure, glove-like fit for 1-inch thick solid plastic or high-pressure laminate panels.

• Extended 2-3/4" Projection: The deep projection offers excellent coverage and adjustment range, making it the perfect solution for door surface repair where walls are uneven or out of plumb.

• Industrial Extruded Aluminum: Manufactured from high-grade aluminum for maximum corrosion resistance in high-moisture restroom environments.
• Factory Pre-Drilled: Comes pre-drilled at 13-1/4" on center, ensuring a uniform, professional installation that acts as a structural remodeling scar plate to hide previous mounting holes on the wall.


Technical Details & Specifications

• Brand: Hadrian
• Model Number: 520357
• Material: Heavy-Duty Extruded Aluminum
• Net Length: 54-1/2" (Standard 55" nominal)
• Inside Width: 1" (For 1" thick panels/pilasters)

• Overall Width: 2-3/4" (Including mounting flange)

• Projection: 2-3/4"
• Fastener Pattern: Pre-drilled at 13-1/4" increments

• Compatibility: Specifically designed for Solid Plastic (HDPE) and 1" Thick Metal Partitions

• Installation: Fasteners are not included. To prevent vandalism and ensure a permanent bond, the use of thru bolts is highly recommended for securing the panel within the channel.

Why Choose the Hadrian 520357?

The Hadrian 520357 is the professional’s choice for heavy-use public facilities. While standard ear brackets can pull out of the wall over time, this continuous aluminum F-channel provides a permanent and aesthetically pleasing solution for door restoration. It offers the industrial-strength security and clean architectural lines required for schools, stadiums, and high-frequency transit hubs.

​
