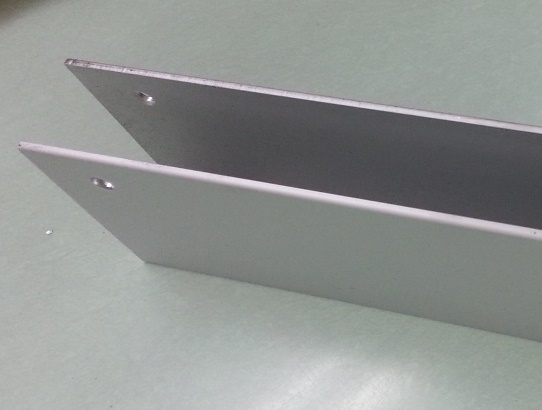

Hadrian 520257 Continuous Aluminum U-Channel | 55" Heavy-Duty Partition Bracket

The Hadrian 520257 Continuous Aluminum U-Channel is an industrial-grade mounting solution designed for the maximum stability of commercial restroom systems. Measuring a net length of 54-1/2", this continuous partition bracket provides full-height support for 1-inch thick panels or pilasters. It is most commonly utilized as a high-strength mounting solution for solid plastic toilet partitions (HDPE), where the weight of the material requires a more robust anchor than standard ear brackets can provide.

By distributing the load along the entire height of the panel, the 520257 acts as a critical solution for door security and partition rigidity. It eliminates the gaps found with traditional bracket "clips," providing a tamper-resistant and private finish. This heavy-duty aluminum channel is the premier choice for high-traffic environments like stadiums, schools, and transit hubs that demand a permanent solution for door edge reinforcement and panel stability.

Key Features & Performance

• Continuous Structural Support: The 55-inch vertical span prevents panel warping and movement, serving as a superior solution for door restoration when repairing loose or sagging partition walls.
• Precision 1" Fit: With an inside width of 1" and an overall width of 1-1/4", it provides a glove-like fit for 1-inch thick solid plastic or metal-clad panels.

• Extra Deep 2-3/4" Projection: The extended projection allows for significant adjustment during installation, making it the perfect solution for door surface repair when walls are out of plumb.

• Factory Pre-Drilled: Comes pre-drilled at 13-1/4" on center, ensuring a fast, uniform installation while maintaining the structural integrity of the extruded aluminum frame.

• Vandal-Resistant Design: The "U" configuration creates a seamless transition from wall to panel, acting as a structural remodeling scar plate that hides installation marks and prevents prying.

Technical Details & Specifications

• Brand: Hadrian
• Model Number: 520257
• Material: Heavy-Duty Extruded Aluminum
• Net Length: 54-1/2" (Standard 55" nominal)
• Inside Width: 1" (For 1" thick panels)
• Projection: 2-3/4"
• Fastener Pattern: Pre-drilled at 13-1/4" increments

• Compatibility: Ideal for Solid Plastic (HDPE) and 1" Thick Metal Partitions

• Installation: Fasteners are not included. For maximum pull-out resistance in high-vandalism areas, the use of thru bolts is highly recommended to secure the panel within the channel.

Why Choose the Hadrian 520257?

The Hadrian 520257 is the "gold standard" for professional partition installers. While individual brackets can fail over time under the stress of heavy doors, this continuous aluminum U-channel provides a permanent and aesthetically pleasing solution for door restoration. It offers the industrial-strength security and polished, clean lines required for modern, high-durability commercial restroom facilities.

​
