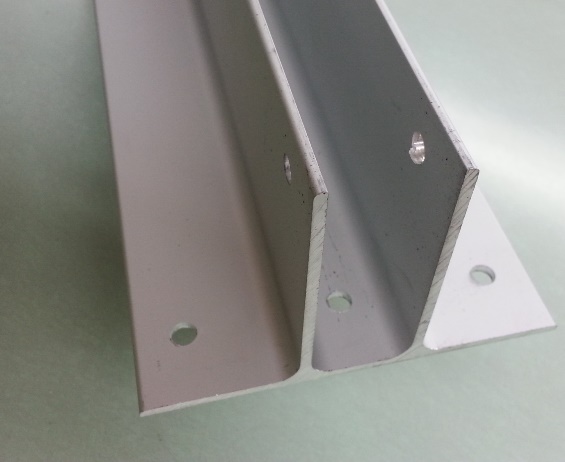

Hadrian 520457 Continuous Aluminum T-Channel | 55" Heavy-Duty Partition Bracket

The Hadrian 520457 Continuous Aluminum T-Channel is an industrial-strength mounting component designed for the most demanding commercial restroom configurations. With a net length of 54-1/2", this specialized T-bracket is engineered to provide a rock-solid connection for 1-inch thick panels or pilasters that intersect at a 90-degree angle. It is the definitive mounting solution for solid plastic toilet partitions (HDPE), where a continuous anchor is necessary to manage the significant weight and physical stress of high-traffic stall dividers.

By utilizing a wide-flange "T" design, the 520457 offers an overall width of 4-1/4", distributing the structural load across a massive surface area. This configuration provides a permanent solution for door security and partition stability, acting as a structural backbone that prevents panels from shifting, rattling, or pulling away from their mounting points.

Key Features & Performance

• Full-Height Reinforcement: The 55-inch vertical span eliminates "mid-panel flex," providing a superior solution for door restoration when repairing wobbly or misaligned restroom stalls.
• Precision 1" Channel: Specifically sized with an inside width of 1", ensuring a tight, high-friction fit for 1-inch thick solid plastic or metal-clad partition components.

• Massive 4-1/4" Mounting Base: The wide T-flange provides maximum leverage and anchoring surface area, making it the premier solution for door edge reinforcement in environments prone to vandalism or heavy use.
• Industrial Extruded Aluminum: Manufactured from high-grade aluminum for lifetime resistance to corrosion, even in high-moisture environments like locker rooms and aquatic centers.
• Factory Pre-Drilled: Comes pre-drilled at 13-1/4" on center, allowing for a fast and symmetrical installation that serves as a durable remodeling scar plate to cover previous drill marks or damage.


Technical Details & Specifications

• Brand: Hadrian
• Model Number: 520457
• Material: Heavy-Duty Extruded Aluminum
• Net Length: 54-1/2" (Standard 55" nominal)
• Inside Width: 1" (For 1" thick panels/pilasters)

• Overall Width: 4-1/4" (T-Flange Width)

• Projection: 2-3/4"
• Fastener Pattern: Pre-drilled at 13-1/4" increments

• Compatibility: Ideal for Solid Plastic (HDPE) and 1" Thick Metal Partitions

• Installation: Fasteners are not included. To achieve the highest rating for tamper resistance, the use of thru bolts is recommended for securing the partition panel within the aluminum channel.

Why Choose the Hadrian 520457?

The Hadrian 520457 is the engineer's choice for "unbreakable" restroom construction. While standard corner brackets are vulnerable to prying and fatigue, this continuous aluminum T-channel creates a unified structural assembly. It is an essential and permanent solution for door restoration, delivering the industrial-grade reliability and clean, professional aesthetic required for stadiums, airports, and public parks.

​
