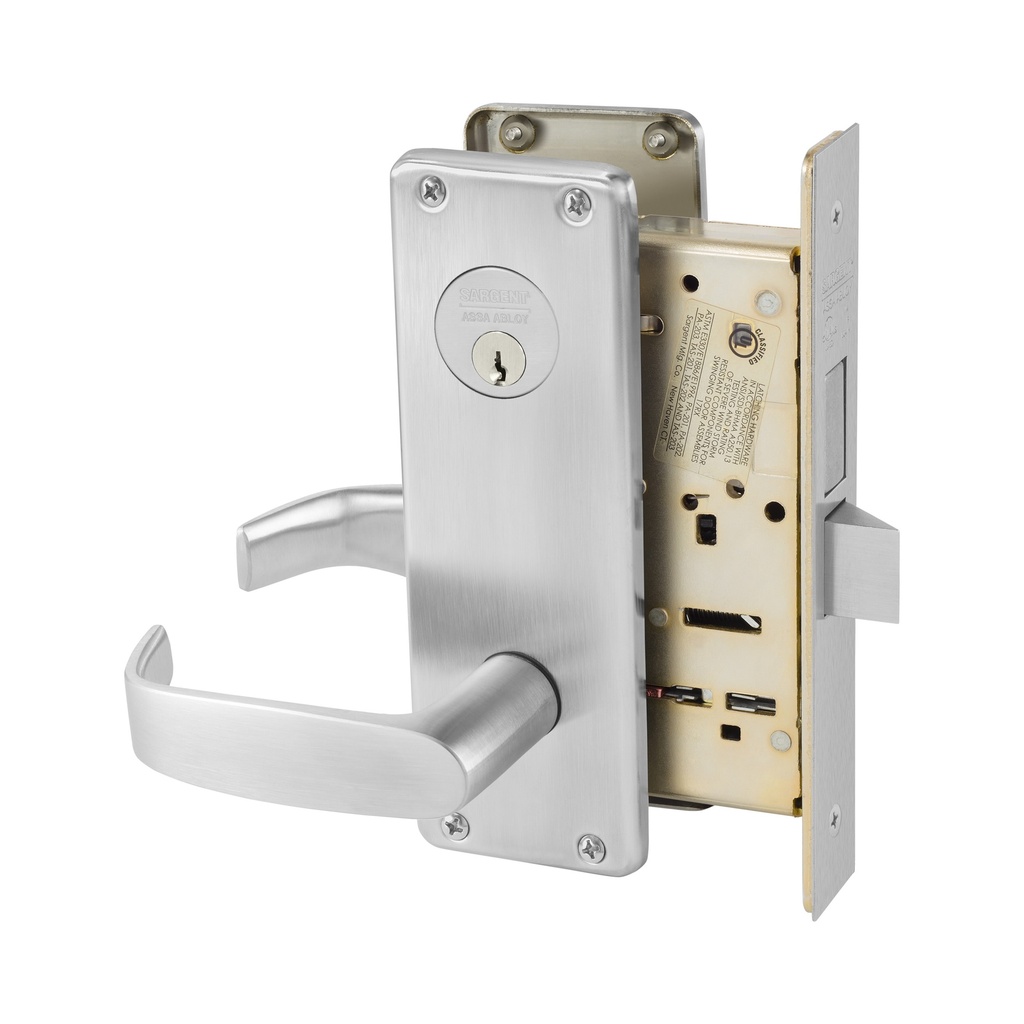

Sargent 8225 WTL Dormitory Function Mortise Lockset - LA Keyway
The Sargent 8225 WTL is an industrial-grade ANSI/BHMA Grade 1 Mortise Lockset specifically engineered for the high-frequency demands of university housing, military barracks, and multi-family residential facilities. As a part of the legendary Sargent 8200 Series, it is widely recognized as the industry’s most durable mortise lock, far exceeding ANSI/BHMA A156.13 standards for cycle life and physical security. The 8225 Dormitory or Exit Function (ANSI F13) provides a comprehensive locking solution that combines a heavy-duty deadbolt with automatic interior unlocking, ensuring absolute occupant safety and intuitive operation.
Advanced Dormitory & Exit Function (ANSI F13)
The 8225 function is designed to provide residents with a secure "home-base" environment while meeting the most stringent life-safety and fire codes for rapid egress.
- Deadbolt Privacy & Security: A 1" throw hardened stainless steel deadbolt is projected or retracted by a key from the exterior or a thumbturn from the interior.
- Intelligent Exterior Locking: When the deadbolt is projected, the exterior lever is automatically locked, preventing unauthorized entry.
- Keyed Latch & Bolt Retraction: From the outside, a physical key retracts both the latchbolt and the deadbolt simultaneously, providing a smooth entry for authorized users.
- Single-Motion Life-Safety Egress: Regardless of the deadbolt's position, the inside lever retracts both the latchbolt and the deadbolt simultaneously. This ensures occupants can exit the room instantly with a single motion, fulfilling NFPA 101 and ADA requirements.
Heavy-Duty WTL Escutcheon Trim
The WTL trim configuration (WT Escutcheon with L Lever) delivers a sophisticated linear architectural aesthetic backed by extreme mechanical reinforcement.
- WT Escutcheon Plate: This heavy-duty wrought metal escutcheon reinforces the door face and protects the Sargent LA Keyway cylinder and thumbturn from tampering or vandalism.
- L Lever Design: The L Lever features a clean, modern profile that is fully ADA compliant, requiring only 30° of rotation for latch retraction—ideal for users with limited mobility.
- Exceeds 14 Million Cycles: Independently verified to withstand 14 times the cycle requirements for Grade 1 certification, ensuring this hardware will outlast the building it is installed in.
- Anti-Sag Engineering: High-carbon steel spring cartridges and cold-forged steel hubs ensure the L Lever remains perfectly horizontal, maintaining a professional look even after decades of high-traffic use.
Key Product Features
- ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical performance, physical security, and operational longevity.
- Dormitory/Exit Function (F13): Integrated deadbolt for privacy and single-motion egress for life safety.
- Sargent LA Keyway: Ships with a 6-pin brass cylinder in the standard LA Keyway, allowing for seamless integration into existing master key systems.
- Fire-Rated Integrity: UL/cUL Listed for use on 3-hour fire-rated doors, essential for corridor-facing residential units.
- Vandal-Resistant Chassis: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
- Universal Handing: The non-handed chassis is easily field-reversible to accommodate any door swing.
Technical Specifications
| Feature | Details |
| Function | 25 Dormitory / Exit (ANSI F13) |
| Series | 8200 Heavy-Duty Mortise |
| Trim Style | WTL (WT Escutcheon / L Lever) |
| Deadbolt | 1" Throw Hardened Stainless Steel |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Cylinder | 6-Pin Brass, LA Keyway |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8225 WTL is designed for efficient installation into standard mortise door preparations. The through-bolted lever trim ensures the lock remains securely fastened even under heavy abuse. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F12 - Dormitory |
| Trim Design | WTL |
| Series | Sargent - 8200 Series |
