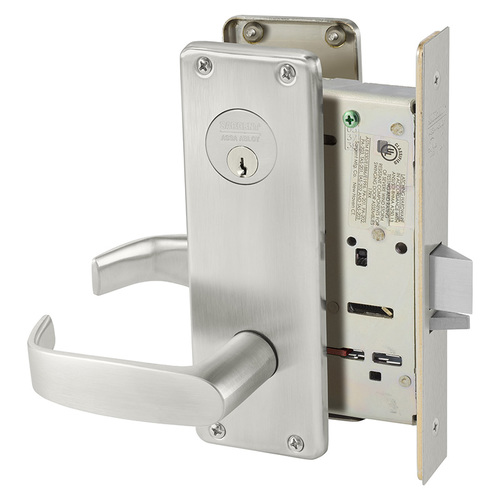

Sargent 8204 WTL Storeroom Function Mortise Lockset - LA Keyway
The Sargent 8204 WTL is a heavy-duty Grade 1 Mortise Lockset specifically designed for high-security storage areas, mechanical rooms, and any sensitive space requiring permanent restricted access. As part of the legendary Sargent 8200 Series, it is widely considered the industry benchmark for structural integrity and cycle life, far surpassing ANSI/BHMA A156.13 Series 1000 standards. The 8204 Storeroom or Closet Function (ANSI F07) ensures that the exterior is always secure, requiring a key for every entry while maintaining absolute safety for anyone inside.
Essential Storeroom Security (ANSI F07)
The 8204 function provides a high-intent security protocol where the door cannot be left unlocked by mistake. It is the primary choice for "back-of-house" security in schools, hospitals, and commercial offices.
- Always-Locked Exterior: The outside lever is rigid at all times. Entry can only be gained by using a physical key to retract the latchbolt.
- Automatic Re-Locking: Once the key is removed, the door is instantly secure. There is no toggle or button that could accidentally leave the room vulnerable.
- Fail-Safe Interior Egress: For critical life safety, the inside lever is always free. Occupants can exit the room instantly at any time, meeting all NFPA 101 and ADA accessibility requirements.
- Auxiliary Deadlatch: Features a stainless steel deadlocking latch that prevents "shimming" or unauthorized manipulation of the latchbolt when the door is closed.
Professional WTL Escutcheon Trim
The WTL trim configuration (WT Escutcheon with L Lever) offers a clean, linear architectural aesthetic paired with industrial-strength protection for the door and the lock body.
- WT Escutcheon Plate: This heavy-duty, wrought-metal escutcheon provides a robust mounting surface that reinforces the door face and protects the LA Keyway cylinder from tampering, physical abuse, or vandalism.
- L Lever Design: The L Lever features a modern, sleek profile that is fully ADA compliant. It allows for effortless operation with only 30° of rotation required to retract the latchbolt.
- Unmatched Durability: The Sargent 8200 Series is independently verified to exceed 14 million cycles—14 times the requirement for Grade 1 certification—ensuring the lowest total cost of ownership in the industry.
- Anti-Sag Engineering: High-carbon steel spring cartridges and cold-forged steel hubs ensure the L Lever remains perfectly horizontal, preventing "lever sag" even in the most high-frequency environments.
Key Product Features
- ANSI/BHMA Grade 1 & Security Grade 1: The highest possible rating for mechanical performance and resistance to physical attack.
- Storeroom Function (F07): Permanent exterior locking for guaranteed security of sensitive areas.
- Sargent LA Keyway: Ships with a standard LA Keyway 6-pin brass cylinder, compatible with existing Sargent master key systems.
- Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, essential for utility rooms and storage closets in corridor applications.
- Vandal-Resistant: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
- Field Reversible: The non-handed chassis is easily adapted to any door swing during installation.
Technical Specifications
| Feature | Details |
| Function | 04 Storeroom / Closet (ANSI F07) |
| Series | 8200 Heavy-Duty Mortise |
| Trim Style | WTL (WT Escutcheon / L Lever) |
| Cylinder | 6-Pin Brass, LA Keyway |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Backset | 2-3/4" (Standard for Mortise Locks) |
| Warranty | 10-Year Mechanical Limited Warranty |
Ordering & Installation Information
The Sargent 8204 WTL is designed for precision fitment in standard commercial door preparations. The through-bolted lever trim ensures the lock remains securely fastened even under heavy abuse. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Sargent Keyways | LC - Less Cylinder or LA Keyway or 60 - LFIC less Core or 70 - SFIC less Core |
| Brand | Sargent |
| ANSI Mortise Lock Function | F07 - Storeroom |
| Trim Design | WTL |
| Series | Sargent - 8200 Series |
