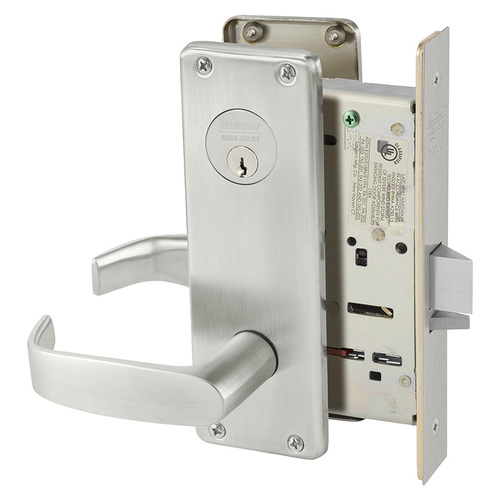

Sargent 8237 WTL Classroom Function Mortise Lockset - LA Keyway

The Sargent 8237 WTL is a premier Grade 1 Heavy-Duty Mortise Lockset specifically engineered for the high-frequency demands of K-12 schools, universities, and administrative offices. As a flagship model in the Sargent 8200 Series, it is recognized as the "strongest lock on the block," far exceeding ANSI/BHMA A156.13 standards for physical security and mechanical longevity. The 8237 Classroom Function (ANSI F05) is a critical security component, allowing faculty to control exterior access while ensuring students and staff always have an immediate, safe path of egress.

Critical Classroom Security (ANSI F05)

The 8237 function is designed to provide robust perimeter control, ensuring that authority over the room's locking status remains strictly with keyholders.

• Key-Controlled Exterior: The outside lever is locked or unlocked by a physical key using the standard Sargent LA Keyway. When locked, the outside lever remains rigid to prevent unauthorized entry.

• Constant Life-Safety Egress: Regardless of whether the outside is locked, the inside lever is always operative. This provides a fail-safe exit during emergencies, fully complying with NFPA 101 Life Safety and ADA accessibility codes.

• Deadlocking Latchbolt: Equipped with a stainless steel auxiliary deadlatch that prevents "shimming" or unauthorized manipulation of the latch when the door is closed.

• Low-Force Operation: Requires only 30° of lever rotation to retract the latchbolt, reducing mechanical wear and making it easy for all users to operate.


Professional WTL Escutcheon Trim

The WTL trim configuration (WT Escutcheon with L Lever) delivers a sophisticated linear architectural aesthetic backed by extreme mechanical reinforcement.

• WT Escutcheon Plate: This heavy-duty wrought metal escutcheon provides a robust mounting surface that reinforces the door face and protects the LA Keyway cylinder from tampering, physical abuse, or vandalism.

• L Lever Design: The L Lever features a clean, modern profile that is fully ADA compliant. Its ergonomic shape allows for effortless operation without requiring a tight grip, pinch, or wrist twist.

• Exceeds 14 Million Cycles: Independently verified to withstand over 14 times the cycle requirements for Grade 1 certification, ensuring this hardware will outlast the building it serves.

• Anti-Sag Technology: High-carbon steel spring cartridges and cold-forged steel hubs ensure the L Lever remains perfectly horizontal, maintaining a professional appearance even after decades of high-traffic use.

Key Product Features

• ANSI/BHMA Grade 1 Certified: The highest industry rating for mechanical performance, physical security, and operational longevity.
• Classroom Function (F05): Key-controlled exterior with a fail-safe free-egress interior.

• Sargent LA Keyway: Ships with a 6-pin brass cylinder in the popular LA Keyway, allowing for seamless integration into existing master key systems.

• Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, a mandatory requirement for classroom and corridor safety.

• Vandal-Resistant Chassis: Built on a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
• Universal Handing: The non-handed chassis is easily field-reversible to accommodate any door swing without opening the lock case.

Technical Specifications

Ordering & Installation Information

The Sargent 8237 WTL is designed for efficient installation into standard mortise door preparations. The through-bolted lever trim ensures the lock remains securely fastened even under heavy abuse. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso.
