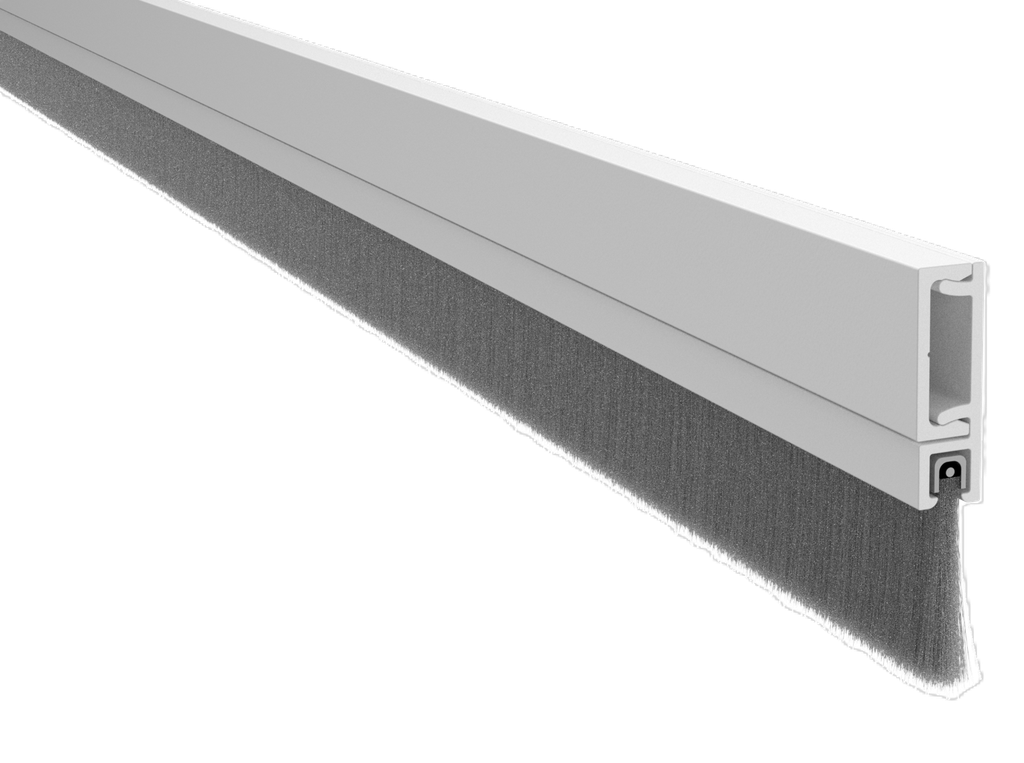

Pemko 29326CNB Nylon Brush Sill Sweep with Concealed Snap Cover
The Pemko 29326CNB is a high-performance Nylon Brush Door Bottom Sweep designed for both commercial and residential applications where aesthetics and durability are top priorities. This unique model features a 180-degree aluminum retainer equipped with a decorative Snap-On Cover. This cover completely conceals the mounting screws, providing a sleek, "hardware-free" appearance while simultaneously deterring vandalism and tampering.
High-Performance & Aesthetic Features
- Concealed Fastener Design: The aluminum snap cover eliminates visible screw heads, creating a clean, professional finish on hollow metal or wood doors.
- Dense Nylon Brush Seal: Features a 5/8" (0.625") dense Type 6 nylon bristle insert that conforms to irregular floor surfaces and thresholds with minimal closing force.
- Extreme Temperature Resilience: The high-quality nylon brush remains flexible down to -40°F and has a melting point above 400°F, making it suitable for any climate.
- Safety & Air Quality: UL 10C Fire Rated and Smoke Tested (UL 1784). It is also GREENGUARD Gold Certified for low chemical emissions, supporting healthy indoor air quality.
- Environmental Shield: Effectively blocks air infiltration, light, wind, rain, snow, and dust, while naturally repelling rodents and insects.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 29326CNB
- Profile Height: 7/8" (Casing) | Total Height: 1-1/2" (with brush)
- Finishes: Clear Anodized Aluminum (C), Dark Bronze Anodized (D), Gold Anodized (G).
- Brush Colors: Gray brush is standard for Clear finish; Black brush is standard for Dark Bronze and Gold.
- Standard Lengths: 36" (In stock) and 48" (3-4 week lead time).
- Certifications: BHMA Certified (ANSI/BHMA A156.22), UL 4L10, UL 10C Positive Pressure.
Pro-Tip for Facility Managers
The Pemko 29326 Series is the ideal "clean-look" alternative to standard sweeps. If your building faces issues with unauthorized personnel tampering with door hardware, the snap cover provides an essential layer of security. For maintenance, the nylon bristles are exceptionally long-lasting, but if they ever require refreshment, the P516062 replacement insert can be slid into the existing aluminum channel without removing the entire sweep from the door.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Nylon Brush |
| Material Length | 5/8" |
| Housing Length | 7/8" |
| Housing Finish | Aluminum |
| Bottom Weatherseal Type | Sill Sweep, Concealed Fasteners |
| Fire Rated | Fire Rated |
