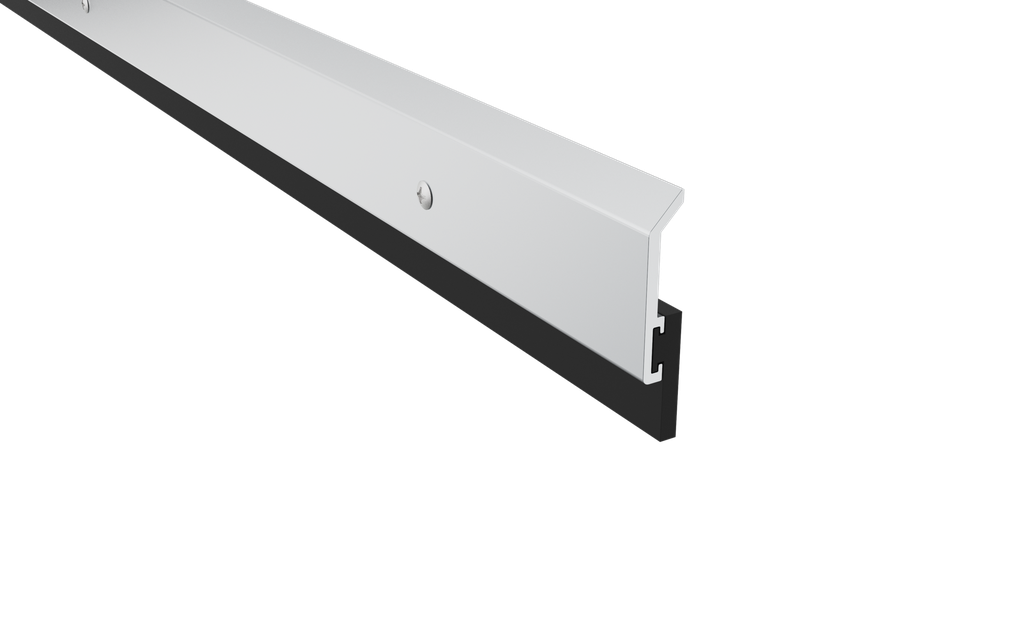

Pemko 315CN Sill Sweep - Clear Anodized Aluminum with Neoprene
The Pemko 315CN is a professional-grade Neoprene Door Sill Sweep engineered to provide an airtight, watertight seal for commercial and industrial outswing doors. Featuring a high-quality aluminum retainer and a durable Black Neoprene Insert, this sweep is designed to withstand extreme weather conditions while maintaining superior flexibility. When installed in conjunction with a flat or fluted threshold, the 315CN creates a high-performance barrier that drastically improves energy efficiency and building security.
High-Performance & Weatherproofing Features
- Extreme Temperature Resilience: The Neoprene Insert is built for the toughest climates, remaining effective in a massive temperature range from -75°F to +350°F.
- Superior Air & Moisture Barrier: Specifically designed to clear the floor and contact the bevel of the threshold, blocking drafts, driving rain, and dust infiltration.
- Smoke & Fire Certified: Fully tested to UL 10C Positive Pressure fire standards and UL 1784 for air leakage and smoke control, making it essential for fire-rated life safety openings.
- Acoustic Excellence: Sound tested to ASTM E90 standards, providing significant noise reduction when used in multi-seal configurations.
- Adjustable Mounting: The aluminum housing is punched with elongated slotted holes, allowing for easy vertical adjustment during installation to accommodate gaps from 1/8" to 3/8".
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 315CN
- Dimensions: 1/4" Width x 1-1/4" Profile Height (1-11/16" Total Height with insert)
- Finish: Clear Anodized Aluminum (C)
- Insert Material: Black Neoprene (item E315)
- Standard Lengths: 36", 48", 84", 96" (Custom lengths available)
- Certifications: BHMA Certified, GREENGUARD Gold, ANSI: R3B434, R3B435.
Pro-Tip for Facility Managers
The Pemko 315CN is the "industrial workhorse" of door sweeps. Because the neoprene is highly resistant to heat and cold, it won't crack or stiffen in extreme winters like standard vinyl might. Note that while neoprene is incredibly durable, it is not recommended for environments with high exposure to petroleum products like gasoline or mineral oil. If your sweep is damaged over time, you can easily refresh the seal by sliding in a new E315 replacement insert (compatible with the 2019 redesign).
| Length | 36 Inch or 42 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Neoprene |
| Material Length | 7/16" |
| Housing Length | 1-1/4" |
| Housing Finish | Aluminum |
| Bottom Weatherseal Type | Sill Sweep |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
