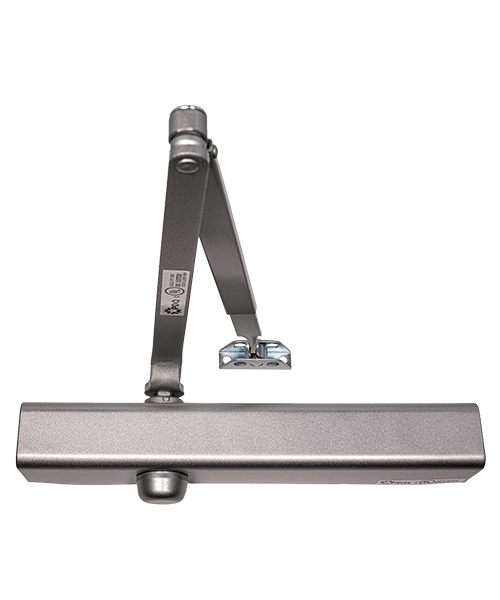

PDQ 5341 BC PA: High-Performance Delayed Action Door Closer
The PDQ 5341 BC PA is the premier architectural-grade solution for openings requiring extended clearance time. Featuring a Heavy-Duty 1-1/4” Hardened Steel Piston, this closer is engineered for institutional environments where durability and accessibility are non-negotiable.
The standout feature of the 5341 model is its Adjustable Delayed Action (DA). This hydraulic feature "pauses" the door at the top of the closing cycle, providing extra time for individuals with wheelchairs, stretchers, or heavy carts to pass through safely before the closing cycle begins.
Seamless Retrofit & Installation Versatility
Save time on labor with the PDQ 5341’s industry-standard 12” x 3/4” mounting hole pattern. This allows for a direct, "no-drill" retrofit for Norton 8300/8500 and Yale 3300/3500 series closers.
Every unit is Tri-Packed, providing the hardware for Regular Arm, Top Jamb (with a maximum 4” reveal), or Parallel Arm mounting. Whether it is a pull-side corridor door or a push-side exterior entrance, the 5341 handles it with ease.
Technical Specifications
| Feature | Specification |
| Model | PDQ 5341 BC PA (Delayed Action) |
| Piston Construction | 1-1/4" Diameter Hardened Steel |
| Hole Pattern | 12" x 3/4" (Universal Retrofit) |
| Spring Power | Adjustable Size 1 (BF) through 6 |
| Certifications | ANSI/BHMA A156.4 Grade 1 |
| Fire Rating | UL/cUL Listed (3-Hour Fire Doors) |
| ADA Compliance | Meets Americans with Disabilities Act Standards |
| Body Material | High-Strength Cast Aluminum Alloy |
| Standard Features | Backcheck (BC) & Delayed Action (DA) |
| Warranty | 25-Year Limited Warranty |
Precision Architectural Control
The PDQ 5341 Series offers a level of customization rarely found in standard aluminum closers. With three independent hydraulic zones, you have total control over the door's behavior:
- Delayed Action Valve: Controls the "pause" time at the start of the closing cycle.
- Sweep & Latch Valves: Precisely adjust the transition from a wide-open position to a secure latch.
- Hydraulic Backcheck: Standard on all units, this prevents the door from slamming into walls during forceful openings.
Why Buy the PDQ 5341 from Doorways Plus?
At DoorwaysPlus.com, we understand that institutional hardware must be "set and forget." The PDQ 5341 is TAA Compliant and comes standard with a streamline plastic cover and self-drilling, self-tapping screws. It is the ideal choice for Commercial Door Closers that need to meet rigorous ADA and ICC/ANSI 117.1 codes while maintaining a professional, modern aesthetic.
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | PDQ |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | PDQ - 5300 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 12" x 3/4" |
