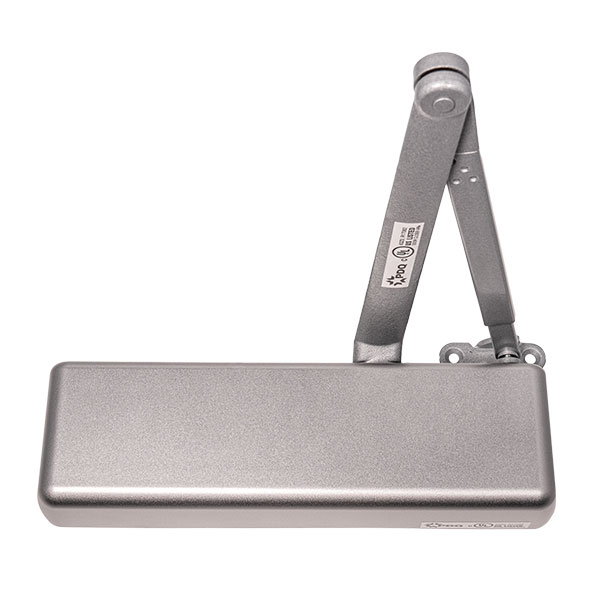

PDQ 7101 BC PA DOOR CLOSER - Tri Pack
The PDQ 7101 BC PA Door Closer is the "Iron Horse" of architectural door control. Designed for the most demanding, high-abuse environments—such as schools, hospitals, and busy transit hubs—this closer offers unparalleled structural integrity. As a Heavy-Duty Cast Iron unit, the 7101 Series provides a level of wear resistance and hydraulic stability that aluminum closers simply cannot match.
The Direct LCN 4040XP Retrofit Solution
If you are looking to replace or upgrade an existing LCN 4040XP or 4041, the PDQ 7101 is your perfect solution. It features the exact same mounting hole pattern and uses the same closer arms, allowing for a seamless swap-out with zero door or frame modifications.
The 7101 comes Tri-Packed, providing everything needed for Regular Arm, Top Jamb, or Parallel Arm mounting. Whether you need the efficiency of a pull-side mount or the vandal-resistance of a push-side parallel arm, this closer is ready for any architectural configuration.
Technical Specifications
| Feature | Details |
| Model | PDQ 7101 BC PA (Heavy-Duty) |
| Retrofit Compatibility | LCN 4040XP & 4041 (Same Hole Pattern) |
| Body Material | High-Strength Cast Iron |
| Piston Construction | 1-1/2" Diameter Heat-Treated Steel |
| Certification | ANSI/BHMA A156.4 Grade 1 (Exceeds 2M Cycles) |
| Fire Rating | UL/cUL Listed (3-Hour Fire Doors) |
| Spring Power | Adjustable Size 1 through 6 (ADA Compliant) |
| Standard Features | Adjustable Backcheck, Sweep, and Latch Valves |
| Warranty | 25-Year Limited Warranty |
Engineering Excellence & Precision Control
The PDQ 7101 Series is built to withstand the rigors of modern facilities. With a massive 1-1/2" diameter heat-treated steel piston and a double heat-treated pinion, this closer is designed for a lifetime of trouble-free operation.
- Full Hydraulic Control: Features separate, non-critical brass valves for Adjustable Backcheck (BC), Sweep Speed, and Latch Speed.
- ADA & Accessibility: Fully adjustable spring tension allows you to meet ADA (Americans with Disabilities Act) opening force requirements (Size 1) while maintaining the power to close heavy exterior doors (Size 6).
- High-Abuse Durability: The cast iron body offers superior oil-tightness and thermal stability, ensuring consistent closing speeds regardless of temperature fluctuations.
Why Buy the PDQ 7101 from Doorways Plus?
At DoorwaysPlus.com, we recommend the PDQ 7101 for any opening where failure is not an option. Each unit is TAA Compliant and includes self-drilling, self-tapping screws and thru bolts for a professional-grade installation on wood or metal doors. This is a true architectural-grade closer designed for those who demand the highest standards in Commercial Door Hardware.
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | PDQ |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | PDQ - 7100 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 1"/3"/1" x 2 1/4" (LCN 4040) |
