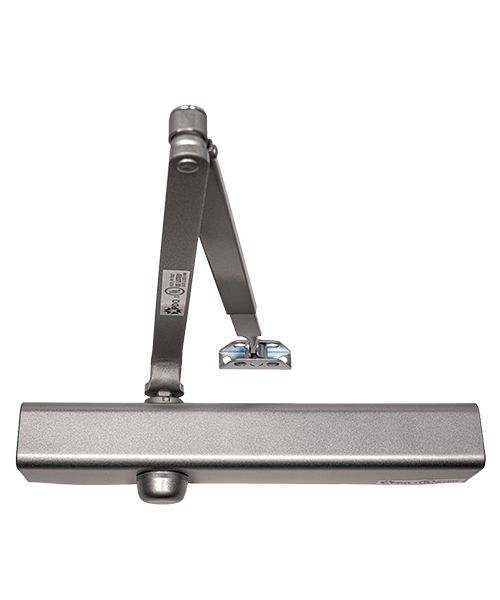

PDQ 5301 BC PA Door Closer - Regular or Parallel Arm Mounting
- 1-1/4” diameter hardened steel piston
- Heavy duty, fully featured architectural style door control
- Available with modern streamline cover or full sized cover (request quote)
- Compact appearance and features meet the demands of institutional and commercial applications
- Maximum 4” reveal for Top Jamb.
- The standard tri-pack, full range spring adjustment and common 12” x ¾” mounting hole pattern
- Adjustable hydraulic backcheck prevents damage for uncontrolled door opening
- Perfect solution for a variety of applications requiring streamline architectural grade door controls
- Cast High Strength Aluminum Alloy Body
- Hydraulic controlled closing
- Separate hydraulic backcheck standard
- Optional adjustable delayed action (in addition to backcheck)
- Common 12” x 3/4” mounting hole pattern retrofits Norton 8300/8500® and Yale 3300/3500
- Adjustable BF through 6
- Includes sex nuts/bolts and screws for wood/metal doors/frames
- Tri-packed for regular, top jamb and parallel arm installations
- Separate limiting stop may be required for high abuse applications
- Self drilling, self tapping screws standard
- 5300 Series - Streamline plastic cover (non-handed) 5500 Series - Full plastic cover standard (field reversible)
- Twenty-five (25) year Limited Warranty
- UL listed for labeled swinging fire doors rated up to and including 3 hours
- Certified to ANSI/BHMA A156.4 Grade 1
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
- TAA compliant. Country of origin: KR
Request a quote for plated finishes 605 Brass & 625 polished chrome
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | PDQ |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | PDQ - 5300 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 12" x 3/4" |
5300-5500-series-architectural-submittal-sheet.pdf
Download
5300_5500 REG_TJ_PA_NHO_ Instructions.pdf
Download
539301 REV0 5300-5500 REG ARM TEMPLATE.pdf
Download
539302 REV0 5300-5500 TOP JAMB TEMPLATE.pdf
Download
539303 REV2 5300-5500 PARALLEL ARM TEMPLATE.pdf
Download
539351 5300-5500 Regular Arm Instruction - Rev3.pdf
Download
539352 5300-5500 Top Jamb Instruction - Rev3.pdf
Download
539353 5300-5500 Parallel Arm Instruction - Rev3.pdf
Download
PDQ Closer - 5300 Series LT4004 7-2015.pdf
Download
