NGP SLAL-250-BP-4DR Aluminum By-Pass Track Set for 4 Doors, 250 lb, BHMA Grade 1
The National Guard Products SLAL-250-BP-4DR is the four-door by-pass kit in the same SLAL-250 aluminum top-mount family: 250 lb per door, 1-3/8 to 1-3/4 inch doors, ANSI/BHMA A156.14 Grade 1. The kit includes one mill-finish track and four universal hardware packs.
Lengths on this listing: 48, 60, and 72 inch. 96 inch and 144 inch are not listed. The 2-door kit is a separate listing (SLAL-250-BP-2DR).
Institutional Grade Features & Benefits
- Commercial Grade for 1-3/8" To 1-3/4" Doors
- For Sliding Doors up to 250 lbs. Each
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy Duty Ball Bearing Wheels
- Meets ADA Push Force Requirements
- 5-Year Warranty
- Track lengths on this listing: 48, 60, and 72 inch (96 and 144 inch not listed)

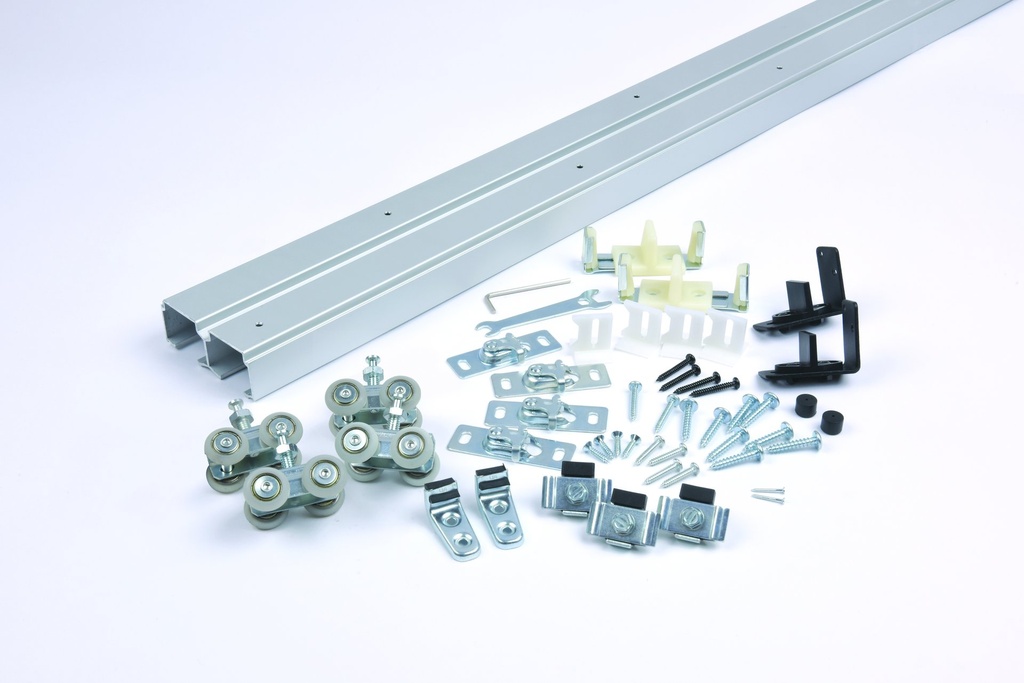

- Complete Kits Include: (1) Track - Mill Finish, (4) Universal Hardware Packs. Each Consist Of: (2) Ball Bearing Heavy Duty Hangers, (2) Snap-In Door Brackets, (2) In-Track Stops, (1) Angle Stop, (1) Bumper Stop, (1) Door Guide, Heavy Duty Floor Guides
- Note: For Door Sizing Refer to Installation Instruction
Standards
- ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.
Technical Details
| Model | SLAL-250-BP-4DR |
| Type | By-pass track set, 4 doors |
| Manufacturer | National Guard Products |
| Description | Aluminum By-Pass, Top Mount Track System |
| Capacity | 250 lb per door (NGP factory) |
| Lengths on this listing | 48, 60, and 72 inch |
| Finish | Mill finish aluminum track |
| Door thickness | 1-3/8 inch to 1-3/4 inch |
| Certification | ANSI/BHMA A156.14 Grade 1, 100,000 cycles (NGP factory) |
| Warranty | 5-year (NGP factory) |
Ordering and Lead Time
Order by track length. This listing is the 4-door kit. Made to order. Lead time: 10-15 business days.
| Length | 48 Inch or 60 Inch or 72 Inch |
| Brand | National Guard Products |
| Trackset Type | Bypass |
| Maximum Weight of Door | 250 Lbs |
