NGP 9990 GapGuard Fire Door Top Gap Solution | Brushed Stainless

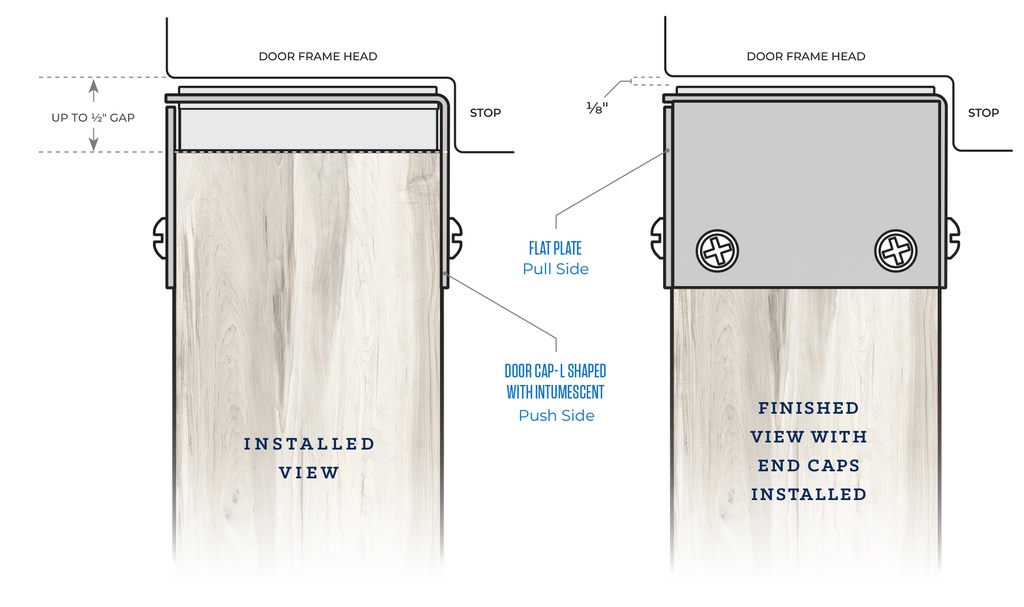

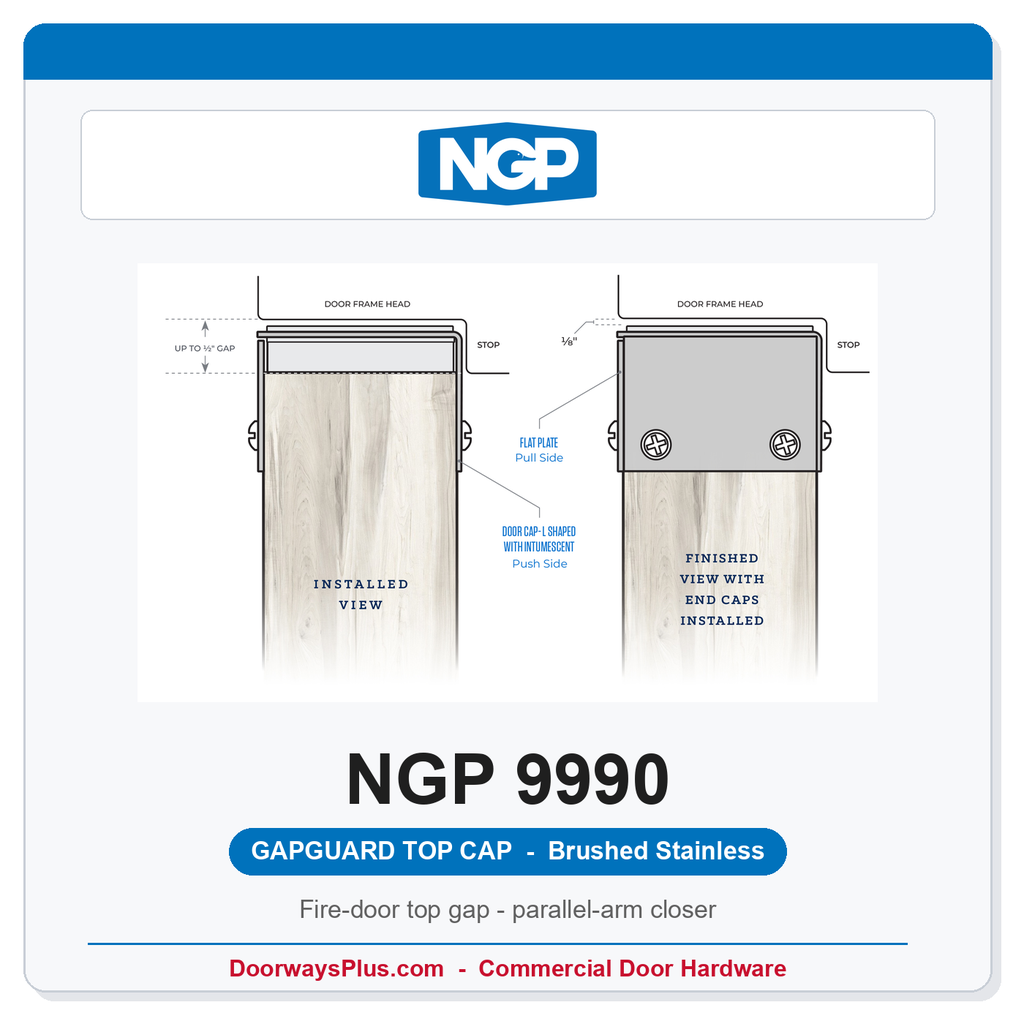

The National Guard Products 9990 is the GapGuard fire-door top gap solution for openings with a parallel-arm closer. NGP lists it as Fire Door Top Gap Solution - Up To 180 Minutes. Catalog GAP7 kit is a #304 brushed stainless flat plate on the pull side, an intumescent L-shaped door cap on the push side, stainless end caps, and #6 x 3/4 inch stainless SMS. It closes excessive clearance at the door top up to 1/2 inch on hollow metal and wood fire doors rated up to 180 minutes.
Sold as individual sticks (36 Inch, 48 Inch). Head-and-jamb GAP90 kits are separate listings and do not cover a parallel-arm top gap.
Product Features
- UL Certified for Door Top Gaps-Measuring up to 1/2"
- 180-Minute Rated - for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
- Recommended for Doors with Parallel Arm Closers
- Available in 36" and 48" Lengths
- Brushed Stainless Steel
- Non-Handed
- Product Consists of: #304 Brushed Stainless Steel, Flat Plate - Pull Side, #304 Brushed Stainless Steel, Intumescent Cap - Push Side, #304 Brushed Stainless Steel End Caps, #6 x 3/4" Stainless Steel SMS Furnished
- Certified for Use in US and Canada
- Patented: US Patent US 11,261,653 B2
- Finish: Brushed Stainless Steel
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 180 minute with excessive door bottom undercut/ clearances measuring up to 1-1/2
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 180 minute with excessive door bottom undercut/clearances measuring up to 1-1/2
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP 9990 |
| Type | GapGuard fire-door top cap |
| Manufacturer | National Guard Products |
| Factory subtitle | Fire Door Top Gap Solution - Up To 180 Minutes |
| Kit includes | #304 SS flat plate, intumescent L-cap, SS end caps, #6 x 3/4 in SMS |
| Finish on this listing | Brushed stainless (#304) |
| Gap range | Door top up to 1/2 inch |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed) |
| Fasteners | #6 x 3/4" stainless SMS |
| NGP kit lengths on this listing | 36 Inch, 48 Inch |
| Patent | US 11,261,653 B2 (printed by NGP) |
| Related | Head and jamb: GAP90 / GAP90N. Strike shims 9275 or 9225 may be required. |
Ordering and Lead Time
Order by stick length (36 or 48 inch). This listing is 9990 brushed stainless. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch |
| Brand | National Guard Products |
| Housing Finish | Brushed Stainless |
| Housing Size | #304 SS flat plate + L-cap (9990) |
| Fasteners | #6 x 3/4" stainless SMS |
| Kit Includes | flat plate + intumescent cap + end caps |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
