NGP 9595DKB GapGuard Floating Fire Door Bottom Gap Solution | Matte Black

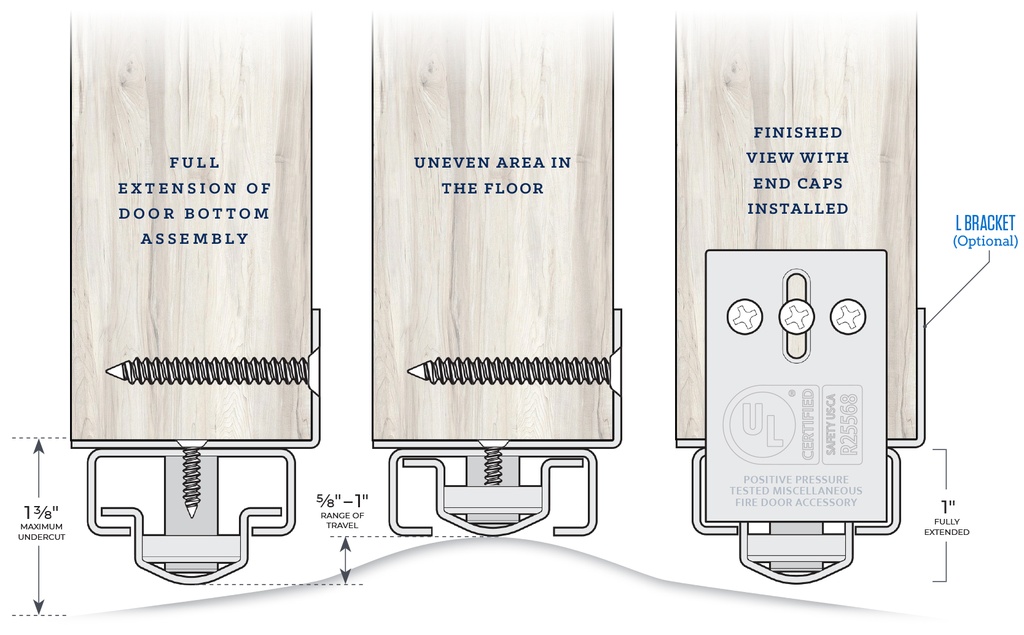

The National Guard Products 9595DKB is the GapGuard floating fire-door bottom for uneven floors. NGP lists it as Fire Door Bottom Gap Solution. Catalog GAP10 kit is a 16-gauge steel L-bracket (embossed UL mark), an 18-gauge door-bottom assembly, 18-gauge end caps, and the DKB hardware pack. It closes excessive clearance between the door bottom and finished floor up to 1-3/8 inch on hollow metal and wood fire doors rated up to 90 minutes. Travel range is 3/8 inch. The door can stay on the hinges.
Sold as individual sticks (36 Inch, 42 Inch, 48 Inch). Stainless 9590 is a separate listing for a fixed bottom gap up to 1-1/2 inch.
Product Features
- UL Certified Solution for Fire Doors With Excessive Clearance Between the Bottom of the Door and Finished Floor, up to 1-3/8"
- Application Certified on Both Hollow Metal and Wood Fire-Rated Doors - up to 90 Minutes
- Non-Handed
- L-Bracket Allows Installation while Door Remains on Hinges
- Can be Trimmed in the Field up to 1-1/2" per Side, 3" Total
- Designed to Travel Over Uneven Floors, with a Range of 3/8"
- Visibility of Hardware is Minimized by Using L-Bracket on Pull-Side of the Door
- May be Fastened to the Underside of the Door's Bottom Rail to Minimize Visibility
- End Caps Set Height Position and Provide a Finished Look
- Product consists of: L-Bracket, 16-Gauge Steel, Embossed with UL Mark, Door Bottom Assembly, 18-Gauge Steel, End Caps, 18-Gauge Steel, Embossed with UL Mark
- Hardware pack: #10 x 1-1/2" PHPH SS SMS (DKB), #8-32 x 1-3/4" PHP SS thru-bolt (DKB), #6 x 3/8" SS TEK, #10 x 2" PHPH SS SMS, #6 x 3/4" FHPH SS SMS (DKB)
- Sizes: 36", 42" and 48"
- Certified for use in US and Canada
- Patented: US Patent US 11,761,262 B2
- Finish: Powder Coated: Matte Black
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door bottom undercut/clearances, measuring up to 1-3/8"
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/10C, complies with IBC, NFPA 80 and NFPA 252 for applications to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door bottom undercut/clearances, measuring up to 1-3/8"
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP 9595DKB |
| Type | GapGuard floating fire-door bottom |
| Manufacturer | National Guard Products |
| Factory subtitle | Fire Door Bottom Gap Solution |
| Kit includes | 16-ga L-bracket, 18-ga bottom assembly, 18-ga end caps, DKB hardware pack |
| Finish on this listing | Matte black, powder coat |
| Gap range | Door bottom up to 1-3/8 inch; 3/8 inch travel |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed); 90-minute as printed on GAP10 |
| Fasteners | #10 x 1-1/2" SMS, #8-32 thru-bolt, #6 TEK, #10 x 2" SMS, #6 x 3/4" SMS (DKB pack) |
| NGP kit lengths on this listing | 36 Inch, 42 Inch, 48 Inch |
| Patent | US 11,761,262 B2 (printed by NGP) |
| Related | Fixed stainless bottom: 9590. Head and jamb: GAP90 / GAP90N. |
Ordering and Lead Time
Order by stick length (36, 42, or 48 inch). This listing is 9595DKB matte black. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch or 42 Inch |
| Brand | National Guard Products |
| Housing Finish | Matte Black |
| Housing Size | 16-ga L-bracket + 18-ga bottom (9595DKB) |
| Fasteners | DKB SMS / thru-bolt / TEK pack |
| Kit Includes | L-bracket + floating assembly + end caps |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
