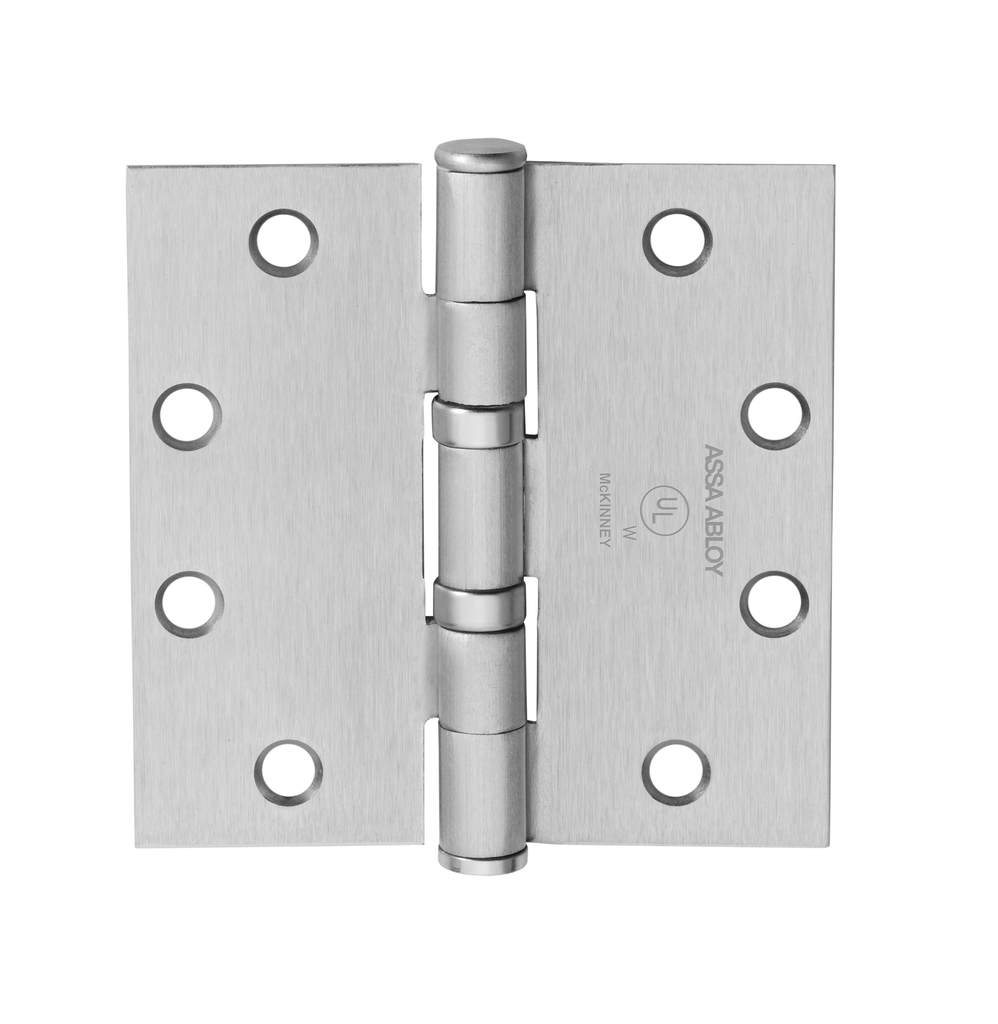

McKinney TA2714 4-1/2" x 4" Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish
Oil Impregnated Bearing (TA Prefix)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure.
Hinges are for use on average traffic in commercial construction. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .134 thickness with template screw hole pattern.
Hinges are sold as Each
ANSI Number: A8112
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
