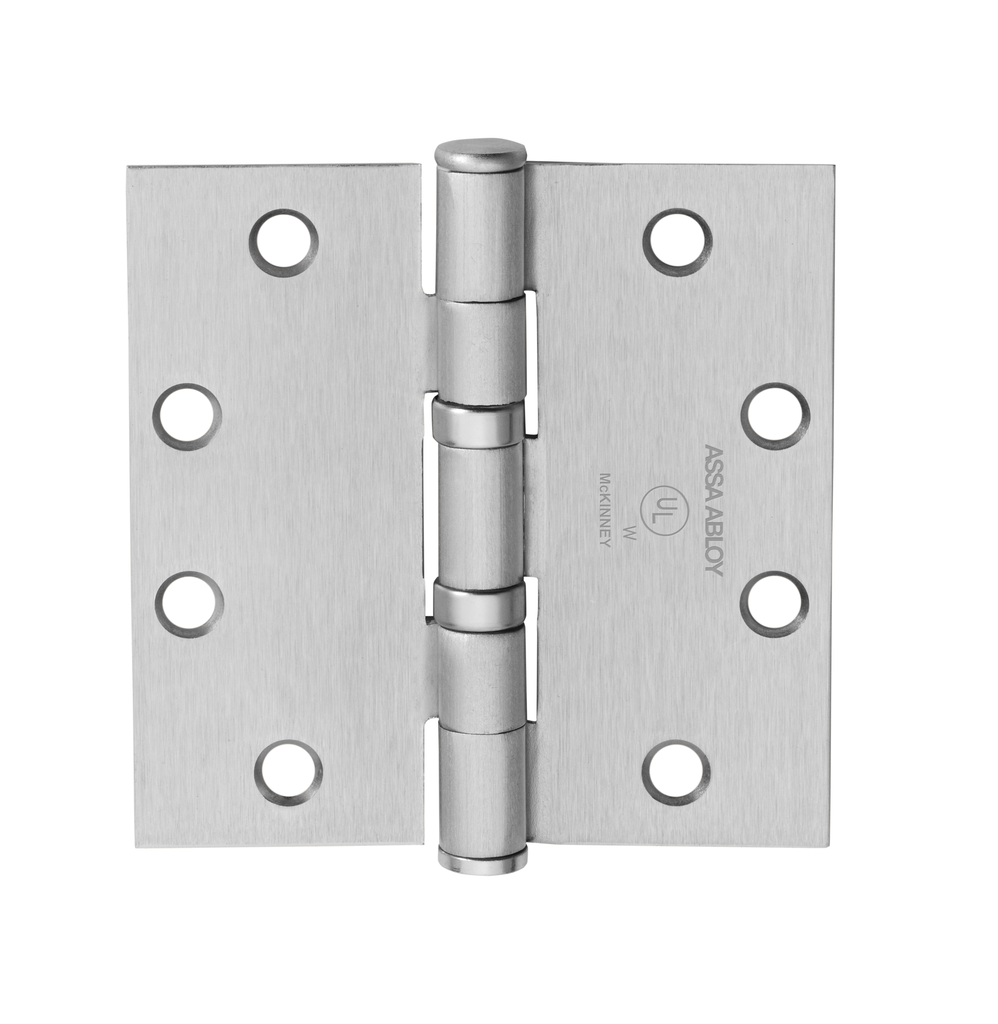

McKinney TA2714 Ball Bearing Hinge | 4" x 4" Ball Bearing Five Knuckle
The McKinney TA2714 is a professional-grade standard weight bearing hinge engineered for average traffic in commercial construction and light industrial applications. Featuring a robust .130 gauge thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration on medium-weight wood or metal doors. Utilizing McKinney's specialized Oil Impregnated Bearings, it provides a smooth, maintenance-free operation that excels in office buildings, retail spaces, and public facilities.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix signifies McKinney’s high-performance self-lubricating bearing system. These one-piece, non-ferrous bearings provide:
- Superior Longevity: Drastically reduces friction for a smoother, silent door swing and high resistance to hinge failure.
- Clog & Corrosion Resistance: Specifically engineered to resist dust, debris, and oxidation, ensuring consistent performance in demanding environments.
- Maintenance-Free Life: Acts as a permanent solution for door edge reinforcement without the need for manual lubrication.
Professional Commercial Engineering
- Standard Weight .130 Gauge: A heavy-duty commercial thickness that provides significantly more stability than residential alternatives.
- Non-Rising Steel Pin: Equipped with architectural button tips to maintain a clean, professional aesthetic while preventing the pin from migrating upward over time.
- Template Screw Hole Pattern: Precision-engineered for exact alignment and rapid field replacement in standard commercial frames.
- Versatile Architectural Finishes: Available in high-quality options including US26D (Satin Chrome) for a brushed look, US26 (Polished Chrome) for high-reflectivity, and US3 (Polished Brass) for a classic aesthetic.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2714
- Dimensions: 4" Height x 4" Width (Standard Weight .130 Thickness)
- ANSI/BHMA A156.1 Compliant: Meets industry benchmarks for structural quality and performance.
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
Important Technical Note: This is a Commercial Grade Hinge. It does not share the same screw hole pattern or thickness as residential grade hinges. If your project requires residential hardware, verify your hole pattern before installation.
BABAA Compliant -- meets the Build America Buy America Act domestic-content preference for federal-funded infrastructure projects; compliance documentation available.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
