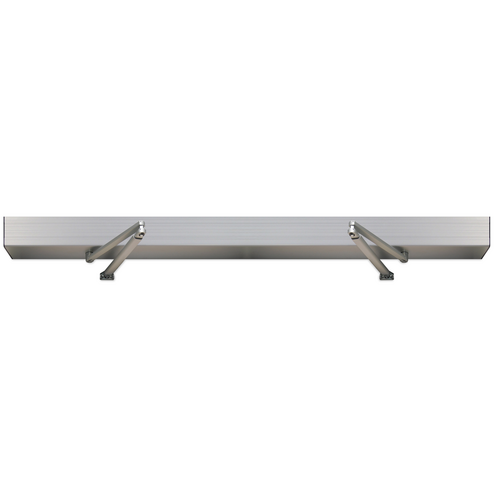

Hager 8319 Double Door Low Energy Operator – Simultaneous Pair
The Hager 8319 Double Door Operator is the premier solution for heavy-duty, high-traffic dual-door entrances. Designed as a Simultaneous Pair Operator, this system ensures both door leaves operate in perfect synchronization to provide a wide, welcoming, and ADA-compliant entryway. Whether installed in a hospital, school, or commercial storefront, the 8319 offers unparalleled reliability and power for double-door applications.
Each motor in the Hager 8319 system is engineered for versatility, working on both inswing (pull) and outswing (push) configurations. The unit functions as a standard manual closer even without power, ensuring the building remains secure and functional at all times. With a 3-hour UL/cUL fire rating, this operator is the safe choice for fire-rated corridors and life-safety exits.
Advanced Synchronization & Control
The Hager 8319 is designed for complex architectural requirements:
- Dual Motor Power: Each motor features its own 24 VDC onboard power supply, providing ample current for secondary accessories like electric locks, motion sensors, and safety mats.
- Selectable Boost on Close: Provides additional closing force during the final 10 degrees of the swing, ensuring heavy double doors latch securely against seals and stack pressure.
- Fire Alarm Integration: Includes a dedicated fire alarm input that shunts swing activations immediately until the FACP is reset, maintaining the integrity of the fire barrier.
- Night Mode Security: A side-mounted rocker switch allows for the deactivation of exterior actuators, securing the building while maintaining accessible egress from the interior.
- Blow Open Function: Integrated contacts allow the doors to swing open automatically for smoke ventilation during a fire emergency.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 8319 |
| Configuration | Simultaneous / Independent Pair |
| Max Door Weight | 350 lbs. per leaf |
| Max Door Width | 5' 0" per leaf |
| Power Requirements | 115 VAC 60 HZ |
| Onboard Power Supply | 24 VDC @ 1 Amp (Each Motor) |
| Lock Relay Rating | 5.0A @ 28 VDC (Form C SPDT per Motor) |
| Fire Rating | UL/cUL Listed up to 3 Hours |
| Certifications | ANSI A156.19, UL325, UL10C, ADA Compliant |
| Operating Temp | -4°F to + 131°F |
| Warranty | 2-Year Manufacturer Warranty |
Installation & Reveal Details
The Hager 8319 is available in standard header lengths of 72”, 84”, 88”, and 96”. It is designed for a single-person installation using pre-drilled mounting holes in the header.
- Push Arm Reveal: 9-3/4" (Extensions available for reveals up to 19").
- Pull Arm Reveal: 0".
- Finishes: Available in ALM (Aluminum), BLK (Black), and DBZ (Dark Bronze). Note: Bronze units ship with black arms.
Essential Accessories
To maximize the capabilities of your Hager 8319, the following accessories are available at DoorwaysPlus.com:
- 2-679-0907 – KP EVO Programming Device: Required for accessing advanced sequencing and simultaneous/independent logic adjustments.
- 2-679-0905/0906 – Standard Arm Extensions: Necessary for deep reveals between 9-3/4" and 19".
- 7000 Series Overhead Stop: Highly recommended for high-usage openings to protect the motors from abusive wind or physical impact.
| Door Opening Width | 72 Inches or 84 Inches or 88 Inches or 96 Inches |
| General - US Finishes | ALM - Aluminum or DBZ - Dark Bronze or BLK - Black |
| Operator Mounting | Push Side or Pull Side |
| Brand | Hager |
