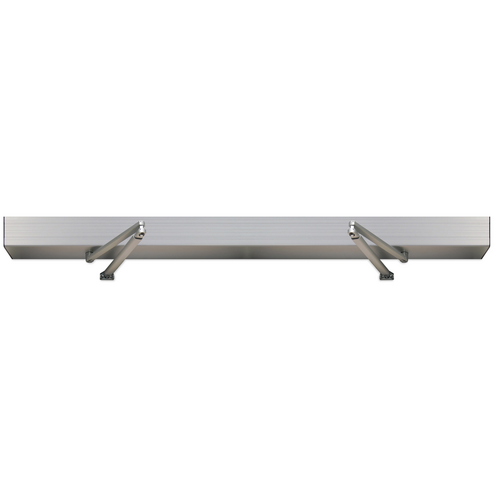

Hager 8321 Double Door Egress Low Energy Operator – Simultaneous Pair

The Hager 8321 Double Door Egress Operator is a heavy-duty solution engineered specifically for high-traffic emergency exit routes and main entryways. This Simultaneous Pair Operator ensures that both door leaves activate in perfect synchronization, providing a wide, unobstructed path for egress that exceeds all ADA and life-safety requirements.

Designed for reliability in the most demanding environments, the 8321 features two independent motors housed in a single header. Each motor is capable of managing a 350 lb door leaf, making it the ideal choice for hospital corridors, school exits, and public assembly spaces. With a 3-hour UL/cUL fire rating, it provides essential protection for fire-rated openings without compromising on accessibility.

Advanced Safety & Sequencing Features

• Dual-Motor Logic: Each motor operates with its own 24 VDC onboard power supply, allowing for independent or simultaneous control of electric strikes, magnetic locks, and safety sensors.
• Fire Alarm Integration: Features a dedicated fire alarm input that shunts swing activations immediately upon signal, ensuring the doors remain closed during an alarm event unless manually overridden.
• Boost on Close Technology: Selectable power assist provides extra force during the final 10 degrees of closing, ensuring large double doors latch securely against high stack pressure or wind.
• Manual Closer Functionality: In the event of a power loss, the 8321 functions as a standard manual door closer, maintaining the building's fire and security perimeter.
• Emergency Blow-Open: Integrated contacts allow the operator to swing the doors to the fully open position for smoke ventilation when triggered by the building's fire control system.

Technical Specifications

Installation & Finish Options

The Hager 8321 is available in header lengths of 72”, 84”, 88”, and 96”. It is designed for a single-person installation using pre-drilled mounting holes to reduce labor costs on-site.

• Push Arm Reveal: 9-3/4" (Reveals up to 19" require an arm extension).
• Pull Arm Reveal: 0".
• Finish Selection: Choose from ALM (Aluminum), BLK (Black), or DBZ (Dark Bronze). Note: Bronze operators ship with a black arm.

Essential Accessories

Enhance your Hager 8321 installation with these components available at DoorwaysPlus.com:

• 2-679-0907 – KP EVO Programming Device: This is required to access advanced programming features and secondary relay logic.
• 2-679-0905 / 2-679-0906 – Arm Extensions: Necessary for installations with deep reveals (9-3/4" to 19").
• 7000 Series Overhead Stop: Highly recommended for high-usage openings to protect the operator motors from abuse.
