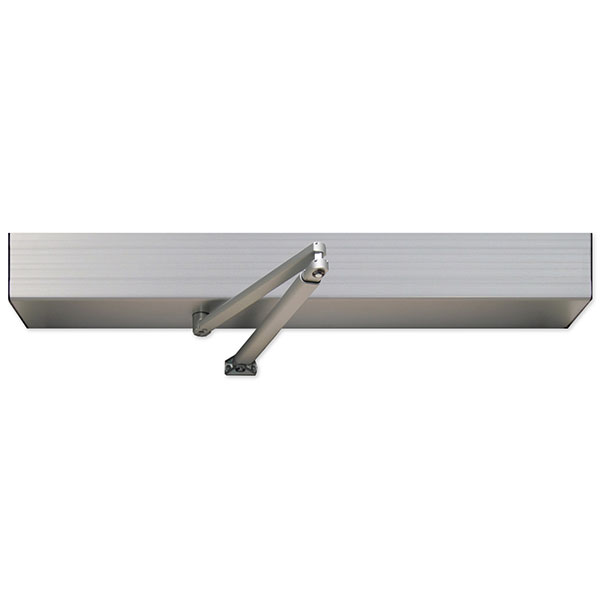

Hager 8318 Low Energy Single Door Operator – ADA Compliant & Fire Rated
The Hager 8318 Single Low Energy Door Operator is the ultimate solution for creating accessible, high-traffic entryways in commercial, medical, and educational environments. This ANSI A156.19 compliant operator is designed to exceed all ADA requirements, providing effortless entry for individuals with mobility challenges while maintaining the high-speed performance required for professional facilities.
Engineered for extreme versatility, the 8318 is non-handed and works seamlessly on both inswing (pull) and outswing (push) doors. It functions as a standard manual door closer even when power is disconnected, ensuring the door remains secure and operable at all times. With its 3-hour UL/cUL fire rating, this operator is safe for use on fire-rated openings, making it an essential component for life safety and building code compliance.
Advanced Programming & Power Features
The Hager 8318 is packed with intelligent features designed to handle complex door logic:
- Onboard Power Supply: Provides 24 VDC (1A) to power accessories like electric strikes, magnetic locks, and motion sensors without the need for an external power source.
- Selectable Boost on Close: Provides additional force during the last 10 degrees of closing to ensure the door latches securely, even against heavy wind or high stack pressure.
- Night Mode: A side-mounted rocker switch allows facility managers to deactivate exterior actuators for after-hours security while keeping the interior exit function active.
- Flash Upgradeable Memory: Ensures your hardware stays current with the latest software updates and functional improvements.
- Blow Open Function: Integrated alarm contacts allow the door to swing open for smoke ventilation during a fire emergency.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 8318 |
| Certifications | ANSI A156.19, UL325, UL10C, ADA Compliant |
| Fire Rating | UL/cUL Listed up to 3 Hours |
| Power Requirements | 115 VAC 60 HZ |
| Onboard Power | 24 VDC @ 1 Amp |
| Electric Lock Relay | 5.0A @ 28 VDC (SPDT Form C) |
| Max Door Weight | 350 lbs. |
| Max Door Width | 5' 0" |
| Operating Temp | -4°F to + 131°F |
| Opening Force | Less than 15 lbs. |
| Opening Angle | 180° (Push), 140° (Pull) |
| Warranty | 2-Year Manufacturer Warranty |
Installation & Reveal Details
The Hager 8318 is designed for a single-person installation using pre-drilled mounting holes. It is available in standard lengths of 36”, 42”, 44”, and 48” (opening width plus 3").
- Push Arm Reveal: 9-3/4" Standard (Extensions available for reveals up to 19").
- Pull Arm Reveal: 0".
- Finishes: Available in ALM (Aluminum), BLK (Black), and DBZ (Dark Bronze). Note: Bronze units ship with a black arm.
Essential Accessories
To maximize the capabilities of your Hager 8318, the following accessories are available at DoorwaysPlus.com:
- 2-679-0907 – KP EVO Programming Device: Required for accessing advanced programming features and custom logic.
- 2-679-0905/0906 – Standard Arm Extensions: Required for deep reveals between 9-3/4" and 19".
- 7000 Series Overhead Stop: Hager recommends using an overhead stop for high-usage openings or abusive environments to protect the operator motor.
| Door Opening Width | 36 Inches or 42 Inches or 44 Inches or 48 Inches |
| General - US Finishes | ALM - Aluminum or DBZ - Dark Bronze or BLK - Black |
| Operator Mounting | Push Side or Pull Side |
| Brand | Hager |
