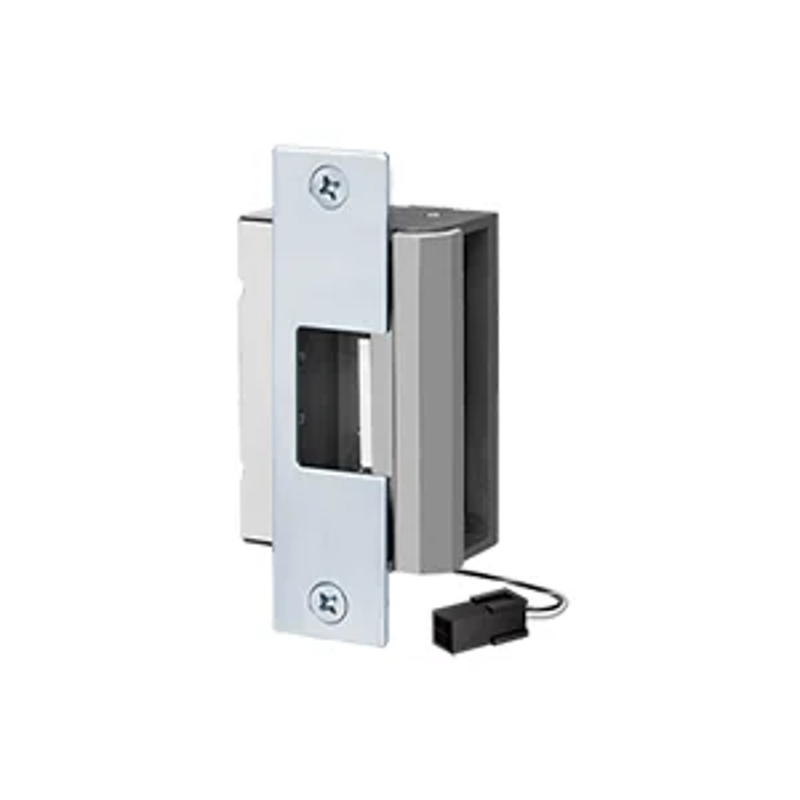

Hager 2930 MDB Electric Strike — Mortise Lock with Deadbolt, 12/24VDC Dual Voltage

The Hager 2930 MDB is a heavy-duty, ANSI/BHMA A156.31 Grade 1 electric strike engineered specifically for mortise locksets that include a 1-inch deadbolt. Dual-voltage (12VDC / 24VDC) and non-handed, it integrates cleanly into virtually any access-control system on any door swing. Its UL-listed 3-hour fire rating makes it a code-compliant choice for life-safety openings in healthcare, education, government, and institutional facilities. Available in a 630 / US32D Satin Stainless finish standard, with additional finish options to suit most architectural schedules.

The 2930 MDB is offered in two configurations: a body-only version and a version with the 1006xCDB faceplate kit (2 faceplates for deadbolt locks), giving contractors and facility managers the flexibility to match existing hardware prep or specify the complete assembly from the start. The strike ships in a Fail Secure configuration, meaning the door remains locked on power loss — the preferred default for most code-compliant egress openings where mechanical egress is maintained by the lockset lever.

Institutional Grade Features & Benefits

• Purpose-Matched Deadbolt Geometry: The keeper profile is specifically engineered for mortise locksets with a 1-inch deadbolt throw — eliminating fit issues that arise when a cylindrical-lock strike is pressed into service on a mortise opening.
• ANSI/BHMA A156.31 Grade 1: Meets the highest commercial duty classification for electric strikes, confirming suitability for heavy-traffic, high-cycle openings.
• UL Listed 3-Hour Fire Rating: Qualifies for installation on fire-rated door assemblies — a critical requirement in corridors, stairwells, and other life-safety openings governed by NFPA 80 and the IBC.
• Dual Voltage — 12VDC or 24VDC: Compatible with the widest range of access-control power supplies and controllers. No voltage-specific SKU to manage, reducing stocking complexity for contractors and facility teams.
• Fail Secure Operation: The door remains locked on power loss, preserving security integrity. Egress is maintained mechanically through the mortise lock lever — the standard configuration for most commercial and institutional openings.
• Non-Handed: Installs on left- or right-hand doors without modification, streamlining procurement and field installation.
• Faceplate Options: Available as a body-only unit or with the 1006xCDB two-faceplate kit optimized for deadbolt locksets, providing installation flexibility across new construction and retrofit projects.
• 630 / US32D Satin Stainless Finish: A durable, corrosion-resistant finish suited for high-use institutional environments; additional finishes available — contact DoorwaysPlus for options.
• 1-Year Manufacturer Warranty: Backed by Hager's standard commercial hardware warranty.

Application Guidance

The 2930 MDB is the correct selection when the hardware schedule specifies a mortise lock body with a deadbolt — for example, a storeroom, classroom-security, or office-entry function where the deadbolt projects simultaneously with the latchbolt. Installers should verify that the mortise lock's deadbolt throw and centerline dimensions align with the 2930 MDB keeper geometry prior to rough-in. Typical applications include:

• Healthcare corridor and suite entry doors with mortise lock hardware
• K-12 and higher-education classroom-security and administrative office openings
• Government and institutional facilities requiring fire-rated electrified access control
• High-security commercial entries where a deadbolt is part of the locking sequence

Technical Details

Need a comparable electric strike from another preferred line, or want to confirm compatibility with your existing mortise hardware schedule? Contact DoorwaysPlus for technical support and competitive quotes.
