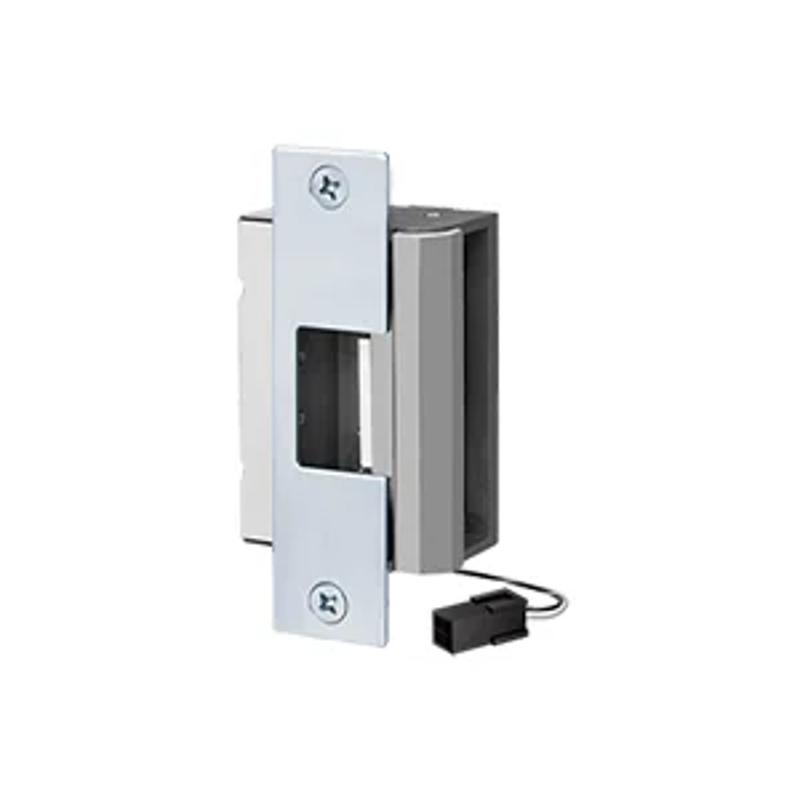

Hager 2930 MOR Electric Strike for Mortise Locks — 12/24VDC, Fail Secure, UL 3-Hour Fire Rated, ANSI/BHMA Grade 1

The Hager 2930 MOR is a heavy-duty, ANSI/BHMA A156.31 Grade 1 electric strike engineered specifically for mortise locksets with a 3/4" throw latchbolt. Dual-voltage (12VDC or 24VDC) and non-handed, the 2930 MOR integrates cleanly into new and retrofit access-control openings without re-cutting the frame for hand. Its UL-listed 3-hour fire rating makes it one of the most code-compliant electric strikes available for life-safety and fire-rated openings in institutional, healthcare, education, and high-traffic commercial facilities. The 2930 MOR ships in 630 (US32D) Satin Stainless finish and is available in an electric strike body-only configuration or with faceplate kit 1006xCLB (three faceplates — latchbolt locks).

Institutional Grade Features & Benefits

• Purpose-Built for Mortise Locks (3/4" Throw): Keeper geometry is matched to standard mortise lockset latchbolts, reducing compatibility guesswork on complex openings — including mortise locks paired with access-control credential readers.
• ANSI/BHMA A156.31 Grade 1: Meets the heavy-duty commercial standard for electric strikes, ensuring long cycle life and structural integrity under high-frequency use.
• UL Listed 3-Hour Fire Rating: Approved for use on 3-hour fire-rated door assemblies, satisfying NFPA 80 and IBC requirements at the most demanding fire-barrier openings.
• Fail Secure Operation: In a power-loss event, the strike remains locked — egress is always preserved mechanically through the mortise lever, consistent with NFPA 101 and IBC egress provisions. Fail secure is the code-preferred default for egress doors with electric strikes.
• Dual Voltage — 12VDC / 24VDC: Works with virtually any access-control power supply or controller without special ordering; simplifies system integration and reduces inventory requirements.
• Non-Handed: Installs on left- or right-hand swing doors without modification, minimizing field errors and reducing lead time on rush projects.
• 630 (US32D) Satin Stainless Finish: Corrosion-resistant and architecturally neutral finish suited for institutional and healthcare environments.
• Faceplate Options: Available as body-only or with the 1006xCLB three-faceplate kit for latchbolt lock applications — confirm faceplate compatibility with your mortise lockset before ordering.

Applications

The Hager 2930 MOR is the appropriate electric strike choice when the opening combines a mortise lockset with an access-control system on a fire-rated door assembly. Typical installations include:

• Hospital and healthcare corridor doors with card-reader or credential access
• K–12 and higher-education security vestibules and classroom wing entries
• Government and institutional facilities requiring 3-hour fire-rated egress hardware
• High-traffic commercial entries where Grade 1 cycle life and fail-secure operation are specified

Technical Details

Need to confirm compatibility with your mortise lockset and access-control system, or want to compare options? DoorwaysPlus can quote comparable electric strike alternatives from additional preferred lines to ensure the best fit for your opening schedule.
