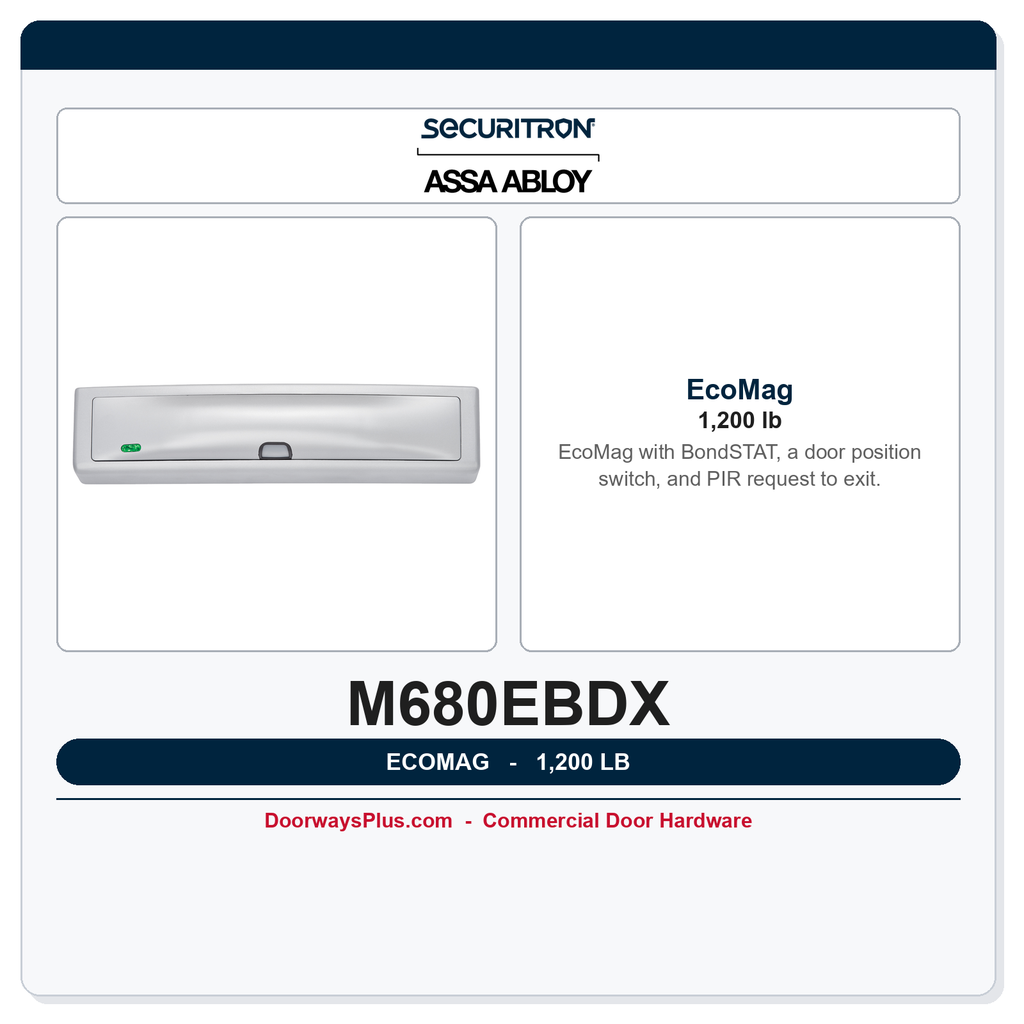

Securitron M680EBDX EcoMag | 1,200 lb | Indoor
The Securitron M680EBDX is a 1,200 lb bracket-mounted EcoMag for out-swing doors. Indoor only. Not for outdoor use. The body is 11-1/2 in long, 2-1/2 in high, and 2-9/16 in deep. Flat mounting space is 2-1/4 in. Operating range is 32 F to 110 F. Automatic 12 or 24 VDC, with no field voltage change. EcoMag with BondSTAT, a door position switch, and PIR request to exit. Average 113 mA at 12 VDC or 52 mA at 24 VDC. PIR adds 25 mA at 12 VDC or 20 mA at 24 VDC. UL 10C, 1-hour. LED shows secure, open, or incomplete bond. Adjustable relock timer, 0 to 30 seconds. Eight finishes: 605, 606, 612, 613E, 628, 629, 630, and BSP. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release.
Institutional Grade Features & Benefits
- 1,200 lb EcoMag. Indoor only. Not for outdoor use.
- EcoMag with BondSTAT, a door position switch, and PIR request to exit.
- Bracket mount for an out-swing door. Flat mounting space 2-1/4 in.
- UL 10C, 1-hour.
Applications
- Out-swing doors
- Indoor only
- Sized to sit with a door closer
Technical Details
| Feature | Details |
|---|---|
| Model Number | M680EBDX |
| Holding force | 1,200 lb |
| Body | 11-1/2 in L x 2-1/2 in H x 2-9/16 in D |
| Flat mounting space | 2-1/4 in |
| Electrical | Average 113 mA at 12 VDC or 52 mA at 24 VDC. PIR adds 25 mA at 12 VDC or 20 mA at 24 VDC. |
| Temperature | 32 F to 110 F |
| Use | Indoor only |
| Listings | UL 10C 1-hour, CAN/ULC-S104, UL 1034, UL 294, ANSI/BHMA A156.23 Grade 2, CSFM |
| Finishes | 605, 606, 612, 613E, 628, 629, 630, BSP |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Finish with BHMA code | 628 - Clear Anodized Aluminum or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 629 - US32 Polish Stainless |
| Brand | Securitron |
| Magnetic Lock Options | Bond Sensor, Door Status |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
