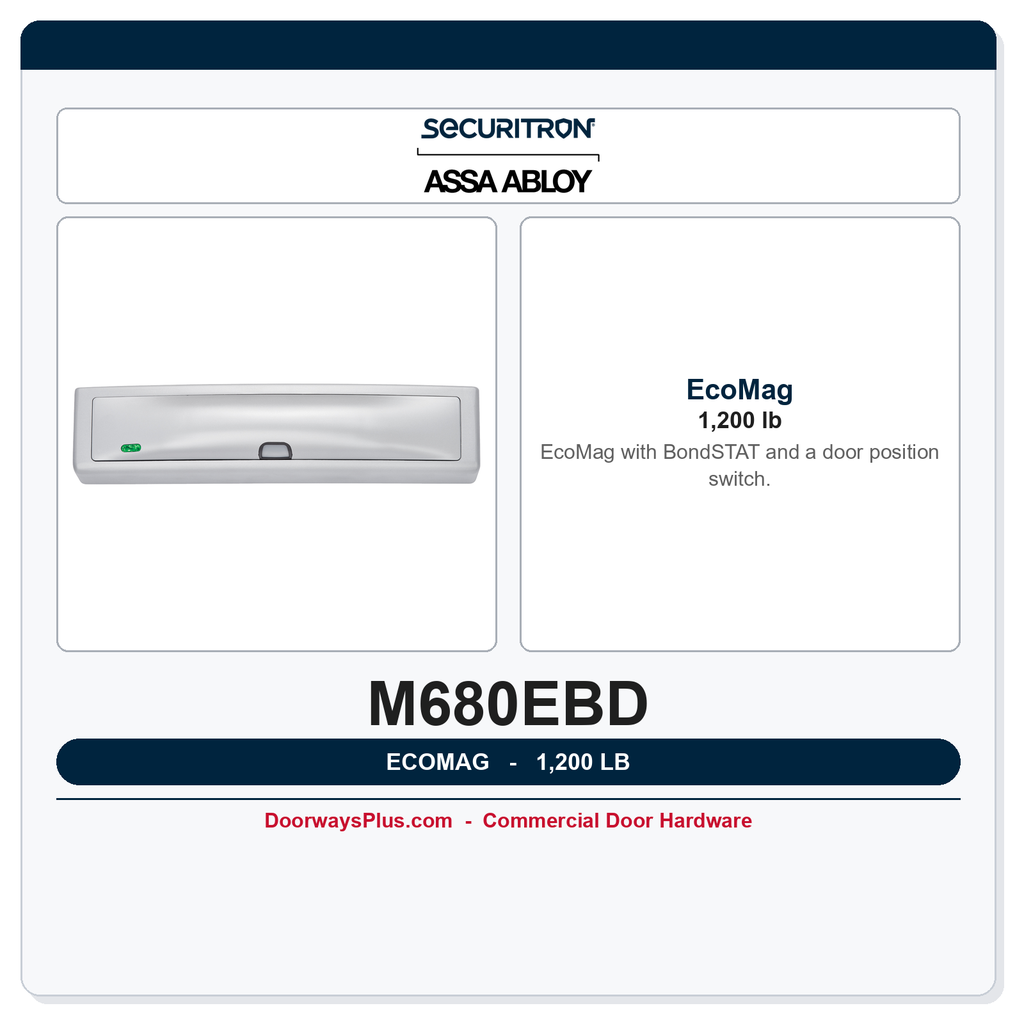

Securitron M680EBD
The Securitron M680EBD is a 1,200 lb bracket-mounted EcoMag for out-swing doors. Indoor only. Not for outdoor use. EcoMag with BondSTAT and a door position switch. Average 113 mA at 12 VDC or 52 mA at 24 VDC. UL 10C, 1-hour. Eight finishes. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release.
Institutional Grade Features & Benefits
- 1,200 lb EcoMag. Indoor only.
- EcoMag with BondSTAT and a door position switch.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M680EBD |
| Holding force | 1,200 lb |
| Electrical | Average 113 mA at 12 VDC or 52 mA at 24 VDC. |
| Use | Indoor only |
| Finishes | 605, 606, 612, 613E, 628, 629, 630, BSP |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Finish with BHMA code | 628 - Clear Anodized Aluminum or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 629 - US32 Polish Stainless |
| Brand | Securitron |
| Magnetic Lock Options | Bond Sensor, Door Status |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
