Dorma P89 Parallel Arm Bracket

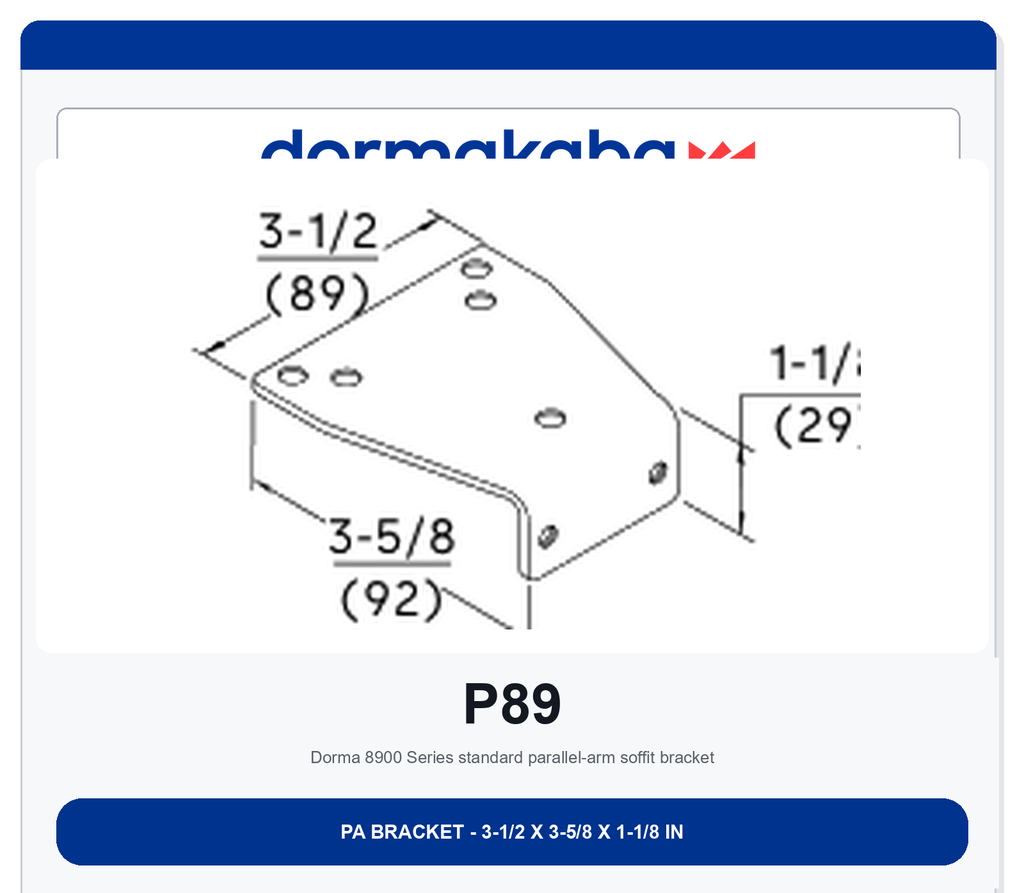

The Dorma P89 is the standard parallel-arm soffit bracket for the 8900 Series. The 8900 brochure (printed p.29) says it is furnished standard with 8900 non-hold-open and plunger hold-open parallel-arm applications. The catalog drawing is 3-1/2 x 3-5/8 x 1-1/8 in.
AF89P tri-pack closers include P89 on the complete device (brochure printed p.26). PHP also furnishes P89. This listing is the spare / replacement bracket. P86 is the 8600 / 7400 sister part -- do not order P86 for an 8900 closer.
Is P89 included with an AF89P or PHP closer?
Yes on the complete closer. Brochure printed p.26: AF89P tri-pack -- P89 included. Printed p.14: PHP -- P89 bracket furnished standard. This page is the replacement bracket when the soffit piece is missing or damaged.
P89 vs PHB vs PFT vs PD?
P89 = standard NHO / plunger-HO PA. PHB = friction hold-open PA (furnished with FHP). PFT = flush transom. PD = drop bracket to clear a surface stop (AF89 only).
Institutional Grade Features and Benefits
- Standard PA bracket: NHO and plunger HO -- not the friction-HO PHB.
- Included on AF89P / PHP: brochure p.26 / p.14 -- P89 included.
- Sisters: PFT flush transom, PD drop, BS blade-stop spacer.
- Finish on this listing: painted 689 / 695.
- This listing: does not include the closer body, arm, or cover.
Applications
Replacement soffit bracket for a Dorma 8900 parallel-arm closer when the original P89 is missing, bent, or the opening is being reworked.
Which bracket or spacer is this?
Every row below is from the 8900 brochure accessory pages (printed pp. 26 / 29 / 30) or Price List 38 printed p.188. This listing is P89 only.
| Plate | Printed size and use |
|---|---|
| P89 (this listing) | Parallel arm bracket. Furnished standard with 8900 NHO and plunger-HO parallel arms (brochure p.29). AF89P tri-pack includes P89. |
| PHB | Friction hold-open parallel bracket. Furnished standard with FHP (brochure p.29). Not this listing. |
| PFT | Parallel flush transom bracket. Use when a flush transom blocks P89 or PHB (brochure p.29). |
| PD | Parallel drop bracket. 8900 NHO parallel to clear a surface-applied stop/holder (brochure p.29; PL38 AF89 only). |
| DP89 | Drop plate. Parallel arm when the top rail is under 5-3/4 in NHO / plunger HO, or under 6 in friction with a 5/8 in stop (brochure p.29). 13 x 4-1/2 in. |
| BP89 | Backplate. Top jamb when the frame face is under 2-7/8 in. Two hole sets for 1-3/4 in or 3-1/4 in ceiling clearance (brochure p.29). 13 x 3-1/4 in. |
| MJ | Mortised jamb bracket. Regular NHO when the standard foot will not land; twin communicating doors when P89 will not fit. Flat-form must use AF8MJ (brochure p.30). |
| BS | Blade-stop spacer for P89, PHB, and PD on cased frames with applied blade stops (brochure p.30; PL38). |
| NFHD | Narrow-frame HD bracket for DS / SPA when frame depth is under 4-1/2 in (brochure p.29). |
| FTHD | Flush-transom HD bracket for DS / SPA when the soffit bracket will not fit (brochure p.30). |
Technical Specifications
Facts below are from the 8900 Series brochure accessory pages and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the closer warranty apply to the 8900 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma P89 |
| Part Type | Parallel arm bracket |
| Size | 3-1/2 x 3-5/8 x 1-1/8 in (8900 brochure printed p.29 drawing) |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8900 (8916 / 8956) |
| Printed use | Furnished standard with 8900 NHO and plunger hold-open parallel arm applications; spacer block furnished for narrow stops |
| Factory templates | |
| Finish with BHMA code | Painted 689 / 695 |
| Factory list (PL38) | 8900 brochure printed p.29: furnished standard with NHO and plunger-HO parallel arms. List $ not a standalone PL38 accessories row (P89 ships with the AF89P / PHP arm). |
| SKU prefix | CLPP89-* |
| Source | 8900 brochure printed pp. 26 / 29 / 30 ; PL38 printed p.188 |
| General - US Finishes | 689 - Spray Alumimun or 695 - Spray Dark Bronze |
| Brand | Dorma |
| Series | Dorma - 8900 Series, Dorma - 8900 Series |
| Closer Part Type | Brackets & Feet |
