Dorma MJ Mortised Jamb Bracket
The Dorma MJ is the mortised jamb bracket. The 8900 brochure (printed p.30) calls it for regular-mount non-hold-open assemblies where the frame will not take the standard foot -- molded, bull-nose, or ornate trim. Price List 38 prints it as the mortised jamb bracket for non-hold-open arms (AF89 only), list $38.
The same page says MJ also lets a parallel-arm job run between twin communicating doors when there is no room for the P89 soffit bracket. Flat-form arms must use MJ with the special-length AF8MJ arm (brochure p.26 and p.30; PL38 p.188). This listing is the bracket only.
Do I need the AF8MJ arm with MJ?
Yes on a flat-form non-hold-open arm. Brochure printed p.30: flat form must use MJ with AF8MJ. PL38: specify AF8MJ for 8600 or 8900. The MJ bracket is ordered separately (brochure p.26). This page is the bracket, not the AF8MJ arm.
When is MJ used instead of P89?
On regular mount when the standard foot will not land, or on twin communicating doors when there is no room for P89 (brochure p.30). MJ is not the standard AF89P soffit bracket.
Institutional Grade Features and Benefits
- Mortised jamb bracket: brochure p.30 -- regular NHO when the standard foot will not land.
- AF8MJ required: flat-form NHO -- special-length arm, bracket sold separately.
- Twin communicating doors: use when limited space prohibits P89.
- Finish on this listing: painted 689.
- This listing: does not include the closer body, AF8MJ arm, or cover.
Applications
Replacement mortised jamb bracket for a Dorma 8900 or 8600 regular-mount non-hold-open closer that uses AF8MJ, or a parallel twin-communicating opening that cannot take P89.
Which bracket or spacer is this?
Every row below is from the 8900 brochure accessory pages (printed pp. 26 / 29 / 30) or Price List 38 printed p.188. This listing is MJ only.
| Plate | Printed size and use |
|---|---|
| P89 | Parallel arm bracket. Furnished standard with 8900 NHO and plunger-HO parallel arms (brochure p.29). AF89P tri-pack includes P89. |
| PHB | Friction hold-open parallel bracket. Furnished standard with FHP (brochure p.29). Not this listing. |
| PFT | Parallel flush transom bracket. Use when a flush transom blocks P89 or PHB (brochure p.29). |
| PD | Parallel drop bracket. 8900 NHO parallel to clear a surface-applied stop/holder (brochure p.29; PL38 AF89 only). |
| DP89 | Drop plate. Parallel arm when the top rail is under 5-3/4 in NHO / plunger HO, or under 6 in friction with a 5/8 in stop (brochure p.29). 13 x 4-1/2 in. |
| BP89 | Backplate. Top jamb when the frame face is under 2-7/8 in. Two hole sets for 1-3/4 in or 3-1/4 in ceiling clearance (brochure p.29). 13 x 3-1/4 in. |
| MJ (this listing) | Mortised jamb bracket. Regular NHO when the standard foot will not land; twin communicating doors when P89 will not fit. Flat-form must use AF8MJ (brochure p.30). |
| BS | Blade-stop spacer for P89, PHB, and PD on cased frames with applied blade stops (brochure p.30; PL38). |
| NFHD | Narrow-frame HD bracket for DS / SPA when frame depth is under 4-1/2 in (brochure p.29). |
| FTHD | Flush-transom HD bracket for DS / SPA when the soffit bracket will not fit (brochure p.30). |
Technical Specifications
Facts below are from the 8900 Series brochure accessory pages and Price List 38 accessories. This plate is not the closer. UL/cUL, ANSI/BHMA A156.4 Grade 1, and the closer warranty apply to the 8900 closer body, not to the plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Dorma MJ |
| Part Type | Mortised jamb bracket |

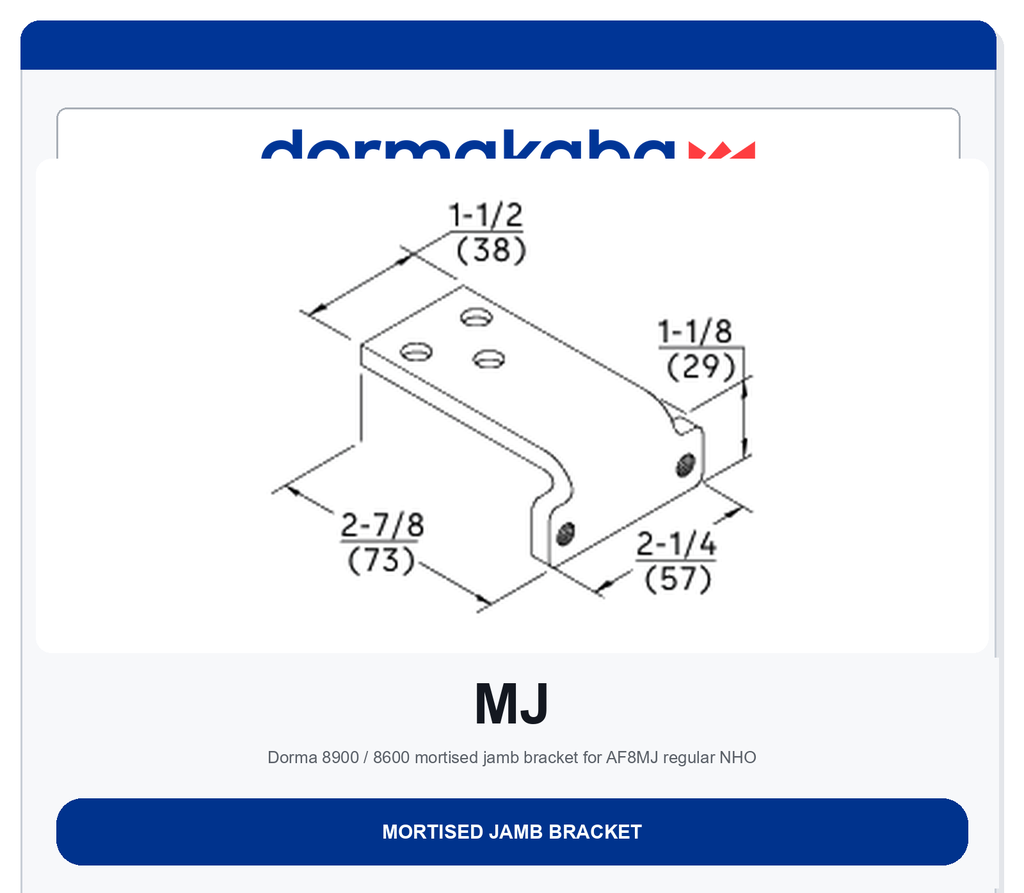

| Size | 1-1/2 x 2-7/8 x 1-1/8 in (8900 brochure printed p.30 drawing) |
| Cover | Not a cover -- accessory plate / bracket / spacer |
| Series | Dorma 8900 (8916 / 8956) |
| Printed use | Regular-mount NHO when the standard foot will not land (molded, bull-nose, or ornate trim); also twin communicating doors when P89 will not fit |
| Factory templates | |
| Finish with BHMA code | Painted 689 |
| Factory list (PL38) | PL38 printed p.188: MJ Mortised jamb bracket, non-hold open arms (AF89 only), list $38. Special-length arm required -- specify AF8MJ. |
| SKU prefix | CLPMJ-* |
| Source | 8900 brochure printed pp. 26 / 29 / 30 ; PL38 printed p.188 |
| Brand | Dorma |
| General - US Finishes | 689 - Spray Alumimun |
| Series | Dorma - 8900 Series, Dorma - 8900 Series |
| Closer Part Type | Brackets & Feet |
