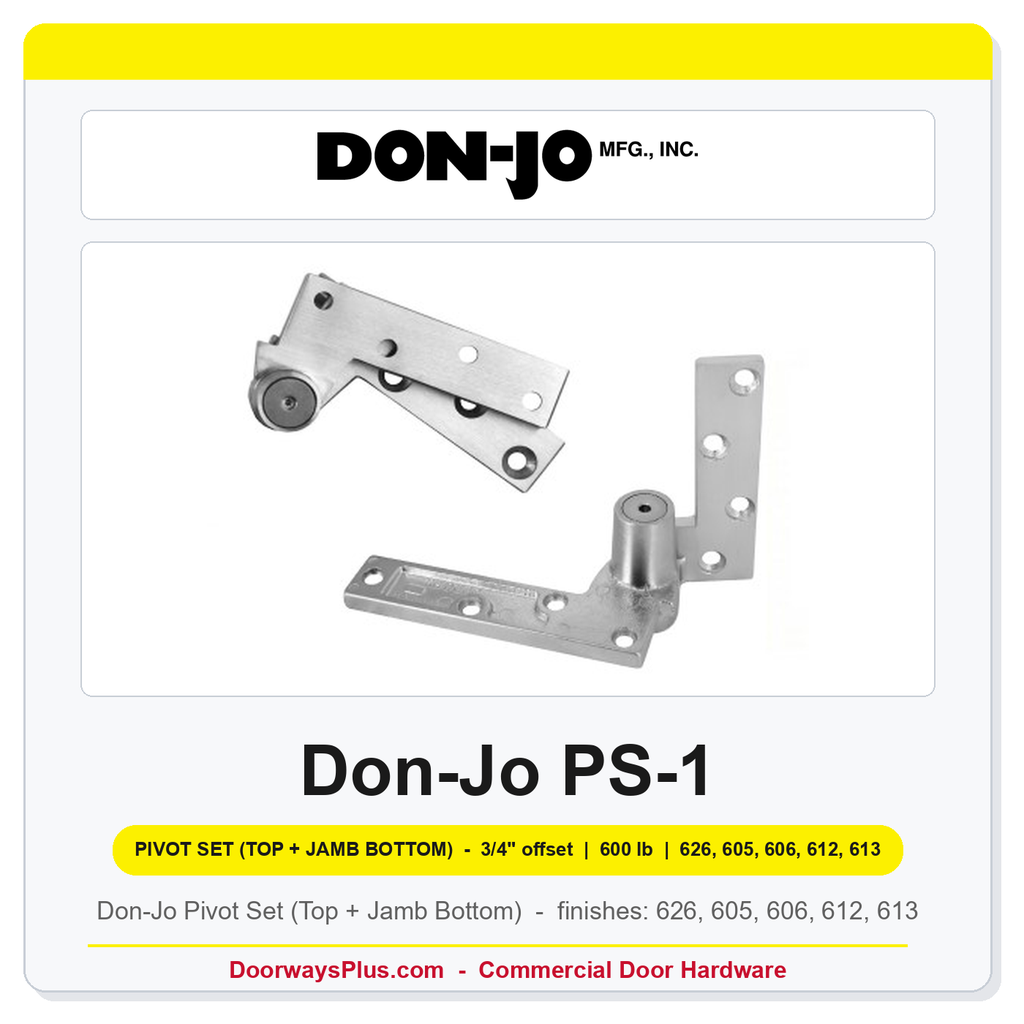

Don-Jo PS-1 Pivot Set (Top + Jamb Bottom) | 3/4" Offset | 600 lb | 626 Satin Chrome / 605 Bright Brass / 606 Satin Brass / 612 Satin Bronze / 613 Oil-Rubbed Bronze

The Don-Jo PS-1 is a pivot set (top pivot + jamb bottom pivot) engineered for 3/4 inch offset door installations with a rated 600 lb load capacity. Constructed from non-ferrous material, this offset pivot set is suited for commercial and institutional doors requiring a heavy-duty pivot solution where a standard butt hinge is not specified. The PS-1 ships as a complete set — top pivot and jamb bottom pivot — and is available handed (specify LHR or RHR at time of order) in five finish options: 626 satin chrome (US26D), 605 bright brass (US3), 606 satin brass (US4), 612 satin bronze (US10), and 613 oil-rubbed bronze (US10B).

3/4" Offset Pivot Configuration

The PS-1 delivers a true 3/4 inch pivot offset, the industry-standard geometry for offset pivot door hardware on commercial frames.

• Top + Jamb Bottom Included: The set ships with both the top pivot and the jamb-mounted bottom pivot, providing everything needed to hang the door at the correct pivot axis without sourcing components separately.
• Handed Application: The PS-1 is handed — specify left-hand reverse (LHR) or right-hand (RHR) at the time of order; both hands are available at the same price.

600 lb Load Capacity

The PS-1 is rated at 600 lb, making it appropriate for solid-core wood and hollow-metal commercial doors where pivot hardware must support significant door weight.

• Non-Ferrous Construction: The non-ferrous material resists corrosion and provides the strength-to-weight profile expected of commercial-grade offset pivot hardware.
• Intermediate Pivot Guidance: For doors 60 to 90 inches in height, one intermediate pivot is standard; each additional 30 inches of door height warrants an additional intermediate pivot — the Don-Jo IP-34 series addresses those requirements separately.

Five Finish Options for Specification Flexibility

The PS-1 is available in five architectural finishes, allowing it to coordinate with the surrounding door hardware package without custom finishing.

• 626 Satin Chrome (US26D): The most widely specified commercial satin chrome finish, compatible with stainless and chrome hardware families.
• 605 Bright Brass (US3) / 606 Satin Brass (US4): Traditional brass finishes for institutional and hospitality applications requiring warm-tone hardware.
• 612 Satin Bronze (US10) / 613 Oil-Rubbed Bronze (US10B): Dark bronze finishes suited to period architecture and dark anodized aluminum frame packages.

Technical Details

To order, select your finish and specify handing (LHR or RHR) at checkout or by contacting our team. The Don-Jo PS-1 ships direct from the factory; please allow 3–10 business days for fulfillment.
