Don-Jo PS-2 Pivot Set (Top + Floor Bottom) | 3/4" Offset | 626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil-Rubbed Bronze

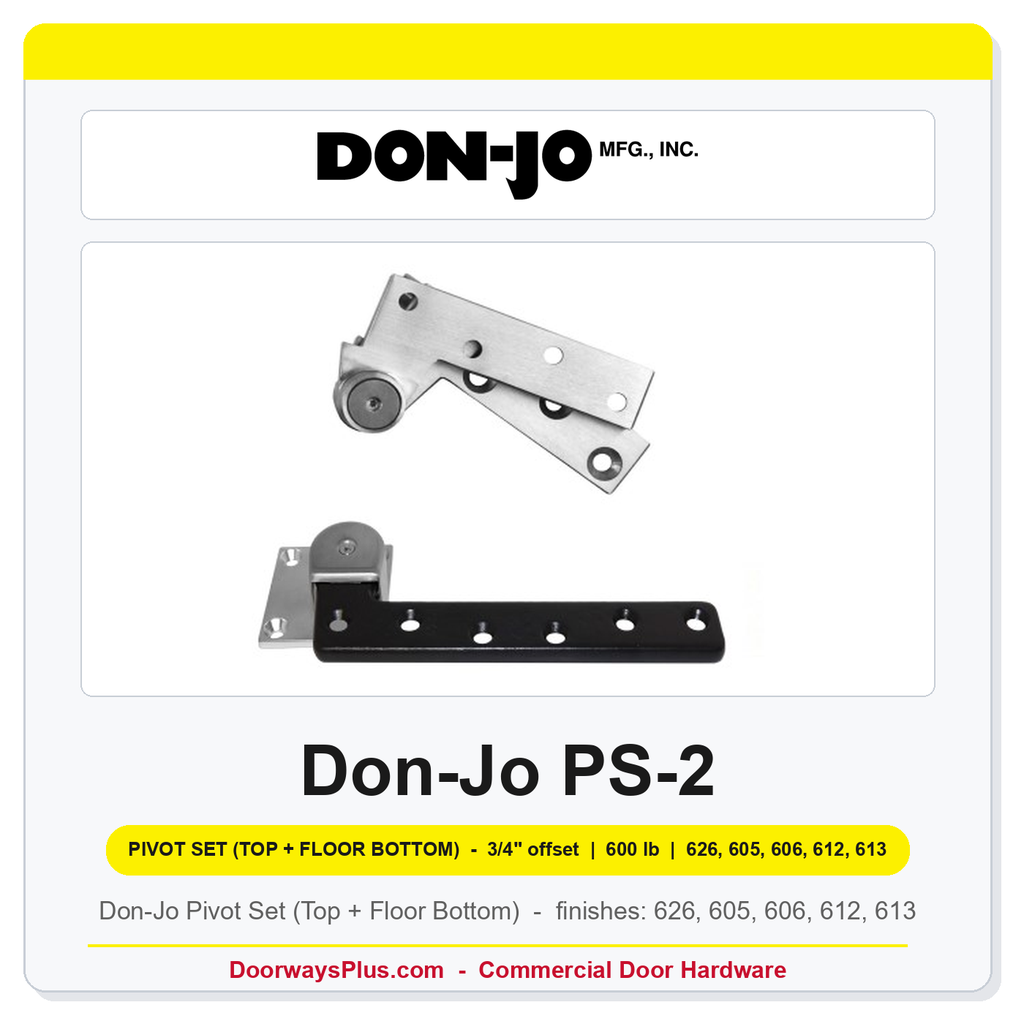

The Don-Jo PS-2 is a pivot set (top + floor bottom) delivering a 3/4-inch offset and a 600 lb load capacity in a non-ferrous construction — purpose-built for heavy commercial and institutional door applications where a full butt-hinge layout is impractical or where a clean pivot-hung appearance is required. Supplied as a complete set, the PS-2 includes the top pivot and floor-bottom pivot along with a full fastener package of wood screws, machine screws, 1/4-20 x 3/4" flat-head machine screws, and lead expansion shield anchors, so the installer arrives with everything needed in a single box. Available in five finish options — 626 Satin Chrome (US26D), 605 Bright Brass (US3), 606 Satin Brass (US4), 612 Satin Bronze (US10), and 613 Oil-Rubbed Bronze (US10B) — the PS-2 coordinates with virtually any commercial door hardware schedule.

3/4" Offset Pivot Geometry

The 3/4-inch offset positions the pivot point away from the door face for correct swing clearance and balanced door operation.

• Offset dimension: The sourced 3/4" pivot offset is the industry-standard geometry for commercial offset pivot installations, providing proper door-to-frame clearance throughout the full swing arc.
• Non-handed design: The PS-2 pivot set is non-handed, meaning a single SKU covers left-hand and right-hand door applications — simplifying ordering and reducing jobsite inventory.

600 lb Load Rating — Heavy Commercial Capacity

The PS-2 is rated to 600 lbs, making it suitable for wide, heavy solid-core or hollow-metal doors in high-traffic commercial environments.

• Load capacity: A 600 lb weight rating supports oversized commercial doors without deflection, meeting the structural demands of heavy-duty pivot door hardware specifications.
• Non-ferrous material: Constructed from non-ferrous alloy, the pivot components resist corrosion and galvanic interaction, maintaining long-term performance in demanding environments where moisture exposure is a concern.

Complete Set — Top Pivot + Floor-Bottom Pivot with Fasteners

The Don-Jo PS-2 ships as a complete pivot set including both the top pivot and the floor-bottom pivot along with all installation fasteners.

• Fastener package: Each set includes 8 wood screws, 8 machine screws, 9 machine screws (1/4-20 x 3/4" FPHMS), and 3 lead expansion shield anchors — covering wood-frame, steel-frame, and masonry floor-bottom anchor conditions for a complete pivot door installation.
• Shelf pack of 1: Sold as a single pivot set per package, allowing precise quantity ordering for commercial door hardware schedules with no overage.

Technical Details

Select your finish from the options above and add to cart. The Don-Jo PS-2 is a non-stock item that ships direct from Don-Jo Manufacturing, with a typical lead time of 3–10 business days. For projects requiring intermediate pivots, note that doors from 60 to 90 inches in height use one intermediate pivot; each additional 30 inches of door height warrants an additional intermediate pivot — contact our team for assistance specifying the correct intermediate pivot to pair with the PS-2 set.
