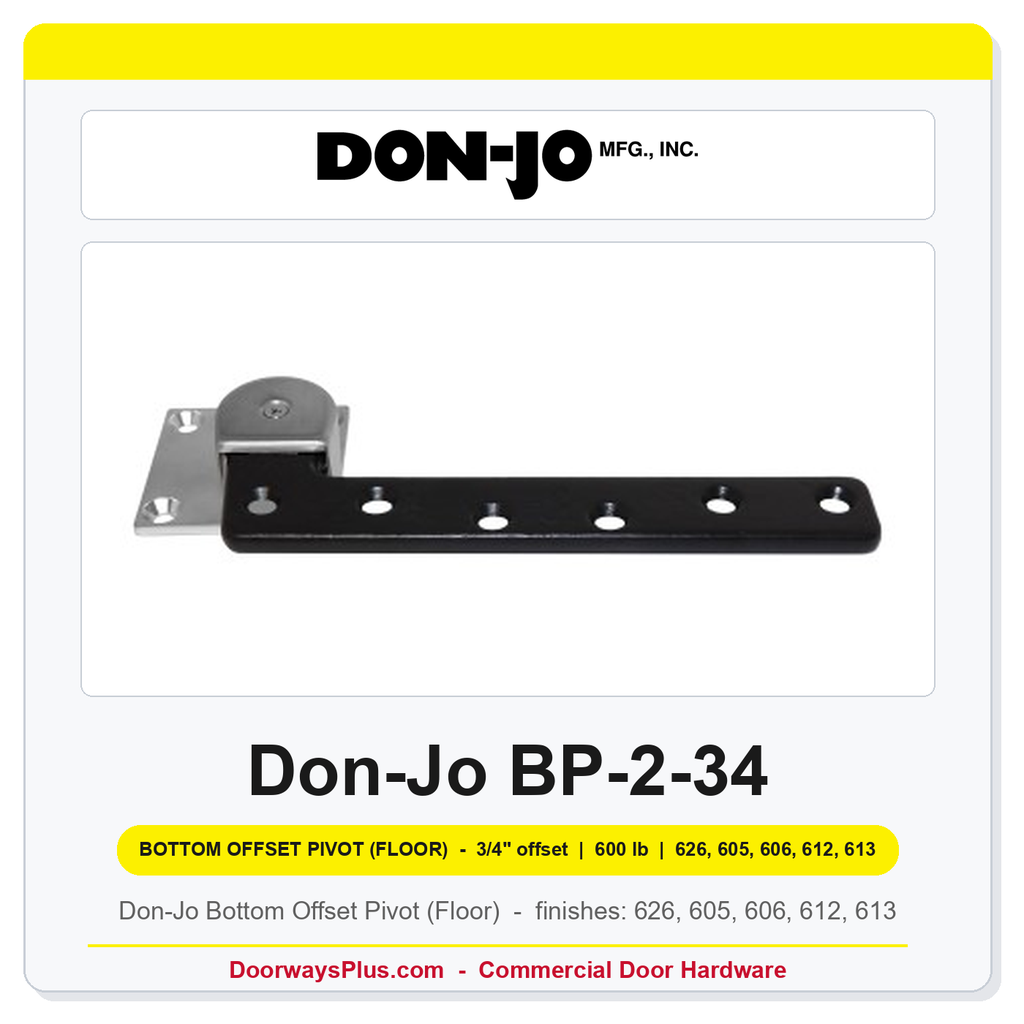

Don-Jo BP-2-34 Bottom Offset Pivot (Floor) | 8-7/16" x 1-3/16" | 626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil-Rubbed Bronze
The Don-Jo BP-2-34 is a bottom offset pivot (floor) designed to support heavy commercial doors up to 600 lbs with a precise 3/4" pivot offset. Constructed from non-ferrous material, this floor pivot measures 8-7/16" x 1-3/16" and installs at the base of the door to provide a smooth, durable pivot action suited to high-traffic commercial and institutional openings. Available in five architectural finishes — 626 satin chrome (US26D), 605 bright brass (US3), 606 satin brass (US4), 612 satin bronze (US10), and 613 oil-rubbed bronze (US10B) — the BP-2-34 coordinates with a wide range of door hardware specifications.
3/4" Offset and 600 lb Load Rating
The BP-2-34 delivers a 3/4" pivot offset combined with a 600 lb load capacity for demanding commercial pivot door applications.
- Heavy-Duty Load Rating: Rated for doors up to 600 lbs, making this bottom pivot suitable for large, heavy commercial pivot doors in high-traffic corridors and lobbies.
- 3/4" Pivot Offset: The 3/4-inch offset geometry positions the pivot point correctly for standard offset pivot door systems, ensuring proper clearance and swing arc.
Non-Ferrous Construction
The BP-2-34 is manufactured from non-ferrous material, providing inherent corrosion resistance appropriate for commercial interior and exterior threshold environments.
- Corrosion-Resistant Material: Non-ferrous construction resists rust and oxidation, reducing maintenance concerns in commercial floor pivot installations.
- Architectural Finish Options: Five available finishes — including 626 satin chrome, 605 bright brass, 606 satin brass, 612 satin bronze, and 613 oil-rubbed bronze — allow specification matching across a full hardware schedule.
Machine Screw and Lead Expansion Shield Fastener System
The BP-2-34 includes a complete fastener package engineered for secure floor-mounted pivot installation.
- Included Fasteners: Ships with 9 machine screws (1/4-20 x 3/4" FPHMS) and 3 lead expansion shield anchors, providing everything needed for a code-compliant bottom pivot floor anchor installation.
- Non-Handed Design: The BP-2-34 is non-handed, simplifying specification and reducing inventory requirements for commercial pivot door projects.
Technical Details
| Manufacturer | Don-Jo Manufacturing |
| Model Number | BP-2-34 |
| Product Type | Bottom Offset Pivot (Floor) |
| Pivot Offset | 3/4" |
| Load Capacity | 600 lbs |
| Width | 8-7/16" |
| Height | 1-3/16" |
| Thickness | 3/8" |
| Material | Non-Ferrous |
| Handing | Non-Handed |
| Fasteners Included | 9 ea Machine Screws 1/4-20 x 3/4" FPHMS; 3 ea Lead Expansion Shield Anchors |
| Available Finishes | 626 Satin Chrome (US26D), 605 Bright Brass (US3), 606 Satin Brass (US4), 612 Satin Bronze (US10), 613 Oil-Rubbed Bronze (US10B) |
| Shelf Pack | 1 |
Select your finish at checkout. The Don-Jo BP-2-34 is a non-stock item that ships directly from Don-Jo Manufacturing with a lead time of approximately 3–10 business days.
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Don-Jo |
| Base Material | Non Ferrous |
| Door Hand | Non Handed |
| Pivot Type | Bottom Pivot |
