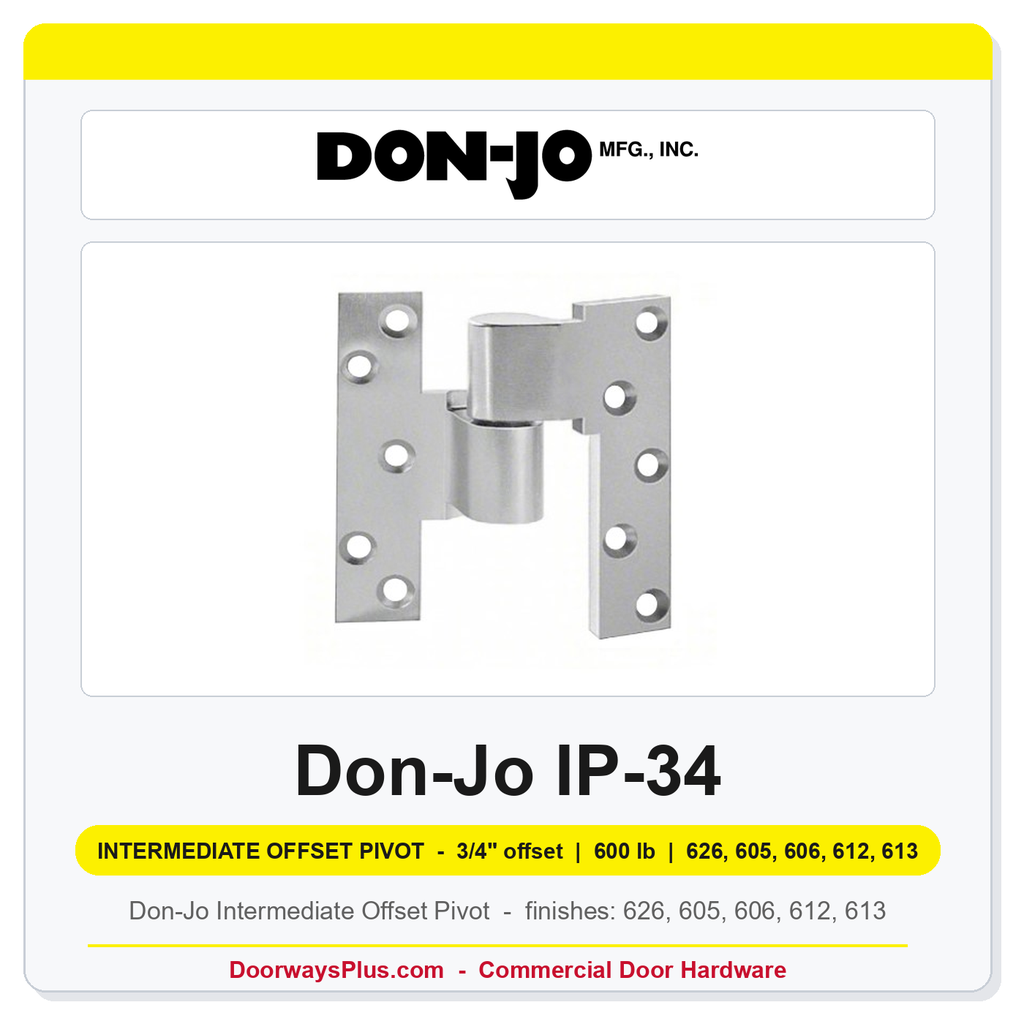

Don-Jo IP-34 Intermediate Offset Pivot | 5" x 4-1/4" | 626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil-Rubbed Bronze

The Don-Jo IP-34 is an intermediate offset pivot designed for heavy commercial door applications requiring a 3/4" pivot offset and a 600 lb. load capacity. Measuring 5" x 4-1/4" with a 5/16" thickness, this non-ferrous pivot installs at the intermediate position on the door edge and frame, providing the structural support needed for tall or heavy door assemblies. Compliant with ANSI CO7321, the IP-34 is available handed (LHR or RHR at the same price) and ships in five finish options: 626 satin chrome (US26D), 605 bright brass (US3), 606 satin brass (US4), 612 satin bronze (US10), and 613 oil-rubbed bronze (US10B) — making it straightforward to match existing door hardware on commercial or institutional projects.

3/4" Offset Design for Commercial Door Pivot Systems

The IP-34 delivers the standard 3/4" pivot offset required for proper door swing clearance in full-length pivot door applications.

• Offset geometry: The 3/4" pivot offset positions the door correctly relative to the frame, ensuring full clearance and reducing edge-binding common in heavy commercial doors.
• System compatibility: Pairs with top and bottom offset pivots to form a complete pivot set; cross-references with ABH 019 and Rixson M19 intermediate pivot formats for fit verification (fit reference only).

600 lb. Load Capacity on Non-Ferrous Construction

Built from non-ferrous material, the IP-34 carries a rated 600 lb. load capacity suited for solid-core wood, hollow metal, and other heavy commercial door slabs.

• Load rating: The 600 lb. rated capacity supports oversized or heavy door assemblies without the risk of pivot failure or premature wear.
• Non-ferrous construction: Resists corrosion in high-traffic commercial and institutional environments, making this pivot a practical choice where longevity and low maintenance matter.

Intermediate Pivot Placement and Door Height Guidelines

The intermediate offset pivot position is critical for distributing load on taller door assemblies, following standard commercial door pivot spacing rules.

• Intermediate pivot rule: Doors 60 to 90 inches tall require one intermediate pivot; each additional 30 inches of door height warrants one additional intermediate pivot to maintain proper load distribution.
• ANSI CO7321 compliance: Meets the ANSI CO7321 standard, supporting specification on projects with defined hardware compliance requirements.
• Handing: The IP-34 is handed LHR or RHR at the same price — specify handing at time of order to ensure correct installation.

Technical Details

The Don-Jo IP-34 is a non-stock item that ships directly from Don-Jo Manufacturing. Select your finish and handing (LHR or RHR) at checkout. Estimated lead time is 3–10 business days from order confirmation.
