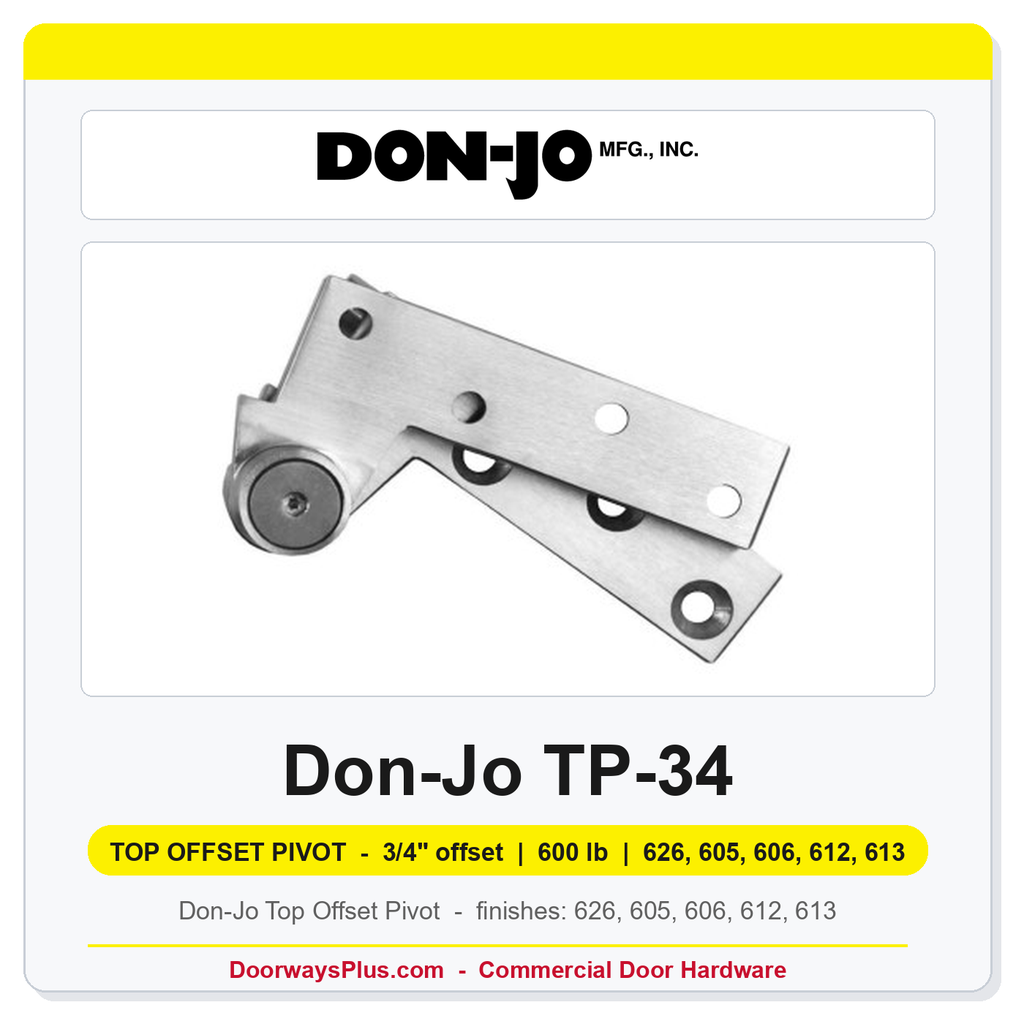

Don-Jo TP-34 Top Offset Pivot | 4-1/4" x 1-1/16" | 626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil-Rubbed Bronze

The Don-Jo TP-34 is a top offset pivot designed for commercial and architectural door applications requiring a precise 3/4 inch offset and a robust 600 lb load capacity. Measuring 4-1/4" wide x 1-1/16" tall x 1/4" thick, this pivot is constructed from non-ferrous material for corrosion resistance and long-term durability. It ships as a shelf pack of 1 complete unit with 8 wood screws and 8 machine screws included, and is available in five finish options: 626 Satin Chrome (US26D), 605 Bright Brass (US3), 606 Satin Brass (US4), 612 Satin Bronze (US10), and 613 Oil-Rubbed Bronze (US10B) — making it straightforward to coordinate with existing door hardware on commercial, institutional, and high-traffic openings.

3/4" Offset Design for Architectural Compatibility

The TP-34 delivers a true 3/4 inch pivot offset, the standard geometry specified for offset pivot door systems in commercial construction and architectural hardware schedules.

• Precision Offset: The 3/4" offset pivot geometry positions the door's rotation point correctly relative to the frame, enabling proper door swing clearance and alignment on top offset pivot door installations.
• Non-Handed: The non-handed configuration means a single unit works for right-hand or left-hand door swings, simplifying specification and reducing the risk of ordering errors on commercial projects.

600 lb Load Capacity for Heavy Commercial Doors

The TP-34 is rated for 600 lb load capacity, making it suitable for heavy solid-core wood, hollow metal, and architectural doors common in commercial and institutional environments.

• Heavy-Duty Rating: A 600 lb capacity top pivot supports demanding high-traffic door openings in schools, healthcare facilities, offices, and public buildings where door weight and cycle frequency are elevated.
• Non-Ferrous Construction: Built from non-ferrous material, the TP-34 resists corrosion in interior and covered exterior applications, contributing to a longer service life without surface degradation.

Five-Finish Availability for Hardware Schedule Matching

The Don-Jo TP-34 is offered in five BHMA-referenced finishes, allowing architects and contractors to match the top pivot to the finish specified across the full door hardware schedule.

• 626 Satin Chrome (US26D): The most widely specified satin chrome top offset pivot finish for contemporary commercial interiors; pairs with stainless and chrome-finish levers and closers.
• 605 Bright Brass (US3) / 606 Satin Brass (US4): Traditional brass-finish offset pivot options for institutional and historic renovation projects requiring warm-tone hardware coordination.
• 612 Satin Bronze (US10) / 613 Oil-Rubbed Bronze (US10B): Bronze-finish top pivot selections suited to upscale commercial, hospitality, and architectural applications with dark-tone hardware palettes.

Technical Details

The Don-Jo TP-34 is a non-stock item that ships directly from Don-Jo Manufacturing. Select your finish at checkout; allow approximately 3–10 business days for processing and shipment. For pivot sets requiring an intermediate pivot, see the companion Don-Jo IP-34 listing — doors from 60 to 90 inches tall typically use one intermediate pivot, with an additional intermediate recommended for each additional 30 inches of door height.

Ordering & Lead Time

Non-stock, ships from Don-Jo. Lead time: 3-10 business days.
