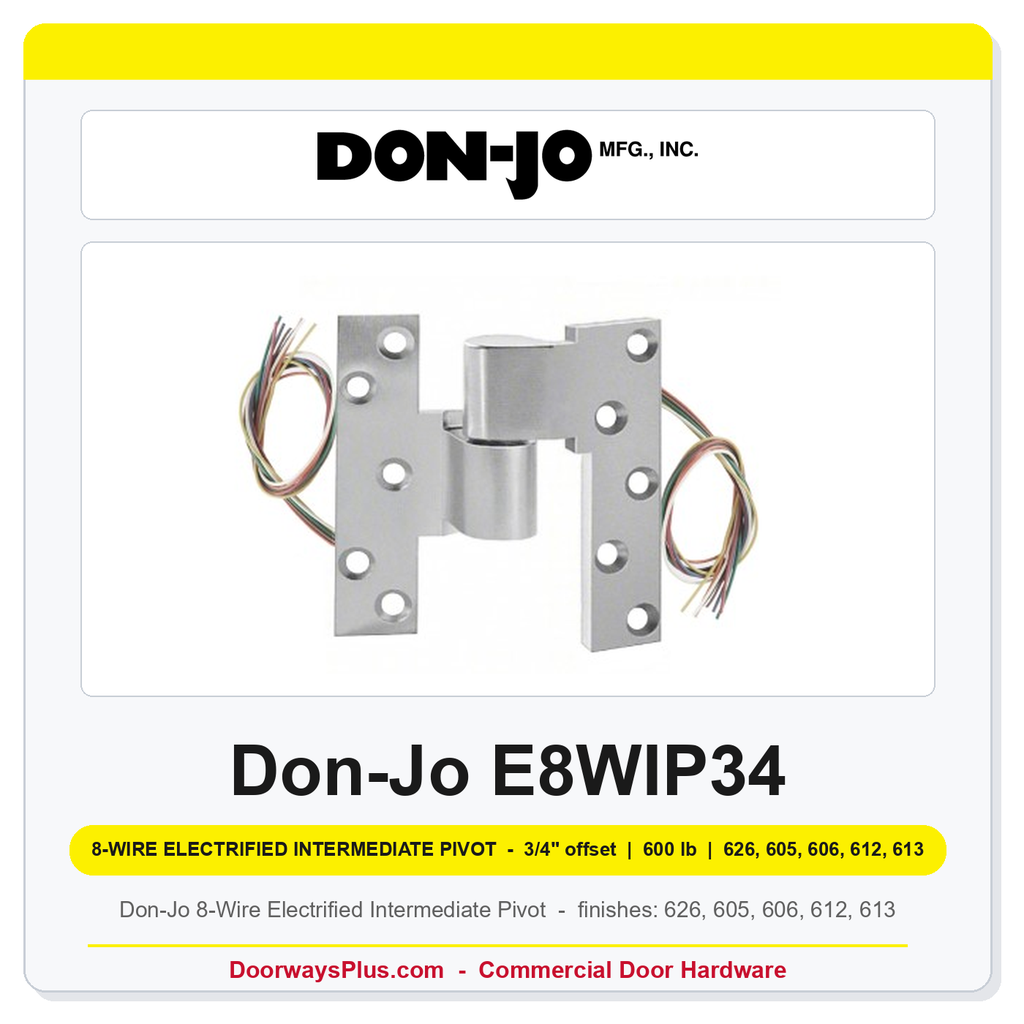

Don-Jo E8WIP34 8-Wire Electrified Intermediate Pivot | 5" x 4-1/4" | Multi-Finish
The Don-Jo E8WIP34 is an 8-wire electrified intermediate pivot engineered for access-controlled openings that require power transfer through the pivot point. With a 3/4" offset and a 600 lb load capacity, this pivot handles heavy commercial and institutional doors while routing up to eight conductors cleanly through the pivot body — eliminating the need for an exposed wire loop or overhead power transfer device. The body is constructed of non-ferrous material and is available in five architectural finishes: 626 satin chrome (US26D), 605 bright brass (US3), 606 satin brass (US4), 612 satin bronze (US10), and 613 oil-rubbed bronze (US10B). Handing is LHR or RHR at the same price. Conforms to ANSI CO7321.
8-Wire Power Transfer Through the Pivot Body
The defining feature of the E8WIP34 is its 8-conductor internal wiring path, which carries power and signal continuously through the pivot as the door swings.
- Concealed conductor routing: Eight wires pass through the pivot body, supporting electrified hardware such as electric strikes, mag-locks, request-to-exit devices, and door position switches — all without surface-mounted wire loops that can snag or wear.
- Continuous power transfer: Because conductors run internally through the pivot axis, the connection is maintained through the full arc of door travel, making the E8WIP34 the correct choice for electrified access control on pivot-hung doors.
3/4" Offset and 600 lb Load Capacity
The 3/4" pivot offset positions the door face flush with the frame stop, providing a clean reveal consistent with full-mortise pivot applications on heavy-duty commercial openings.
- Heavy-duty load rating: The 600 lb rated capacity accommodates solid-core wood, hollow metal, and aluminum-stile doors commonly found in schools, hospitals, government facilities, and high-traffic commercial corridors.
- Non-ferrous construction: The non-ferrous pivot body resists corrosion and is compatible with aluminum and stainless hardware schedules where magnetic interference or oxidation is a concern.
Intermediate Pivot Placement and ANSI Compliance
The E8WIP34 functions as the intermediate (center) pivot in a full pivot set and is sized and located according to standard pivot-height rules.
- Intermediate pivot rule: Doors 60 to 90 inches tall use one intermediate pivot; each additional 30 inches of door height warrants an additional intermediate pivot — use this guideline when scheduling the E8WIP34 for taller openings.
- ANSI CO7321 template: Conforms to ANSI CO7321, allowing cross-referencing and specification against other manufacturer pivot templates for competitive bidding and retrofit projects.
- Fastener package included: Each unit ships with 8 wood screws and 8 machine screws, covering both wood-door and hollow-metal-door installations without a separate hardware order.
Technical Details
| Manufacturer | Don-Jo Manufacturing |
| Model Number | E8WIP34 |
| Product Type | 8-Wire Electrified Intermediate Pivot |
| ANSI Template | CO7321 |
| Pivot Offset | 3/4" |
| Width | 5" |
| Height | 4-1/4" |
| Thickness | 5/16" |
| Load Capacity | 600 lbs |
| Material | Non-Ferrous |
| Conductor Count | 8 wires |
| Handing | LHR or RHR (same price) |
| Fasteners Included | 8 wood screws, 8 machine screws |
| Shelf Pack | 1 |
| Available Finishes | 626 Satin Chrome (US26D), 605 Bright Brass (US3), 606 Satin Brass (US4), 612 Satin Bronze (US10), 613 Oil-Rubbed Bronze (US10B) |
Select your finish and handing at checkout. The Don-Jo E8WIP34 is a non-stock item that ships directly from Don-Jo Manufacturing; please allow 3–10 business days for fulfillment. Contact our team with your opening schedule if you need to confirm compatibility with a top pivot or bottom pivot in a complete pivot set.
Ordering & Lead Time
Non-stock, ships from Don-Jo. Lead time: 3-10 business days.
| General - US Finishes | US26D - Satin Chrome or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Door Hand | RHR - Right Hand Reverse or LHR - Left Hand Reverse |
| Brand | Don-Jo |
| Electric Hinge Options | 8 Wire |
| Base Material | Non Ferrous |
| Pivot Type | Intermediate Pivot |
