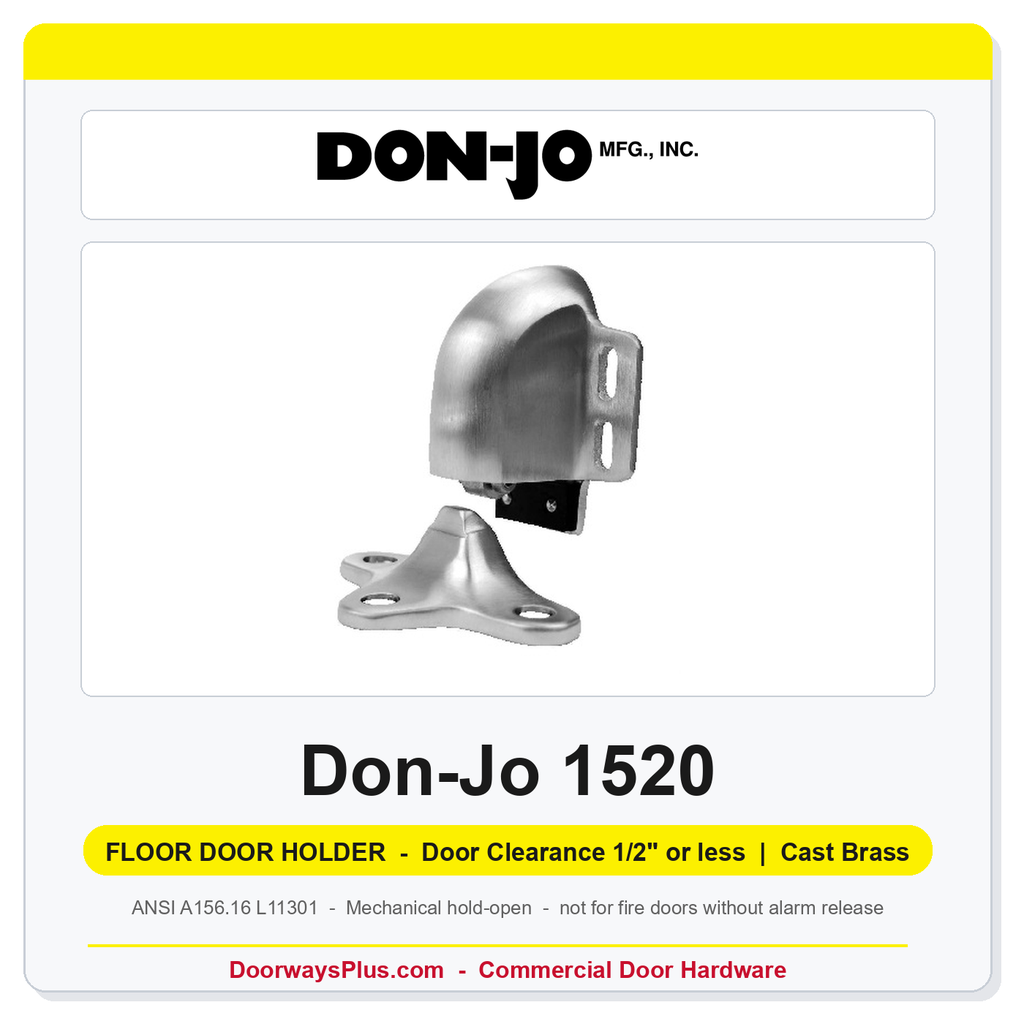

Don-Jo 1520 Floor Door Holder
The Don-Jo 1520 is a floor-mounted door holder in cast brass: a cast pedestal on the floor engages a strike on the door to hold it open, and releases with a pull.
Floor-mounted holders are chosen by the measured gap between the door bottom and the floor — this model fits a clearance of 1/2" or less. Measure the clearance before ordering. It is a mechanical holder, not an alarm-released hold-open.
Specification highlights
- Cast Brass.
- ANSI/BHMA A156.16 L11301.
- Fasteners supplied for the mounting shown in the specification table.
Ordering notes
Order as number + finish. A stop limits the swing; a holder holds the door open — do not substitute one for the other on a schedule. This item is made to order.
Technical Specifications
| Model | Don-Jo 1520 |
| Type | Floor Door Holder |
| Material | Cast Brass |
| Door-to-Floor Clearance | 1/2" or less |
| Holder Size | 3" W x 3-1/2" H |
| Mounting | Floor-mounted pedestal with door-mounted strike |
| ANSI/BHMA | A156.16 — L11301 |
| Fasteners Supplied | 3 ea. 1/4-20 x 3/4" MS, 3 ea. 1/4 x 1-1/4" SMS, 4 ea. #12-24 x 1" MS, 4 ea. #12 x 1" SMS, 3 ea. Lead Expansion Shield |
| Finishes Carried | 626 |
| Lead Time | 3–10 business days (made to order) |
| Brand | Don-Jo |
| General - US Finishes | US26D - Satin Chrome |
