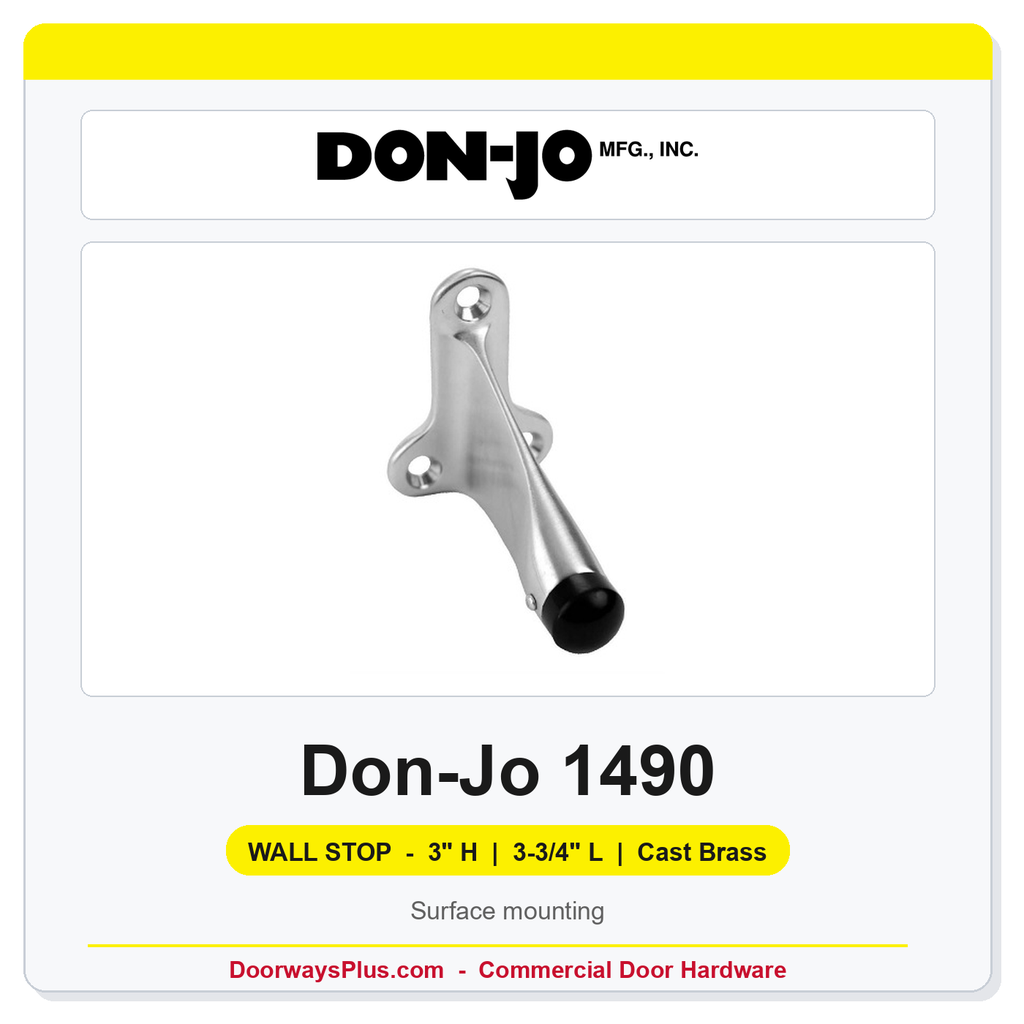

Don-Jo 1490 Wall Stop
The Don-Jo 1490 is a wall-mounted door stop in cast brass, 3" high on a base.
Wall stops are the standard way to limit a door's swing on commercial openings; choose the height by the door undercut and where the door should meet the stop. Mount with the supplied fasteners into the wall.
Specification highlights
- Cast Brass, 3" high.
- Fasteners supplied for the mounting shown in the specification table.
Ordering notes
Order as number + finish. A stop limits the swing; a holder holds the door open — do not substitute one for the other on a schedule. This item is made to order.
Technical Specifications
| Model | Don-Jo 1490 |
| Type | Wall Stop |
| Material | Cast Brass |
| Height | 3" |
| Length | 3-3/4" |
| Mounting | Surface mount |
| Fasteners Supplied | 3 ea. 1/4-20 x 3/4" MS, 3 ea. 1/4 x 1-1/2" SMS, 3 ea. Plastic Anchor, 3 ea. Lead Expansion Shield |
| Finishes Carried | 626 |
| Lead Time | 3–10 business days (made to order) |
| Brand | Don-Jo |
| General - US Finishes | US26D - Satin Chrome |
| Stop Type | Wall Stop |
| Height | 3 inch |
