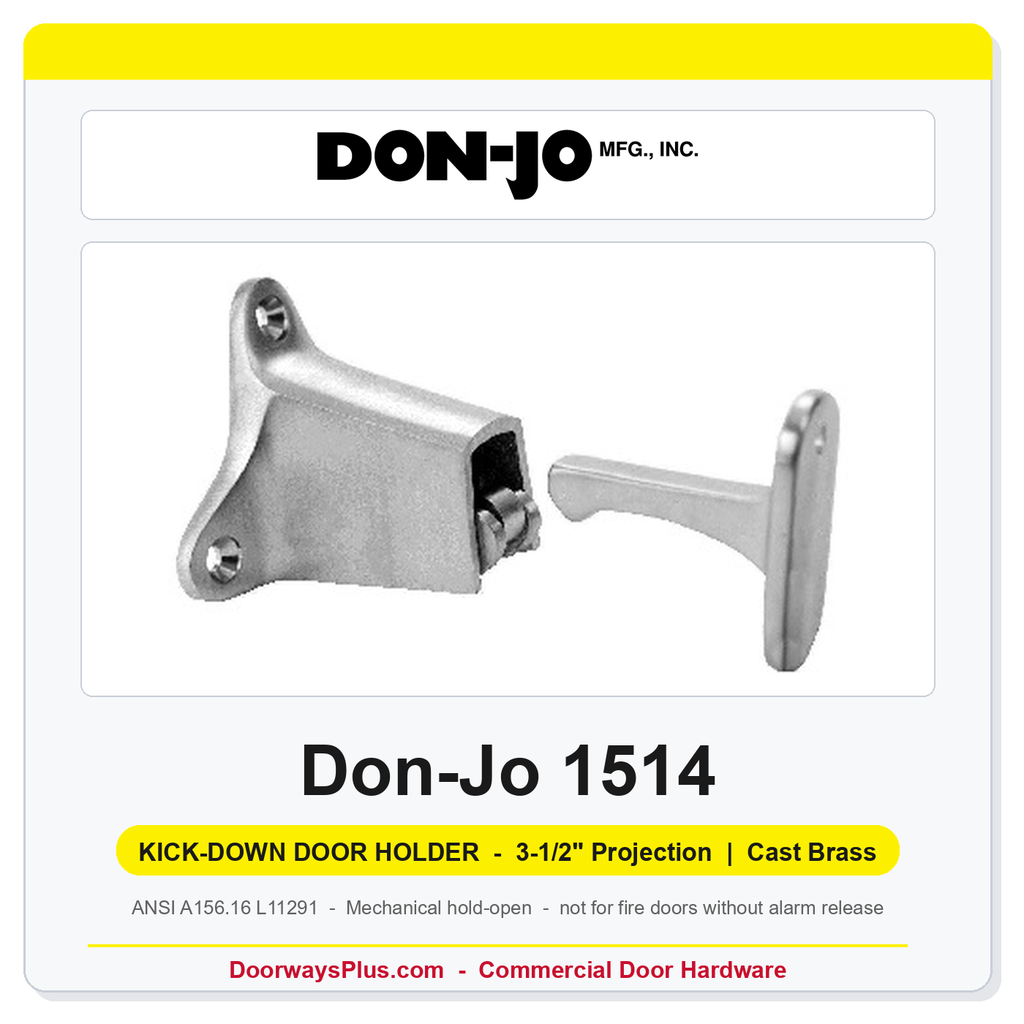

Don-Jo 1514 Kick-Down Door Holder
The Don-Jo 1514 is a foot-operated kick-down door holder in cast brass. Flip it down with a foot to hold the door open, kick it up to release; 3-1/2" projection.
Kick-down holders go on doors that get propped open for deliveries, cleaning or traffic — back-of-house, storage and office doors. Do not use a hold-open of any kind on a fire door unless it releases on alarm; this is a mechanical holder.
Specification highlights
- Cast Brass, 3-1/2" projection.
- ANSI/BHMA A156.16 L11291.
- Fasteners supplied for the mounting shown in the specification table.
Ordering notes
Order as number + finish. A stop limits the swing; a holder holds the door open — do not substitute one for the other on a schedule. This item is made to order.
Technical Specifications
| Model | Don-Jo 1514 |
| Type | Kick-Down Door Holder |
| Material | Cast Brass |
| Projection | 3-1/2" |
| Mounting | Door mounted |
| ANSI/BHMA | A156.16 — L11291 |
| Fasteners Supplied | 2 ea. #10-24 x 1-1/4" MS, 5 ea. #10 x 1" SMS, 3 ea. Plastic Anchors |
| Finishes Carried | 626 |
| Lead Time | 3–10 business days (made to order) |
| Brand | Don-Jo |
| General - US Finishes | US26D - Satin Chrome |
| Stop Type | Door Holder - Door Mounted |
