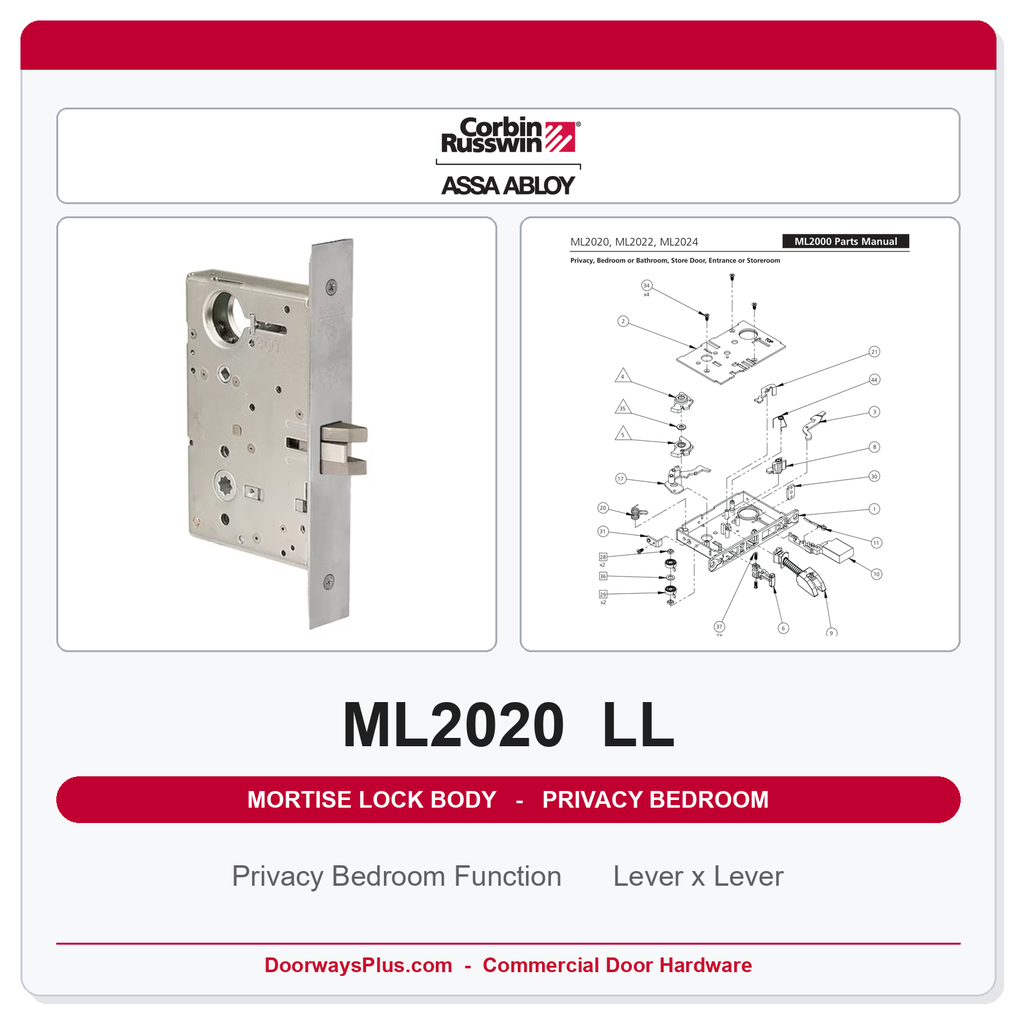

Corbin Russwin LB-ML2020 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F02)

Price:

$ 606.72

Free shipping for all order of $700
Place your order by 2:00 PM EST for same day shipping for all items in stock
  2. Shop
  3. Corbin Russwin LB-ML2020 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F02)
Corbin Russwin LB-ML2010 Mortise Lock Body - Passage or Closet Function (ANSI F01)
Corbin Russwin LB-ML2010 Mortise Lock Body - Passage or Closet Function (ANSI F01)
$ 522.98
$ 522.98
Corbin Russwin LB-ML2030 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F19)
Corbin Russwin LB-ML2030 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F19)
$ 606.72
$ 606.72

Corbin Russwin LB-ML2020 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F02)

https://www.doorwaysplus.com/web/image/product.template/46055/image_1920?unique=0748fc1
(0 review)

Corbin Russwin LB-ML2020 Mortise Lock Body - Privacy Bedroom or Bathroom Function

*** Lead Time(s):
US26D: 3-5 Days
All Other Finishes: 2-4 Weeks ***

$ 606.72 606.72 USD $ 606.72

$ 606.72

Not Available For Sale

  • Brand
  • Finish with BHMA code
  • ANSI Mortise Lock Function
  • Series
  • Door Handing
  • Part Type

This combination does not exist.

Contact Us
Share :

Corbin Russwin LB-ML2020 Privacy Bedroom or Bathroom Function Mortise Lock Body (ANSI F02)

Corbin Russwin ML2020 Privacy Bedroom or Bathroom function diagram, catalog 45300 12/25

Lock Operation Detailed

  • Latchbolt by grip* either side, when deadbolt is retracted.
  • Deadbolt by thumbturn grip inside or by emergency release tool outside.
  • No simultaneous deadbolt and latch retraction.
  • Non-panic release.
  • Not available with M19S or M19SN.

The Corbin Russwin LB-ML2020 is the bare ML2000 Series heavy-duty mortise lock body (case only) configured for the Privacy Bedroom or Bathroom function ANSI/BHMA F02. Price Book No. 42 page 106 Lock Only sells this as trim key LL (Lever x Lever): it includes the lockcase, armored front, strike and screw pack. Cylinder(s) and thumbturn lever are not included. Order the complete lockset when you need levers, roses, or escutcheons on the same opening.

Privacy Bedroom Function -- What It Means

The Privacy Bedroom or Bathroom function (ANSI/BHMA F02) is the catalog operation printed for this lockbody.

Institutional Grade Features and Benefits

  • Case only -- LL Lever x Lever. This listing is the lockcase, not a complete lockset. Rebuild an existing ML2000 opening without buying new exterior trim.
  • What ships. lockcase, armored front, strike and screw pack, per Corbin Russwin List Price Book No. 42 p.106 Lock Only.
  • What does not ship. Cylinder(s) and thumbturn lever are not included.
  • Grade 1 chassis. A156.13 Series 1000, Operational and Security Grade 1
  • Handing. Specify LH, RH, LHR, or RHR. The lock case is quick reversible.

Lock Body

Corbin Russwin ML2000 ML2020 Privacy Bedroom or Bathroom mortise lock body parts list from the parts manual

Parts list -- click to enlarge

Corbin Russwin ML2000 ML2020 Privacy Bedroom or Bathroom mortise lock body, exploded lockcase from the parts manual

Parts illustration -- click to enlarge

ML2020 lock body parts list (left) and exploded illustration (right). Click either to enlarge. Corbin Russwin ML2000 Series Mortise Lock Parts Manual (Locks Made After January 2016).
Finish with BHMA code 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed
Door Handing LH or RH or RHR or LHR
Brand Corbin Russwin
ANSI Mortise Lock Function F02 - Privacy Bath/Bedroom
Series Corbin Russwin - ML2000 Series
Part Type Lock Body
Corbin Russwin ML2000 Series Mortise Lock Catalog 2026.pdf
View
Corbin Russwin ML2000 Series Mortise Lock Parts Manual (Locks Made After January 2016).pdf
View
Corbin Russwin ML2000 Series Mortise Lock Parts Manual (Locks Made Prior to 2016).pdf
View
Corbin Russwin ML2000 Series Mortise Locks Handing Instructions.pdf
View
Corbin Russwin ML2000 Series Mortise Locks Template (Lockbody Master).pdf
View
Corbin Russwin ML2000 Series Mortise Locks Template (Lockbody Master).pdf
View
