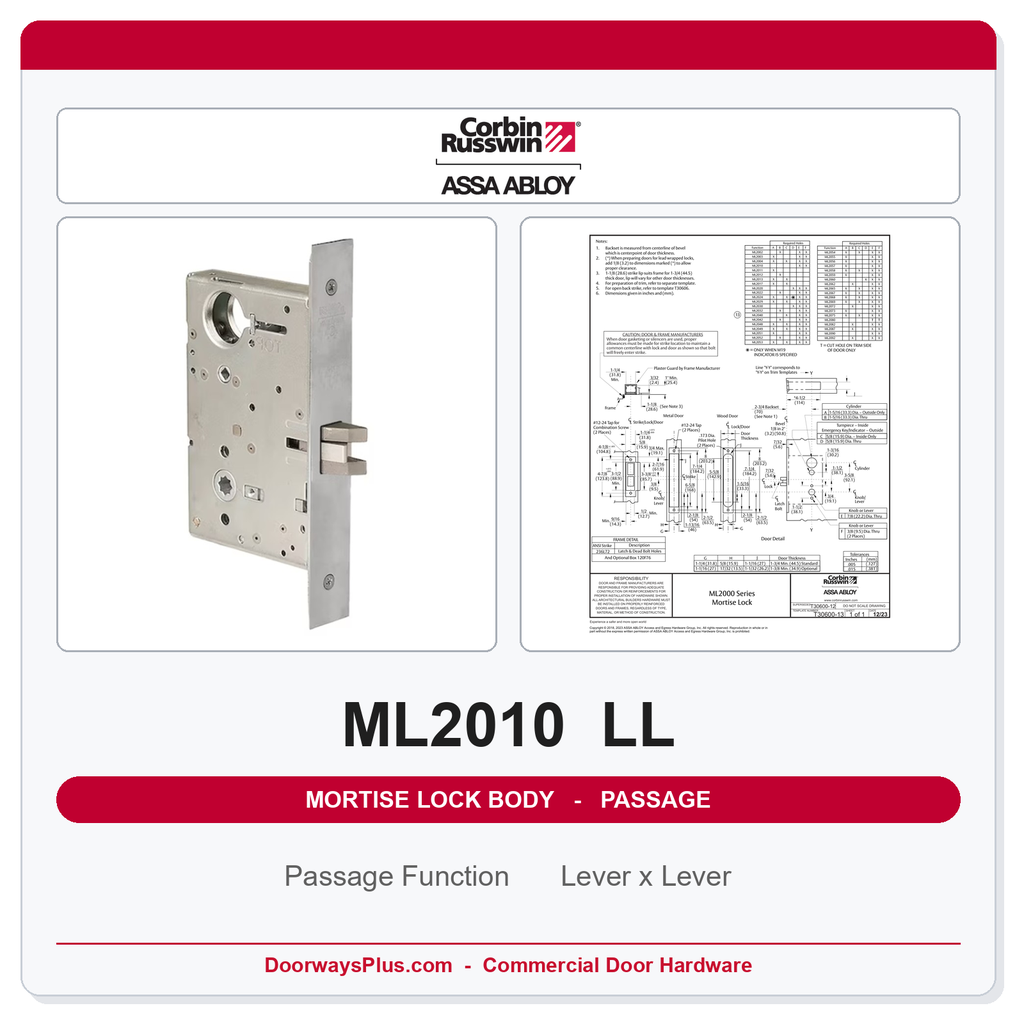

Corbin Russwin LB-ML2010 Mortise Lock Body - Passage or Closet Function (ANSI F01)

Price:

$ 522.98

Free shipping for all order of $700
Place your order by 2:00 PM EST for same day shipping for all items in stock
  2. Shop
  3. Corbin Russwin LB-ML2010 Mortise Lock Body - Passage or Closet Function (ANSI F01)
Dorma F8300B Fire-Rated Rim Exit Device | 36 in Wide Stile | 8000 Series | ANSI Grade 1 | Exit Only
Dorma F8300B Fire-Rated Rim Exit Device | 36 in Wide Stile | 8000 Series | ANSI Grade 1 | Exit Only
$ 699.60
$ 699.60
Corbin Russwin LB-ML2020 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F02)
Corbin Russwin LB-ML2020 Mortise Lock Body - Privacy Bedroom or Bathroom Function (ANSI F02)
$ 606.72
$ 606.72

Corbin Russwin LB-ML2010 Mortise Lock Body - Passage or Closet Function (ANSI F01)

https://www.doorwaysplus.com/web/image/product.template/46054/image_1920?unique=9f796ad
(0 review)

Corbin Russwin LB-ML2010 Mortise Lock Body - Passage or Closet Function

*** Lead Time: 3-5 Days ***

$ 522.98 522.98 USD $ 522.98

$ 522.98

Not Available For Sale

  • Brand
  • Finish with BHMA code
  • ANSI Mortise Lock Function
  • Series
  • Door Handing
  • Part Type

This combination does not exist.

Contact Us
Share :

Corbin Russwin LB-ML2010 Passage or Closet Function Mortise Lock Body (ANSI F01)

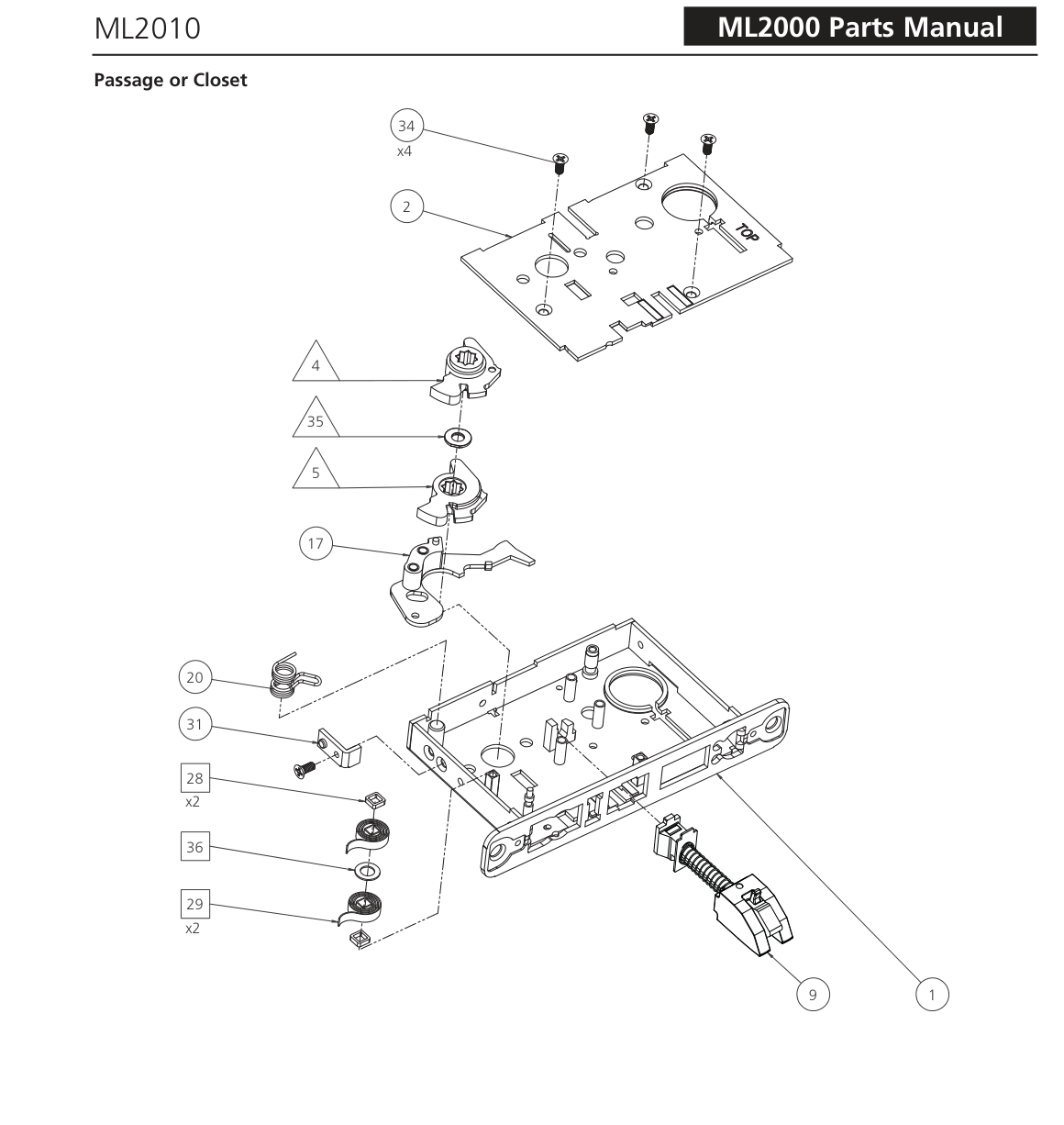

Corbin Russwin ML2010 Passage or Closet function diagram, catalog 45300 12/25

Lock Operation Detailed

  • Latchbolt by grip either side.
  • Both grips always free.

The Corbin Russwin LB-ML2010 is the bare ML2000 Series heavy-duty mortise lock body (case only) configured for the Passage or Closet function ANSI/BHMA F01. Price Book No. 42 page 106 Lock Only sells this as trim key LL (Lever x Lever): it includes the lockcase, armored front, strike and screw pack. Cylinder(s) and thumbturn lever are not included. Order the complete lockset when you need levers, roses, or escutcheons on the same opening.

Passage Function -- What It Means

The Passage or Closet function (ANSI/BHMA F01) retracts the latchbolt by grip from either side. Both grips are always free. There is no cylinder and no lock. This is a non-keyed latchset.

Institutional Grade Features and Benefits

  • Case only -- LL Lever x Lever. This listing is the lockcase, not a complete lockset. Rebuild an existing ML2000 opening without buying new exterior trim.

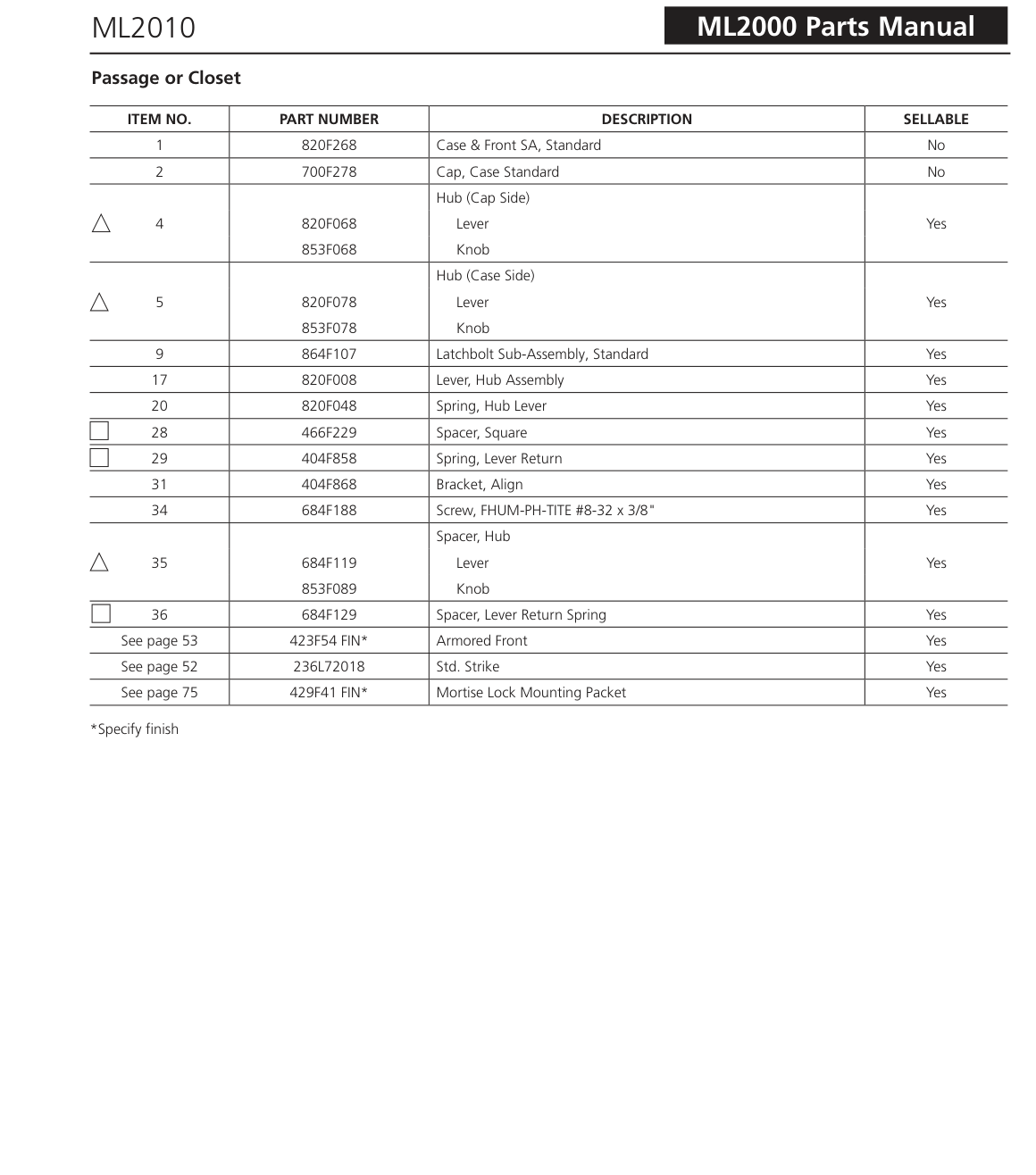

  • What ships. lockcase, armored front, strike and screw pack, per Corbin Russwin List Price Book No. 42 p.106 Lock Only.
  • What does not ship. Cylinder(s) and thumbturn lever are not included.
  • Grade 1 chassis. A156.13 Series 1000, Operational and Security Grade 1
  • Handing. Specify LH, RH, LHR, or RHR. The lock case is quick reversible.

Technical Details

FeatureDetails
Model NumberML2010 LL
FunctionPassage or Closet
ANSI/BHMA functionF01
TypeMortise lock body (case only) -- trim and cylinder ordered separately
Trim keyLL Lever x Lever
Includedlockcase, armored front, strike and screw pack
Not includedCylinder(s) and thumbturn lever are not included.
SeriesCorbin Russwin ML2000
CertificationCertified A156.13 Series 1000, Operational and Security Grade 1.
AccessibilityMeets A117.1 Accessibility Code.
Fire ListingUL/cUL-UL10C Positive Pressure
HandingSpecify LH, RH, LHR, or RHR. The lock case is quick reversible.
Door Thickness1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes, page 81.
Backset2-3/4" (70mm).
LockcaseHeavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
FrontHeavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Armored FrontWrought brass, bronze or stainless steel attached by machine screws to lockcase front.
Latchbolt2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
StrikeWrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.
CylinderCylinder(s) and thumbturn lever are not included.
HubsLL -- Lever x Lever. Standard knob/lever hub is steel, 5/16" (8mm)
WarrantyTen-year mechanical warranty.
Finish with BHMA code 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome or 629 - US32 Polish Stainless or WSP - White Suede Powder Coat or 611 - US9 Bright Bronze or 618 - US14 Bright Nickel or 722 - Black Oxidized Bronze, Oil Rubbed
Door Handing LH or RH or RHR or LHR
Brand Corbin Russwin
ANSI Mortise Lock Function F01 - Passage
Series Corbin Russwin - ML2000 Series
Part Type Lock Body
