8200 Series Sectional Trim

Sargent 8200 Series Mortise Locks with Sectional Trim

This category lists Sargent 8200 Series Grade 1 mortise locksets with sectional trim. Sectional trim mounts the lever and the cylinder on separate roses instead of one long plate. It gives a cleaner, more contemporary look and is a common choice for offices and designed spaces.

Buying guide

1. Pick the function. The four-digit number is the function. Common functions:
   • 8204 storeroom or closet
   • 8205 office or entry
   • 8215 passage
   • 8237 classroom
   • 8238 classroom security (intruder)
   • 8265 privacy
   • 8255 office or entry with deadbolt

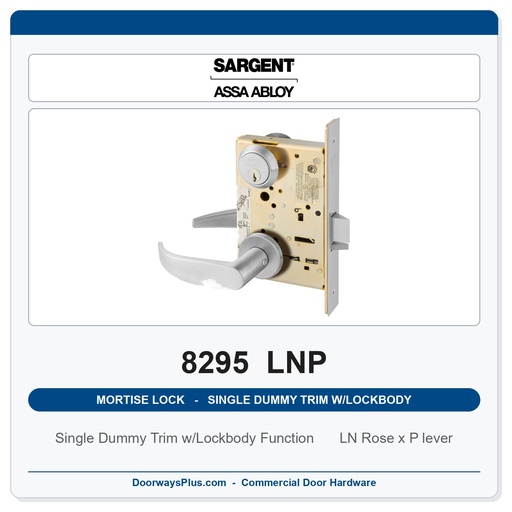

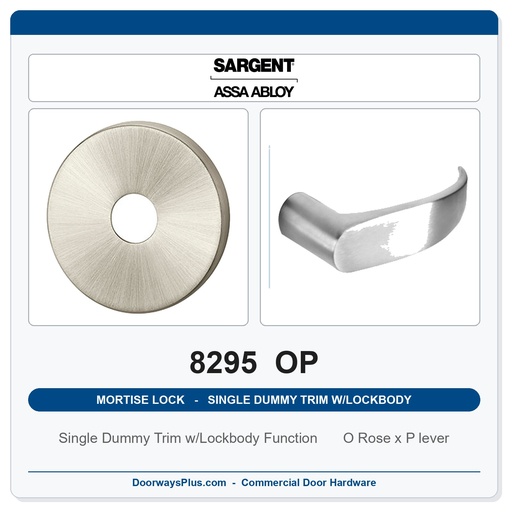

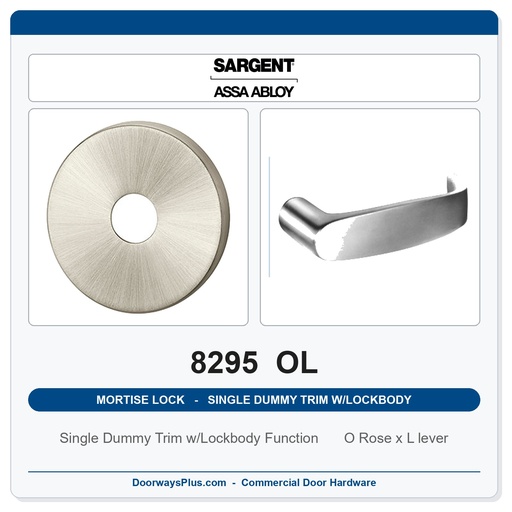

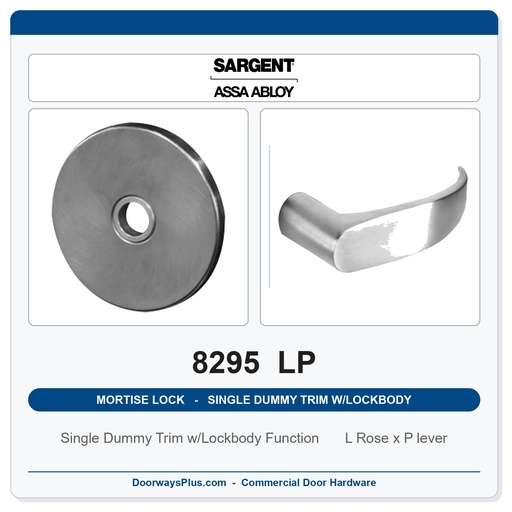

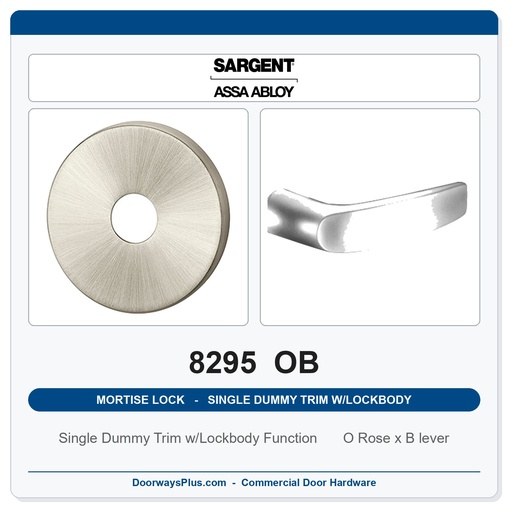

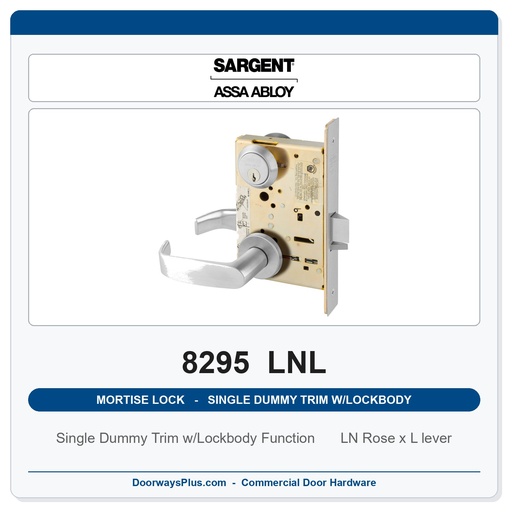

   • Hotel, dormitory, apartment, institutional, holdback, and dummy trim functions (8293 to 8297) are listed too

2. Pick the trim design. The letters after the function number name the rose, then the lever. For example, 8204 LNL is the 8204 function with the LN rose and the L lever.
   • LN: standard rose
   • L: standard rose
   • O: standard rose
   • E: standard rose
   • CR: contemporary rose (beveled edge), for Coastal levers
   • TR: traditional rose (dual radii edge), for Coastal levers
   • Standard levers: A, B, E, F, J, L, P, W
   • Coastal levers (with CR/TR): G Gulfport, S Sanibel, R Rockport, Y Yarmouth
3. Electrified: this category also has 8270 to 8273 fail-safe and fail-secure electromechanical mortise locks. In the 8200 Series, the 56- prefix means motorized electric latch retraction (for example 56-8204). Power reaches the lock through a power transfer hinge or electrical power transfer at the frame. See the 8200 Series Electrified Trim category for more electrified options.
4. Confirm the details on the product page. Check hand, finish, and options on each listing before you order.

Trim and lever visual reference

Roses (shown in 26D satin chrome)

Studio Collection roses (8200 Series)

Coastal Series levers are not available with CO and TO roses.

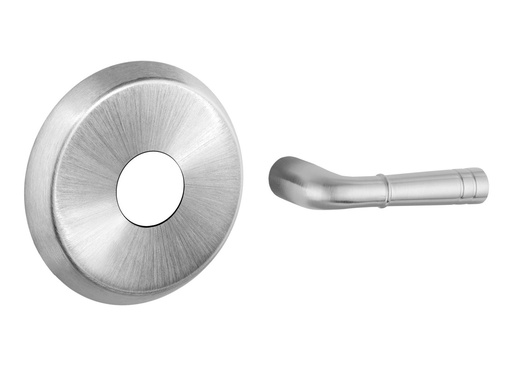

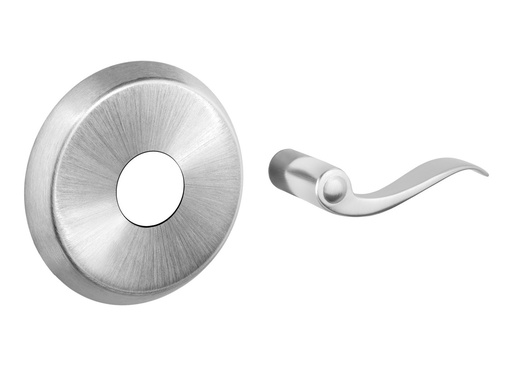

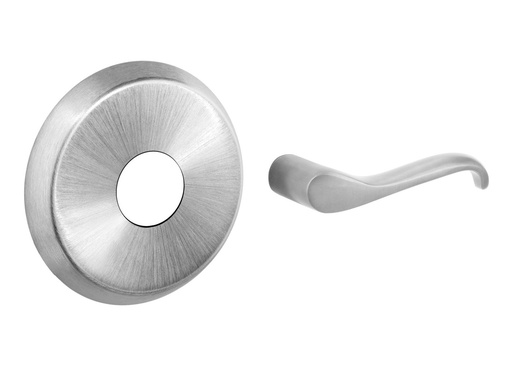

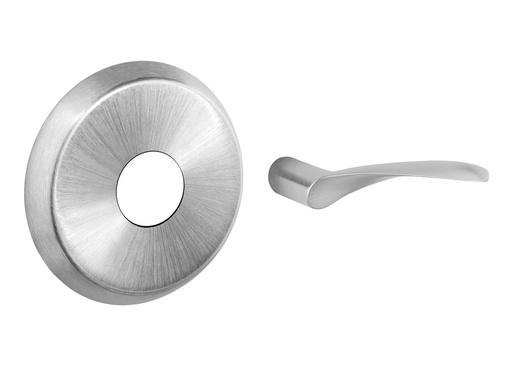

Levers (catalog images)

Lever designs J, L and P have lever returns within 1/2" (13mm) or less of the door face and meet the California State Reference Fire Code. Coastal Series levers (G, S, R, Y) are solid cast brass and are not available with CO and TO roses.

Example: 8204 CRG = 8204 function + CR rose + G lever. 8204 LNL = 8204 function + LN rose + L lever.

Sargent certifies the 8200 Series to ANSI/BHMA A156.13 Grade 1 (operational and security) with standard trims, and lists it UL and cUL for fire doors up to 3-hour A label.

Need the full function guide? The 8200 Series category has a function selection table.

Shipping: Orders placed by 2:00 PM ET ship the same day for in-stock items only. Many popular configurations ship from the factory in about 5 business days. Orders with a specific finish, lever, or option configuration are built to order and typically ship in 3–4 weeks. Lead time is shown on each product page.
