8200 Series Escutcheon Trim
Sargent 8200 Series Mortise Locks with Escutcheon Trim
This category lists Sargent 8200 Series Grade 1 mortise locksets with escutcheon trim. Escutcheon trim uses a full-length plate behind the lever. It covers more of the door face, which helps on renovation work where old holes need to be hidden, and it is a common pick for schools and hospitals.
Buying guide
- Pick the function. The four-digit number is the function. Common functions:
- 8204 storeroom or closet
- 8205 office or entry
- 8215 passage
- 8237 classroom
- 8238 classroom security (intruder)
- 8265 privacy
- 8255 office or entry with deadbolt

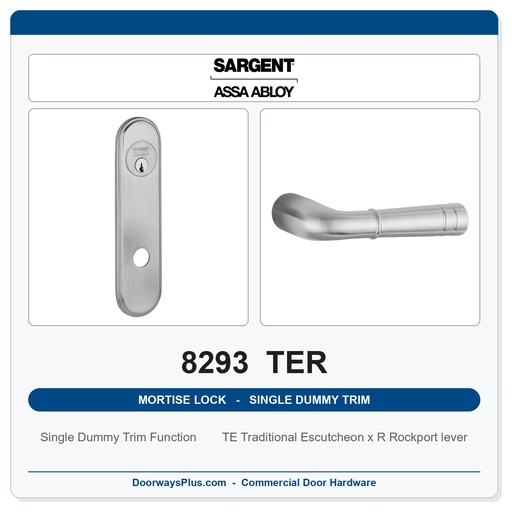

- Hotel, dormitory, apartment, institutional, holdback, and dummy trim functions (8293 to 8297) are listed too

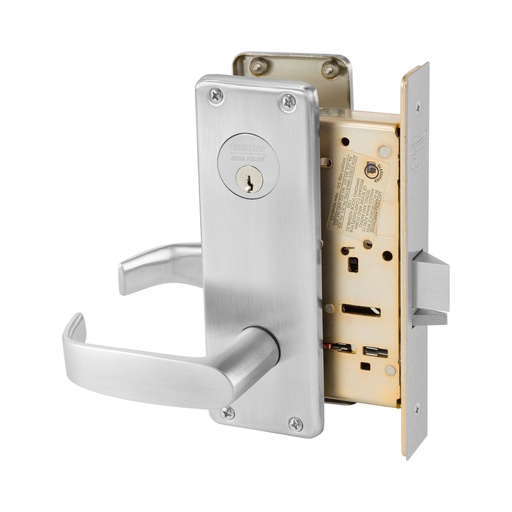

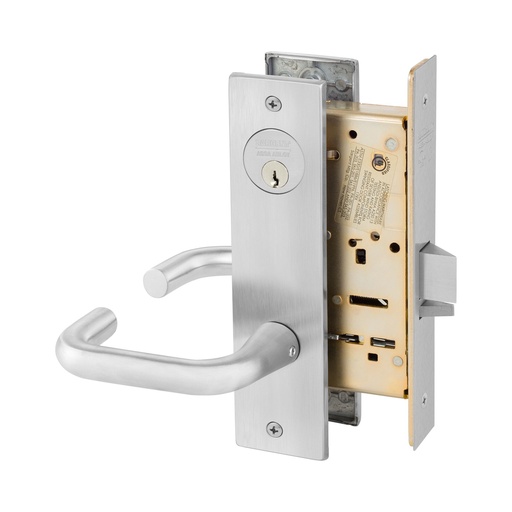

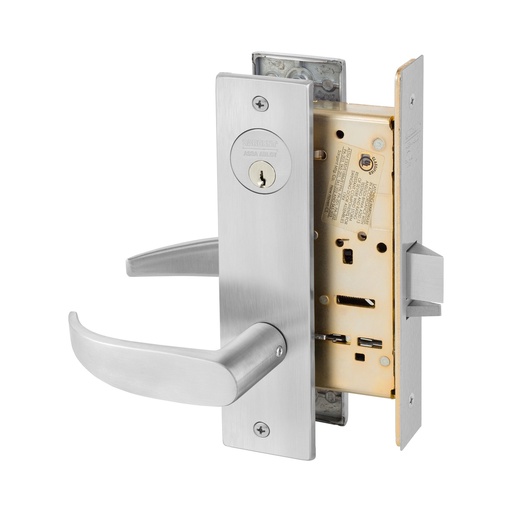

LE1L trim
LE1L trim
LE1L trim

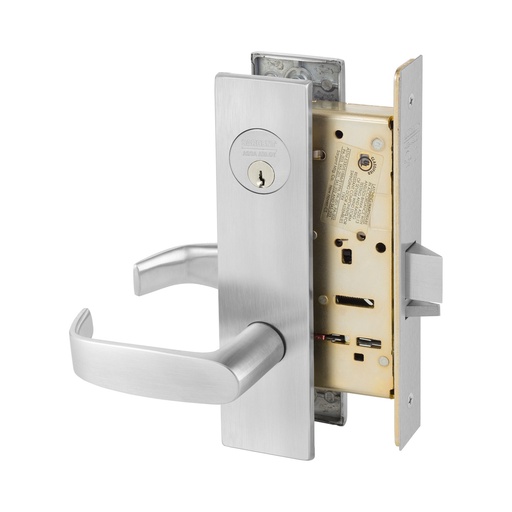

LSL trim
- Pick the trim design. The letters after the function number name the escutcheon, then the lever. For example, 8204 LE1B is the 8204 function with the LE1 escutcheon and the B lever.

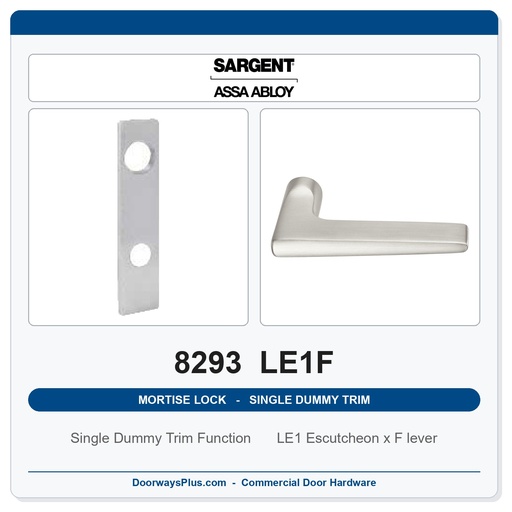

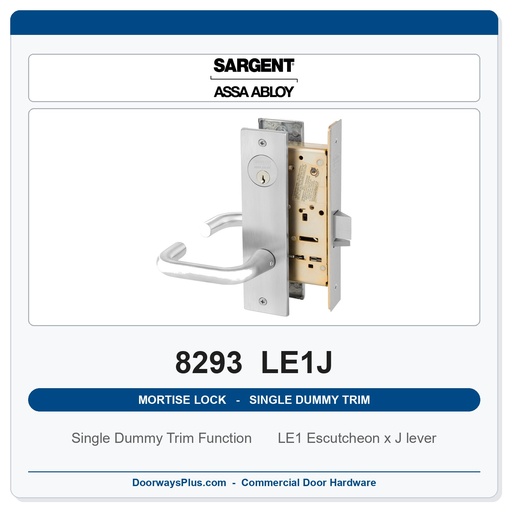

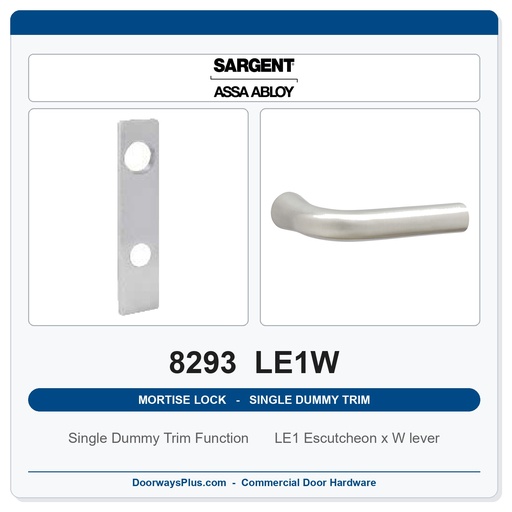

- LE1: cast escutcheon
- CE: contemporary escutcheon (beveled edge)

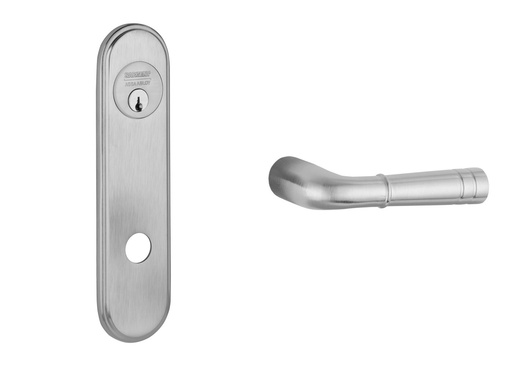

- TE: traditional escutcheon (dual radii edge)
- LW1: wrought escutcheon
- WT: heavy wrought escutcheon, surface mounted both sides
- LS: forged security trim
- FE: freewheeling trim for areas prone to vandalism
- Standard levers: A, B, E, F, J, L, P, W
- Coastal levers (with CE/TE): G Gulfport, S Sanibel, R Rockport, Y Yarmouth
- Confirm the details on the product page. Check hand, finish, and options on each listing before you order.
Trim and lever visual reference
Escutcheons (shown in 26D satin chrome)
Standard, Coastal & Studio levers. LE2: concealed inside screws, standard levers only
Standard levers only
Surface mounted both sides; standard levers only
Cylinder protected; standard levers only; not with functions 70–73
Beveled edge; plate only shown
Dual radii edge; plate only shown
Lever swings free when locked; for vandal-prone areas
LS is not available with some cylinder options. Catalog image used for FE (no factory photo).
Levers (catalog images)

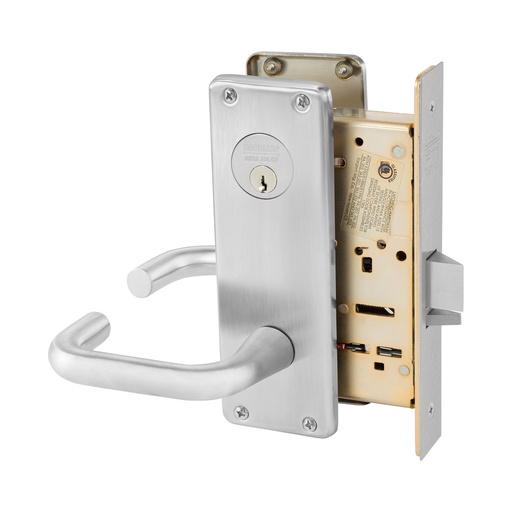

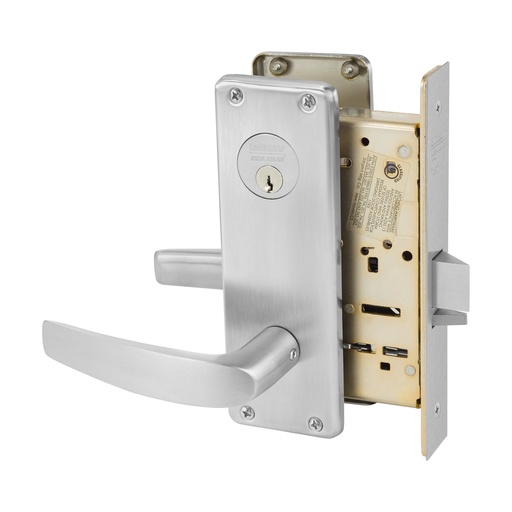

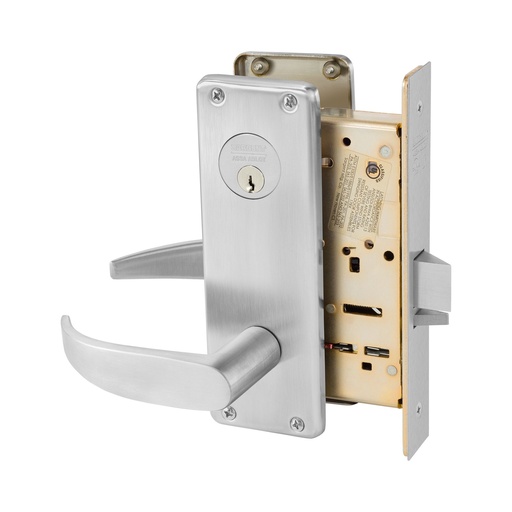

Standard lever
Standard lever
Standard lever
Standard lever
Standard lever
Standard lever
Standard lever
Standard lever

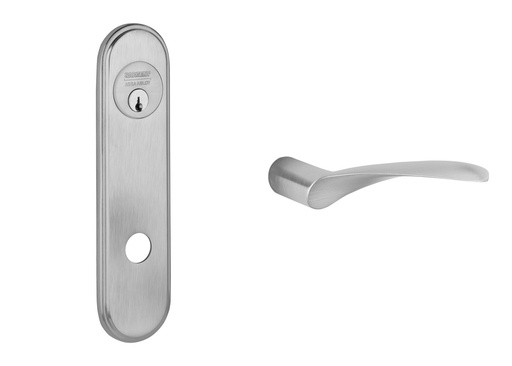

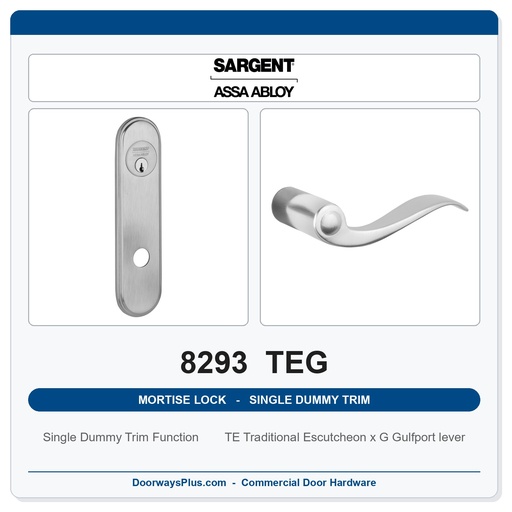

Gulfport (Coastal)

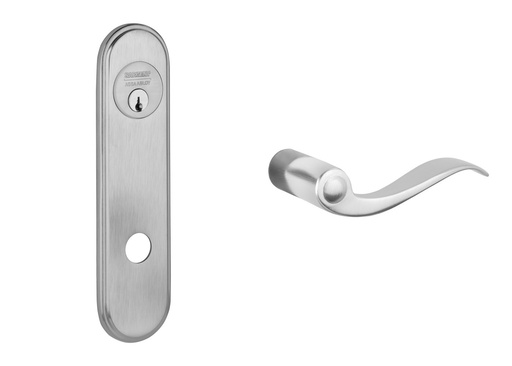

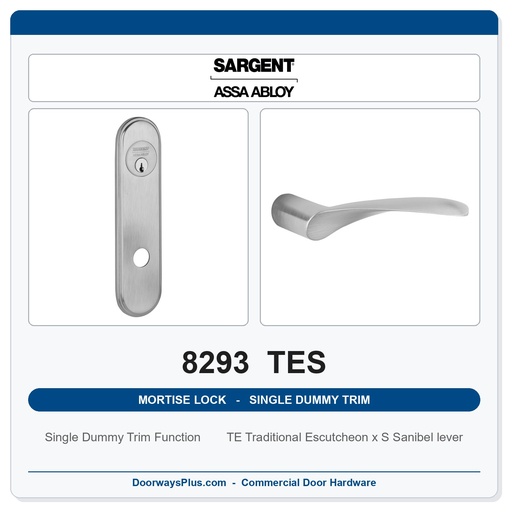

Sanibel (Coastal)

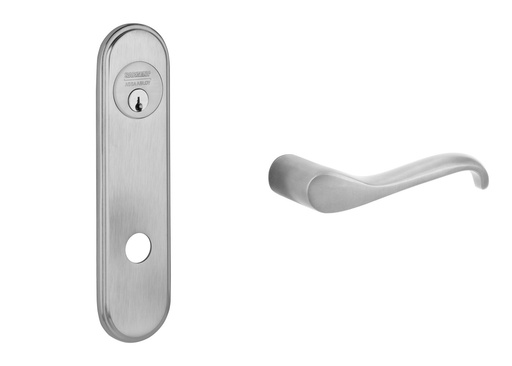

Rockport (Coastal)
Yarmouth (Coastal)
Lever designs J, L and P have lever returns within 1/2" (13mm) or less of the door face and meet the California State Reference Fire Code. Coastal Series levers (G, S, R, Y) are solid cast brass and are not available with CO and TO roses.
Example: 8204 CEG = 8204 function + CE escutcheon + G lever. 8265 LE1L = 8265 function + LE1 escutcheon + L lever.
Sargent certifies the 8200 Series to ANSI/BHMA A156.13 Grade 1 (operational and security) with standard trims, and lists it UL and cUL for fire doors up to 3-hour A label.
Need the full function guide? The 8200 Series category has a function selection table.
Shipping: Orders placed by 2:00 PM ET ship the same day for in-stock items only. Many popular configurations ship from the factory in about 5 business days. Orders with a specific finish, lever, or option configuration are built to order and typically ship in 3–4 weeks. Lead time is shown on each product page.
