NGP HS-1 GapGuard Steel Hinge Shim | Steel
The National Guard Products HS-1 is a GapGuard steel hinge shim used to restore required door-to-frame clearances. NGP lists it as Steel Hinge Shims. Catalog GAP22. Dual purpose: full 42 inch for continuous hinges, or break-off 3-1/2 inch sections for butt hinges. Pressure-sensitive adhesive pads included. Removable, re-stickable, and stackable. Sold in a box of ten.
Product Features
- Use to Shim Hinges to Achieve Required Clearances Between Door and Frame

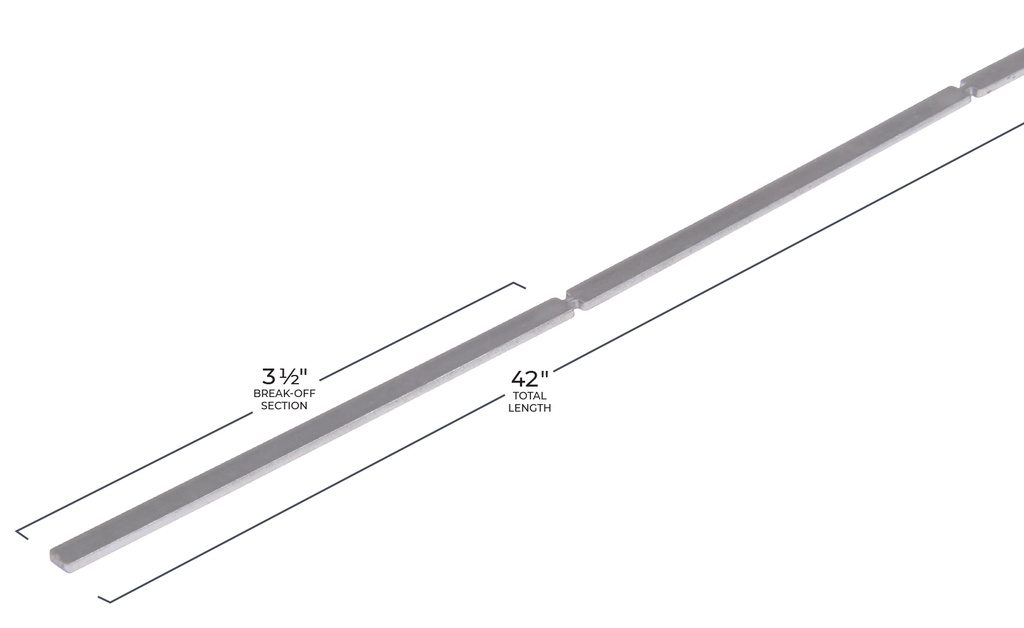

- Dual Purpose Shim: Use Full 42" Length for Continuous Hinges, Break-Off 3-1/2" Sections for Butt Hinges
- Steel Fire-Rated Shims
- Pressure Sensitive Adhesive Pads Included for Holding in Place During Installation
- Removable, Re-Stickable, and Stackable
- Certified for use in US and Canada
- Available in Boxes of Ten
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors and Wood fire doors rated up to 90 minutes.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP HS-1 |
| Type | steel hinge shim |
| Manufacturer | National Guard Products |
| Factory subtitle | Steel Hinge Shims |

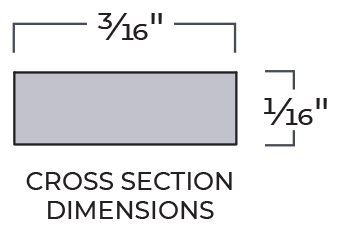

| Profile | 42 inch continuous; 3-1/2 inch break-off for butts |
| Mounting | Pressure-sensitive adhesive pads |
| Pack | Box of 10 |
| Fire listing | UL10B and UL10C up to 90 minutes as printed (no file number printed) |
Ordering and Lead Time
Sold as a box of 10. 42 inch with 3-1/2 inch break-off. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Housing Finish | Steel |
| Kit Includes | box of 10 shims + adhesive pads |
| Fire Rated | Fire Rated |
| Mounting Type | Adhesive Applied |
