NGP HP90-MORT GapGuard Mortise Prep Filler | Primer Gray

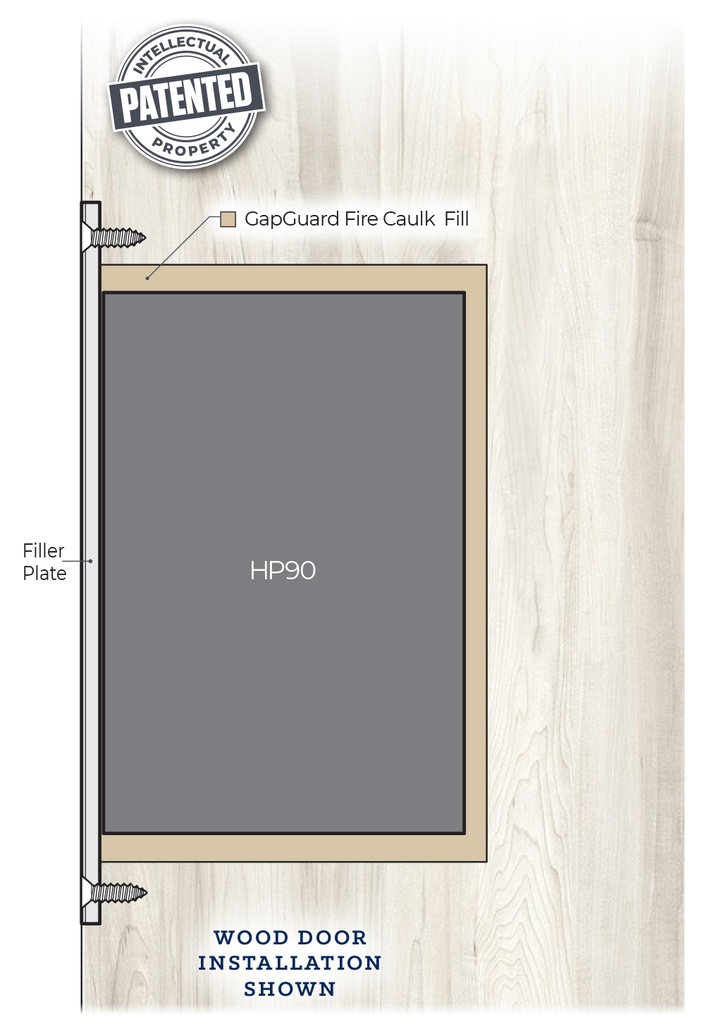

When a fire door keeps its rating but the hardware prep is the wrong cavity, replacing the door is not the only repair. The National Guard Products HP90-MORT is a GapGuard mortise hardware prep filler. NGP lists it as Mortise Hardware Prep Filler. Catalog GAP14: certified on hollow metal and wood fire doors up to 90 minutes. Primer gray powder-coat plates, UL mark embossed. GapGuard Fire Caulk is in the kit; install it as the instructions require to retain the listing. Patented US 11,959,332 B2.
Product Features
- UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps
- Application Certified on Both Hollow Metal and Wood Fire-Rated Doors - up to 90 Minutes
- Certified for Filling Mortise Lockset Cavities
- Product consists of: HP90 - 4" ? 6" Fire-Rated Panel, Steel Filler Plates: (Powder Coated Primer Gray, Embossed With UL Mark), HP90-MEF1258, Edge Filler Plate, HP90-SF4875, Strike Filler Plate
- Hardware Pack: #10-32 x 1-3/4" FHPH SS Machine Screw, #8 x 3/4" FHPH SS Combo Screw, #12 x 1" FHPH SS Combo Screw, #8 x 3/4" FHPH SS SMS, #12 x 1" FHPH SS SMS
- GapGuard Fire Caulk (see Installation Instructions)
- Sizes: Mortise Lockset Hardware Prep
- Certified for use in US and Canada
- Patented: US Patent US11,959,332 B2
- Finish: Primer Gray, Powder Coat
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP HP90-MORT |
| Type | mortise hardware prep filler |
| Manufacturer | National Guard Products |
| Factory subtitle | Mortise Hardware Prep Filler |
| Finish on this listing | Primer Gray |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory up to 90 minutes as printed (no file number printed) |
| Caulk | GapGuard Fire Caulk included in the kit |
| Pack | One set as listed by NGP |
Ordering and Lead Time
Sold as one HP90-MORT set. Caulk is in the kit. Made to order. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Housing Finish | Primer Gray |
| Kit Includes | fire-rated panels, filler plates, hardware, caulk |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
