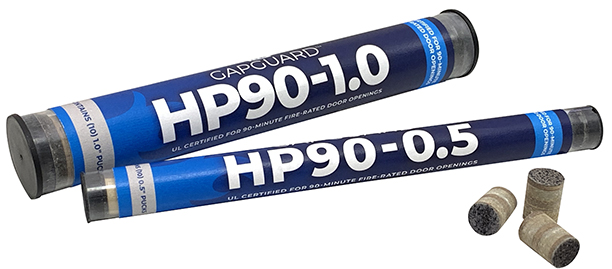

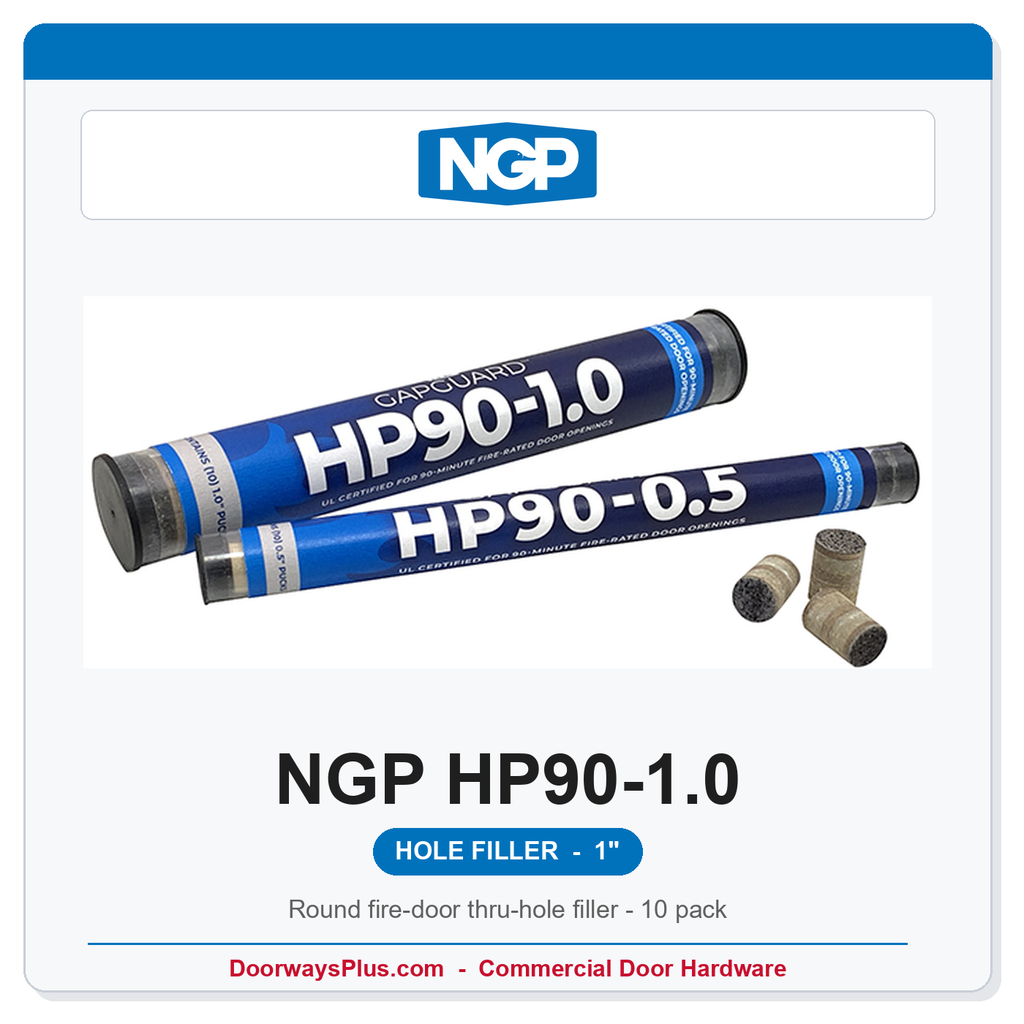

NGP HP90-1.0 GapGuard Thru-Hole Prep Filler | Primer Gray
The National Guard Products HP90-1.0 is a GapGuard round hardware-prep filler for thru-holes. NGP lists it as 1" Diameter Hardware Prep Filler (10 Pack). Catalog GAP20. Sold as a 10 pack. Factory requires GapGuard Fire Caulk, sold separately, to retain the listing. Certified on hollow metal and wood fire doors up to 90 minutes.
Product Features
- UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps
- Application Certified on both Hollow Metal and Wood Fire-Rated Doors, up to 90 Minutes
- Certified for Use in Combination With Gap Guard Fire Caulk to Fill Thru-Holes Between ?" Diameter and 2-1/8" Diameter
- Certified for Use in US and Canada
- Requires Use of GapGuard Fire Caulk (sold separately)
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP HP90-1.0 |
| Type | 1" diameter hardware prep filler, 10 pack |
| Manufacturer | National Guard Products |
| Factory subtitle | 1" Diameter Hardware Prep Filler (10 Pack) |
| Pack | 10 pack |
| Caulk | GapGuard Fire Caulk required, sold separately |
| Fire listing | UL10B and UL10C up to 90 minutes as printed (no file number printed) |
Ordering and Lead Time
Sold as a 10 pack. Order GapGuard Fire Caulk separately. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Housing Finish | Primer Gray |
| Kit Includes | 10 round fillers; caulk sold separately |
| Fire Rated | Fire Rated |
