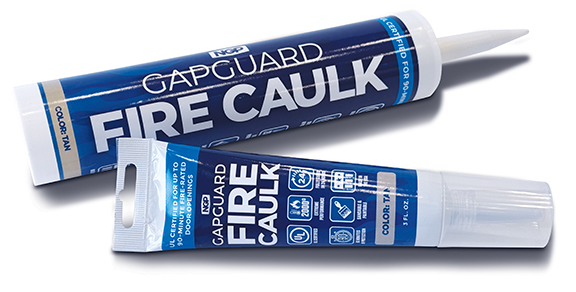

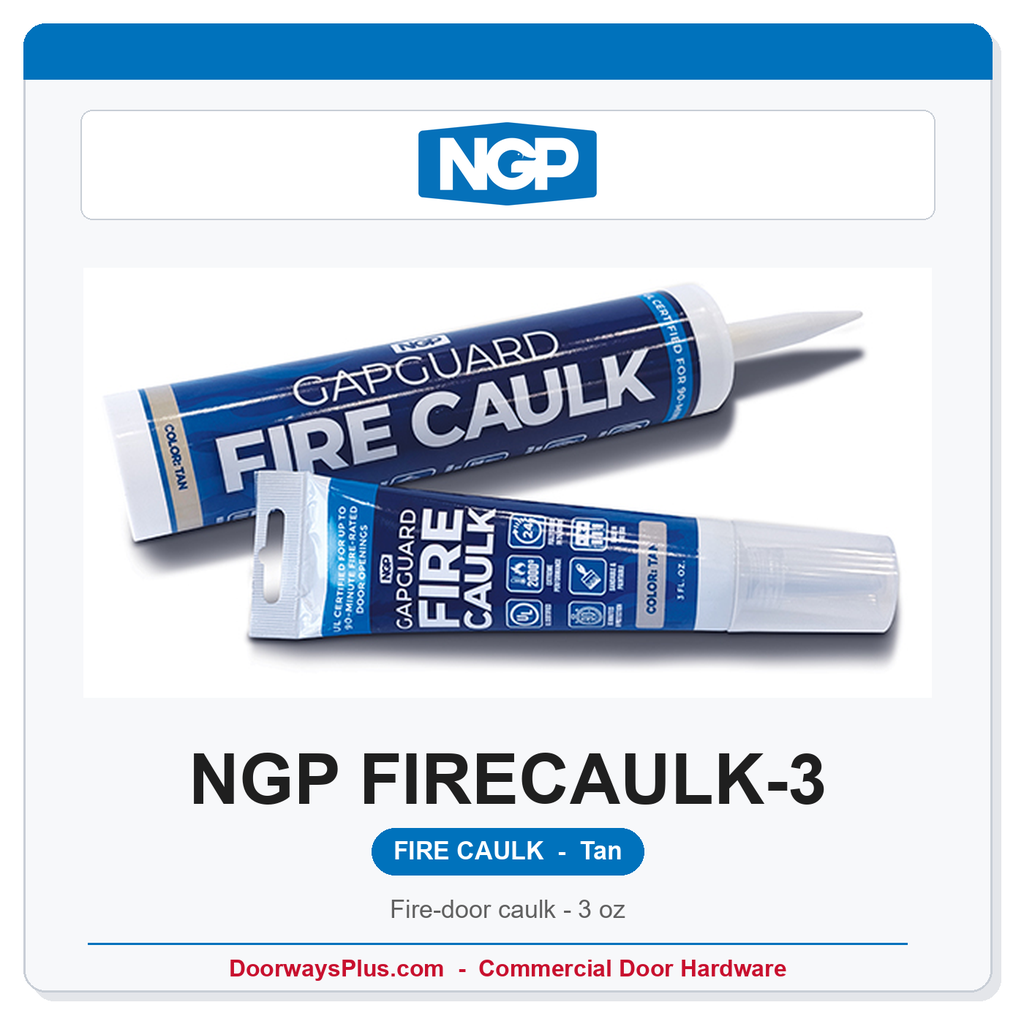

NGP GapGuard Fire Caulk 3 oz, Case of 6 | Tan
GapGuard Fire Caulk seals thru-holes and is required with wood-door GAP90-ME and HP90-MORT / FB / CYL installs. The National Guard Products listing is GapGuard Fire Caulk 3 oz.. Catalog GAP20. Factory: fill up to a 1/2 inch thru-hole on 60- and 90-minute doors, up to a 1 inch thru-hole on 20- and 45-minute doors, and gaps up to 3/8 inch between floor and shimmed frame legs. Indoor use only. Tan. Shelf life 12 months. This listing is 3.0 oz tubes, 6 per box.
Product Features
- UL Certified Solution for Fire Doors and Frames to Seal Thru-Holes as well as in Combination With Other Hardware Prep Filler Solutions
- Application Certified on both Hollow Metal and Wood Fire-Rated Doors, up to 90 Minutes
- Can be Used to Fill up to a 1/2" Diameter Thru-Hole on 60- and 90-Minute Fire Doors
- Can be Used to Fill up to a 1" Diameter Thru-Hole on 20- and 45-Minute Fire Doors
- Can be Used to Fill Gaps up to 3/8" Between Floor and Shimmed Frame Legs, Rated up to 90 Minutes
- Fully Cured in 24 Hours
- Can be Sanded and Painted after Full Cure
- Indoor Use Only
- Shelf Life is 12 Months
- 3.0 oz. Tubes, 6 per Box
- Certified for Use in US and Canada
- Color: Tan
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP GapGuard Fire Caulk |
| Type | fire-door fire caulk |
| Manufacturer | National Guard Products |
| Factory subtitle | GapGuard Fire Caulk 3 oz. |
| Color | Tan |
| Pack | 3 oz tube, case of 6 |
| Thru-hole | 1/2 in on 60/90 min; 1 in on 20/45 min (factory) |
| Frame/floor gap | up to 3/8 inch |
| Use | Indoor only; 12-month shelf life |
| Fire listing | UL10B and UL10C up to 90 minutes as printed (no file number printed) |
Ordering and Lead Time
This listing is the 3 oz pack. Indoor use only. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Housing Finish | Tan |
| Kit Includes | 3.0 oz |
| Fire Rated | Fire Rated |
