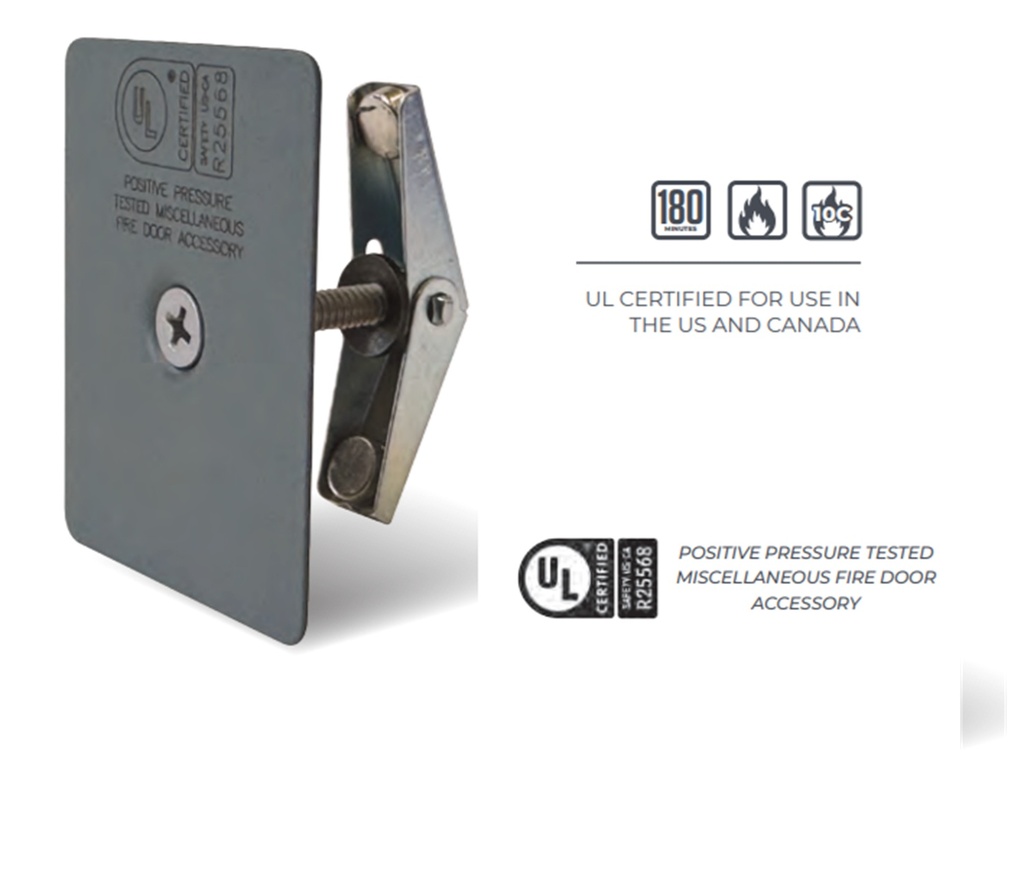

NGP FP180-225 GapGuard 180-Min Frame Patch Kit | Primer Gray Powder Coat
When the frame face is already cut or damaged, a stop extender is the wrong kit. The National Guard Products FP180-225 is the GapGuard frame patch for steel fire doors and frames rated up to 180 minutes. NGP lists it as Frame Patch Kit. Catalog GAP16. Each patch is 24-gauge steel, 1-13/16 x 2-15/16 inch, primer gray powder coat, UL mark embossed. Maximum cutout concealed is 2-1/2 square inches. Sold as a box of 5 complete patches with the hardware pack.
Product Features
- Application Certified for Steel Fire Doors and Frames Rated up to 180 Minutes
- Maximum Area of Cutout Concealed by Frame Patch is 2-1/2 Sq. In.
- Allowed to be Used on Steel Frames up to 14 Ga. Thickness
- Allowed to be Used on Steel Doors up to 16 Ga. Thickness
- Must Maintain Adequate Coverage on All Sides of Cutout
- Adhesive Tape May be Used in Addition to Mechanical Fastener
- Product consists of: Metal Plate, 24 Ga. Steel, Embossed with UL Mark
- Hardware Pack: 10-24 x 1.5 F8-P-SS-ST Washer, Spring Lock Anchor Toggle, 3/16" Magnets 1/4" x 3/8" OD
- Size 1-13/16" x 2-15/16"
- Box of 5 ea. Complete Patches
- Finish: Primer Gray, Powder Coat
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal Fire Doors and Frames rated up to 3 Hours.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal Fire Doors and Frames rated up to 3 Hours.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP FP180-225 |
| Type | steel fire-door frame patch kit |
| Manufacturer | National Guard Products |
| Factory subtitle | Frame Patch Kit |
| Plate | 24 ga steel 1-13/16" x 2-15/16", primer gray powder coat |
| Pack | Box of 5 complete patches + hardware pack |
| Max cutout | 2-1/2 square inches |
| Fire listing | UL10B and UL10C on steel fire doors and frames up to 180 minutes as printed (no file number printed) |
Ordering and Lead Time
Sold as a box of 5 complete patches. Primer gray powder coat. Lead time: 10-15 business days.
| Brand | National Guard Products |
| Housing Finish | Primer Gray Powder Coat |
| Housing Size | 24 ga 1-13/16" x 2-15/16" patch |
| Kit Includes | 5 patches + hardware pack |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
