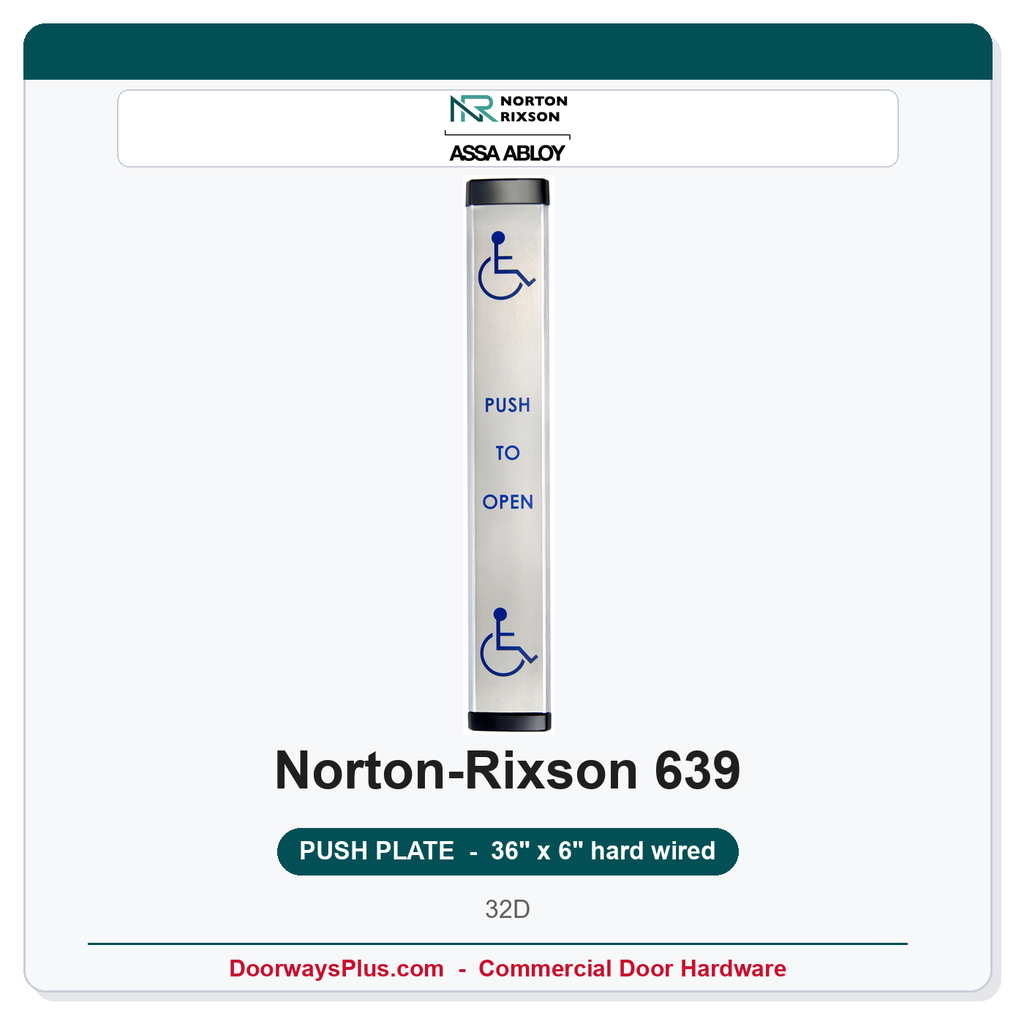

Norton 639 Low Profile Push Plate — 36 x 6, Hard Wired, Finish 32D

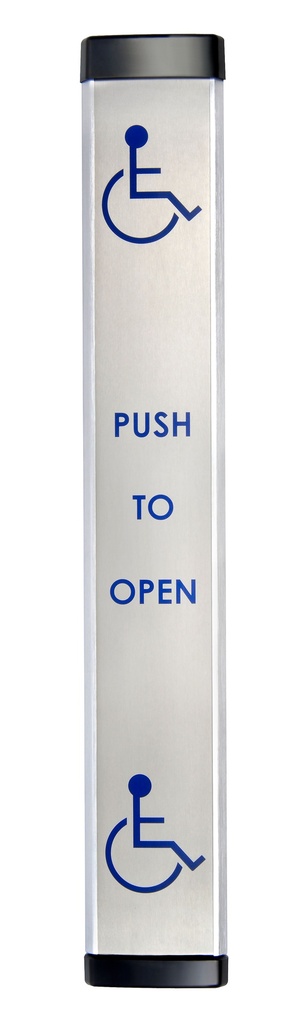

The Norton 639 Low Profile Push Plate is a hard-wired, large-format actuator plate designed for use with Norton low-energy automatic door operators. Measuring 36 inches wide by 6 inches tall with a shallow 1-inch depth profile, this plate mounts flush to walls or door frames where minimizing protrusion is a priority. The face is stainless steel in finish 32D (satin stainless), providing durability and a clean, institutional aesthetic suited to healthcare, education, and commercial facilities. Note: The 639 is the hard-wired model. Do not confuse it with the Norton 638, which is the RF 433 MHz wireless counterpart — the 639 requires a direct wired connection to the operator system.
Key Features & Benefits
- Large Actuator Surface (36 x 6): The oversized plate offers a generous activation area, reducing the precision required by users — particularly beneficial for ADA-accessible entrances and high-traffic corridors.
- Low Profile, 1-Inch Depth: The shallow housing keeps the plate close to the wall surface, reducing snagging hazards in tight corridors and meeting architectural clean-line requirements.
- Hard-Wired Connection: Provides a reliable, battery-free signal path to compatible Norton low-energy operators — eliminating the need for RF pairing, frequency management, or battery maintenance associated with wireless models.
- Stainless Steel Face, 32D Finish: Satin stainless construction resists corrosion, withstands repeated contact in institutional environments, and coordinates with standard commercial door hardware finishes.
- Compatible with Norton Low-Energy Operator Lines: Designed for use with Norton operator systems including the 4500, 5200, 5700, 5800, 6200, and 6300 series low-energy operators, which carry a 2-year warranty.
Typical Applications
- Healthcare facilities — hospital corridors, patient room entries, and pharmacy counters
- Educational institutions — classroom wings, administrative entries, and accessible restroom corridors
- Commercial office buildings — lobby, elevator lobby, and ADA-designated accessible routes
- Government and municipal buildings requiring code-compliant accessible activation
Technical Details
| Feature | Details |
|---|---|
| Manufacturer | Norton (Norton-Rixson / ASSA ABLOY) |
| Model Number | 639 |
| Part Type | Low Profile Push Plate Actuator |
| Connection Type | Hard Wired |
| Plate Dimensions | 36 in x 6 in |
| Depth | 1 inch |
| Face Material | Stainless Steel |
| Finish | 32D (Satin Stainless) |
| Compatible Operator Series | Norton 4500, 5200, 5700, 5800, 6200, 6300 low-energy operators |
| Operator Warranty | 2-year (on compatible Norton operator series) |
| Sister Model Note | Norton 638 = RF 433 MHz wireless version; 639 = hard-wired version |
Ordering and Lead Time
Lead Time: 1-3 weeks
| Brand | Norton |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
